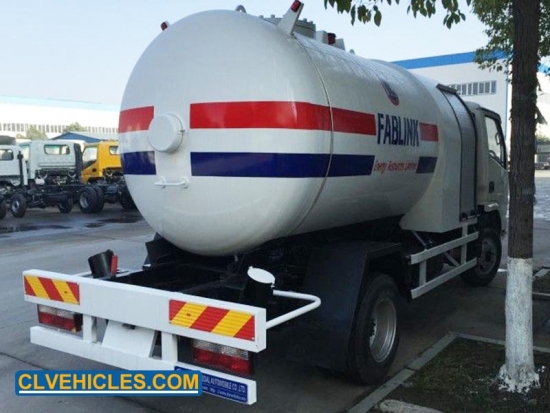

Dongfeng 5500 Liter Propane Storage Tank Truck

For the safe usage of the LPG products, we process several tests for the LPG tanks such as welding line density test, thermal treatment, hydra press measurement, ray nondestructive test, etc.

  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CL5250GJBC5
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD32800
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

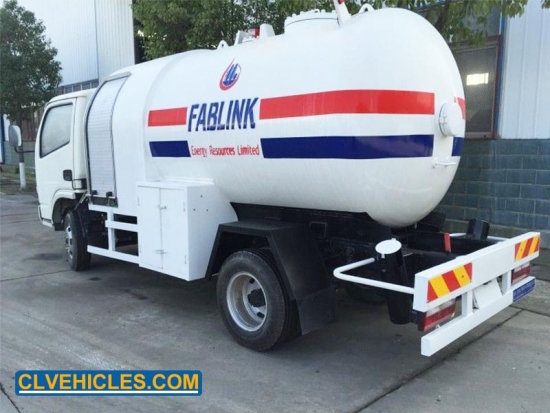

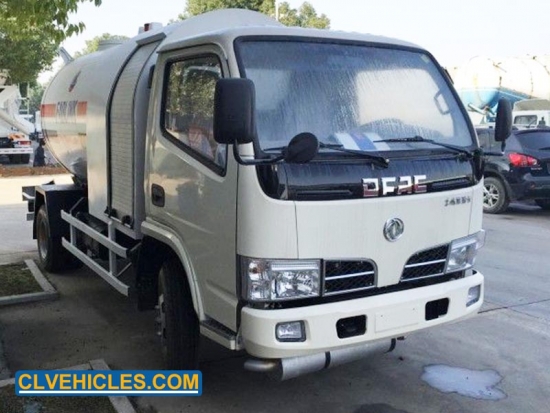

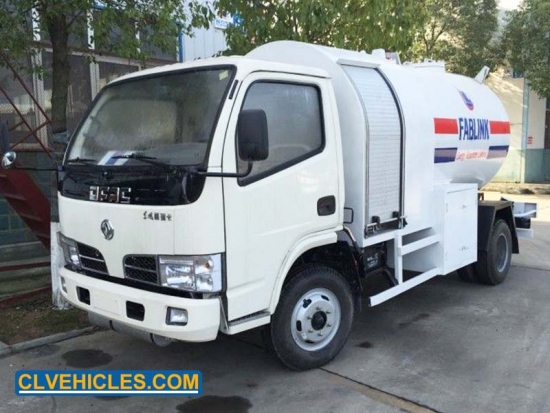

Dongfeng 5500 Liter Propane Storage Tank Truck


The LPG tanker material uses Q345R steel for high pressure tanker, which is anti-corrosive and keeps a good stability at low or high temperature.
LPG tanker trucks are basically equipped with safety valve, emergency shut-off valve, thermometer, pressure gauge for the safety use.


Quick Details



LPG tank truck size 5900*2045*2600

Propane tank capacity

5500 liter

Design temperature

50℃

Design pressure

1.77Mpa

Leak test pressure

1.77Mpa

Hydraulic test pressure

2.3Mpa


Applications


LPG tank truck is used to transport liquefied petroleum gas, such as propane, liquid ammonia, dimethyl ether (DME), isobutene, etc.



Competitive Advantages



Our LPG tanker truck is made of Q345R steel which is specialized for pressure vessel  100% X-ray inspection

Emergency shut off valve fore safety

Double side for discharge and loading ,double tool box and valve box

LPG dispenser optional with automatic fault detection and overload protection


Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters


Truck Specification

Chassis model

CL5060GYQD

Cab

Dongfeng single row cab, with power steering.,without a/c

Driving Type

4*2 Left hand driving

Max Speed (km/h)

99

Overall dimension(mm)

5900*2045*2600

GVW( kg)

7495

Mass in working order( kg)

5185

Wheelbase(mm)

3300

F/R track base(mm)

1750/1586

F/R overhang(mm)

1180/1690

Approach/Departure Angel

22/23

Tire

7.50-16 (6+1)

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

5-speed

Bridge

Front axle

2T

Rear axle

4T

Enging

Model

CY4100Q

Fuel Type

Diesel fuel

Type

Water-cooled four-stroke,, direct injection, turbocharged

Exhaust(ml)

3856

Max output power/rotate speed (hp /rpm )

95/3200

Braking  system

Service Brake

Compressed air brake

Park Brake

Spring energy

Auxiliary brake

engine exhaust brake

Eletric system

12v

LPG TANK  specification

Design specific gravity

0.42 Kg/L

Tankmaterial

Q345R

TankDesigned thickness

End cover

9.35mm

Tank body

9.37mm

Design temperature

500C

working temperature

20~500C

Corrosion allowance

1.0mm

Designed pressure

1.77Mpa

Hydraulic test pressure

2.3MPa

Leak test pressure

1.77Mpa

Heat treatment

Wholly get rid of stress

Use Years

Ten years

LPGdispenser

Function

  Dispenser LPG to LPGcylinder or other LPG truck

Flow rate

10 ~ 60L/min

Max working pressure

2.5Mpa

LPG pump

Function

Delivery and pump LPG

Flow rate

30-80L/min

Working pressure

1.60Mpa

Liquid level meter

Type

Rotary

Model

YWG-2.5

Nominal pressure

PN2.5Mpa

Surveying range

50-2300mm

Precision

2.5Grade

Emergencycutting valve

Type

Gas phase

QCJ43F-2.5-8

Liquid phase

QCJ43F-2.5-7

Nominal pressure

PN2.5Mpa

Nominaldiameter

Gas phase

DN25mm

Liquid phase

DN50mm

Operation way

Fluid pressure

Closing time

≤10 Sec

Melting switch temperature

70±5°C

Safe valve

Type

A412F-2.5-16

Model

Inner full lift

Nominal pressure

PN2.5 MPa

Nominal diameter

DN50

Opening pressure

1.7 MPa

Closing pressure

1.86-1.94MPa

Complete opening pressure

<2.12 MPa

Loading and unloading device

Valve type

Gas phase

YKAG-3.3-6

Liquid phase

YKAG-3.3-7

Model

Quick tie-in

Nominal Diameter

Gas phase

DN25mm

Liquid phase

DN50mm

Pressure meter

YN-100T

Temperature gauge

WTQ-280

Other equipment

1.double tool box

2.double valve box

3.doubleEmergency Cut-off Valve

4.single pipeliquid out

5.both side loading andunloading

SEND A MESSAGE
CLVEHICLES is one of the experienced truck manufacturer, export various special trucks, accept custom srevice, welcome to visit our factory and showroom to know more about us.
( This * is Required )
If you have questions or suggestions, please leave us a message,we will reply you as soon as we can!
Related Product
lpg road tanker

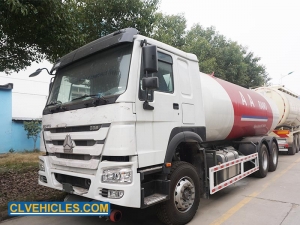

Howo 25000 liter lpg road tanker

The basic equipment of the lpg gas tank truck includes liquid level indicator, gas dispenser, inlet and outlet, pump box, tool box, safety valve, temperature meter, pressure meter, emergency shut valve, 1 pcs spare tire, fire extinguisher, static electricity protection ground tape, etc.

lpg truck

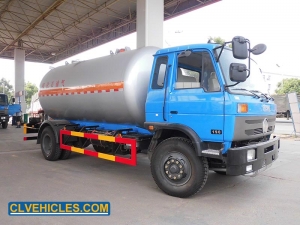

Dongfeng 10000 liter lpg truck

Propone lpg tanker truck is mainly used to transport LPG,include propane, isobutane, etc liquefied petroleum gas. It belongs to Pressure vessel category, it need good quality and high safety. We have more than ten year' experience, we can manufacturer LPG truck

lpg truck

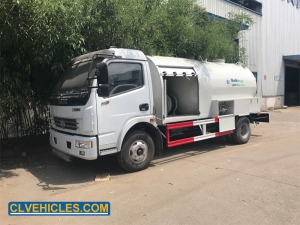

Dongfeng 8000 liter lpg storage tank truck

Progress Tank brand propane trucks are available in a wide range of sizes and configurations in capacities ranging from 2800 to 5000 gallons.

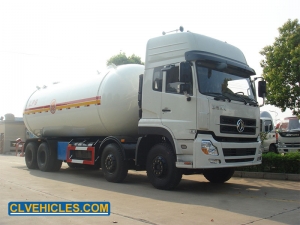

Dongfeng propane delivery truck

Dongfeng kingland 35000 liter propane delivery truck

LPG truck (also called truck mounted LPG tanker, LPG tanker truck, LPG tank truck, LPG delivery truck, LPG truck mounted transport tank, LPG truck tank, LPG road tanker truck) is used to transport liquefied petroleum gas, such as propane, liquid ammonia, dimethyl ether (DME), isobutene, etc.

LPG Gas Transport Truck

SINOTRUK HOWO 8X4 35.5CBM LPG Tank Truck 35.5M3 LPG Gas Transport Truck

LPG tank truck It is used for transporting liquefied petroleum gas, Generally by the automobile chassis, the tank body, the operation box 3 majority composition.

LPG Gas Transport Truck

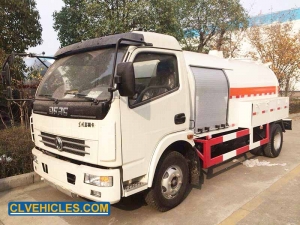

DFAC 4X2 6CBM LPG Tank Truck 6M3 LPG Bobtail Truck 3Tons LPG Filling Truck
