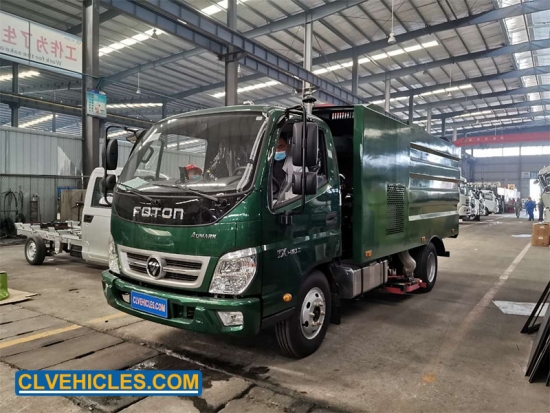

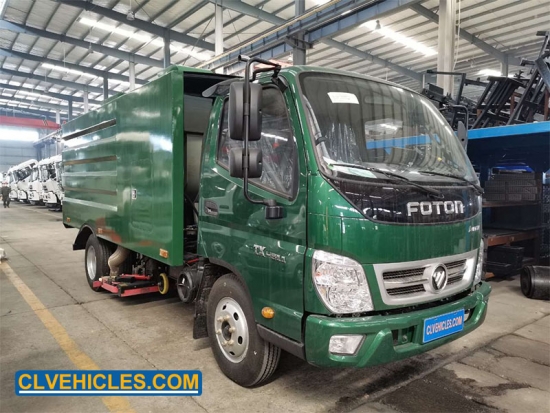

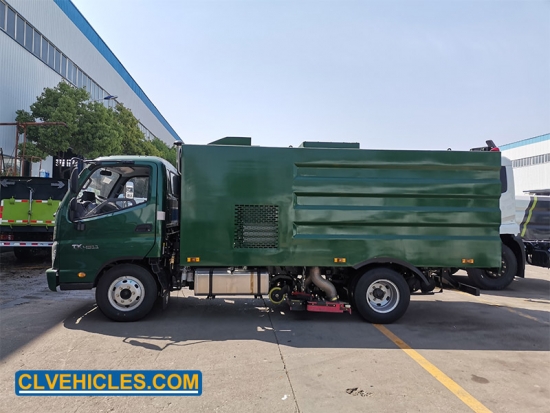

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc5CBM FOTON Vacuum Road Sweeper Truck
Vacuum Sweeper Truck is a vehicle that mainly consists of chassis, vice engine, suction device, hydraulic system, electrical system and dirty tank, etc. According to the different chassis model, we have small tank size, middle tank side, large tank size etc. vacuum suction trucks for your choice with different brands. The vacuum cleaner truck has the characteristics of fast cleaning speed, no dust, low energy consumption, widely used in urban roads, highways, airports, docks, Bridges, squares, residential areas of mechanized cleaning operations.
Quick Details
| Product name |
Road sweeper truck |
|
Water Tank Capacity |
- |
|
Garbage Tank Capacity |
5000L |
|
Chassis Brand |
FOTON AUMARK |
|
Horsepower |
109hp |
|
Sweeping Width |
3.2m |
|
High Pressure Cleaning Width |
3.5m |
|
High Pressure Cleaning Speed |
3-20Km/h |
|
Maximum Cleaning Capacity |
60000M2/h |
|
Clean efficiency |
≥ 95% |
|
Maximum Suction Size |
120mm |
Applications

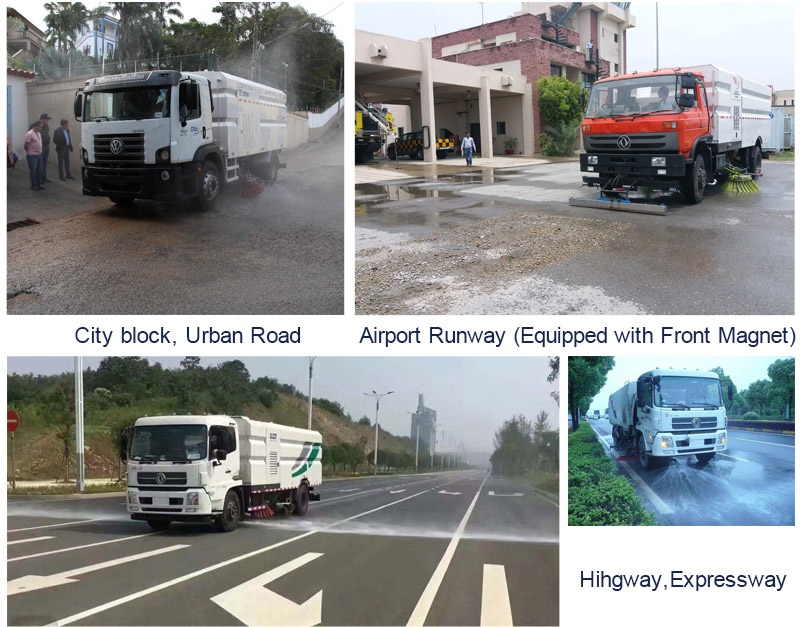

The Vacuum Sweeper Truck is mainly used for road
dust cleaning and suction. It is widely used in seaports, coal mining places,
urban roads, highways, airports, docks, Bridges, squares, residential areas etc
to make the places.
A Road Suction Truck can largely save
labor cost and working time. To use the Sweeper Truck one hour can match a
person sweeping the road all day!

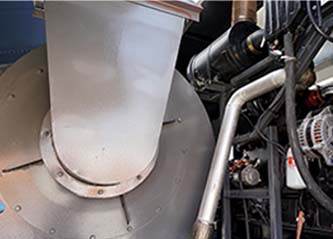

1. With auxiliary engine. It is with JMC 64KW vice
engine and supply enough power for the suction devices. The vice engine is
connected to the fan adopts automatic centrifugal clutch, can guarantee the
vice engine no-load start.
2. Vacuum device and suction nozzle arrangement adopts
"wide of suction nozzle by the main suction + left and right side suction
nozzle structure arrangement. The suction cup device has the function of
avoiding and resetting automatically when encountering obstacles.This function
can effectively solve the problem of easily damaged dust collector. Full
floating suction nozzle, with the characteristics of large vacuum width, high
vacuum efficiency, and conducive to the adjustment and maintenance of suction
nozzle.

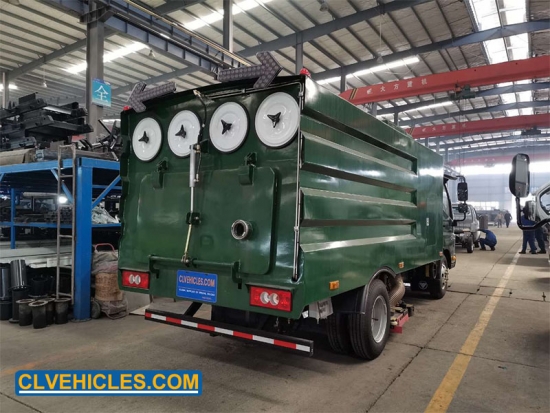

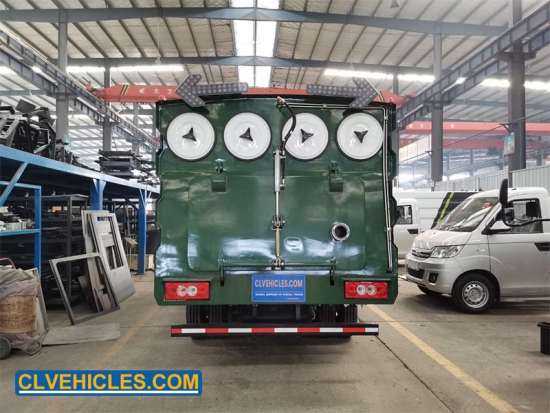

3. The liner of dustbin adopts double structure, the
inner layer is all stainless steel;The high efficiency filtration of 4 sets of
polymer filter cylinders can effectively reduce the secondary pollution caused
by dust.
4. The front part of the truck is equipped with an
automatic emergency system of hand pump.The tail is equipped with an optional
water spray dust removal device;Open and close the garbage box door and garbage
dump can be operated in the driving room, which is safe, convenient and
reliable.
5. The filter cylinder of the vacuum truck can
effectively separate the dust absorbed by the vacuum truck so as to avoid
secondary dust pollution. There are two cleaning methods for the filter
cylinder of the vacuum truck, one is equipped with automatic pulsed dust
cleaning, and the other is disassembled and cleaning. Both are easy to operate.
|
|
|
|

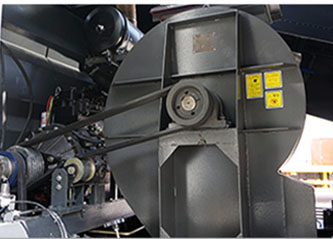

Free maintenance fan,reduces maintenance costs and long service life. |

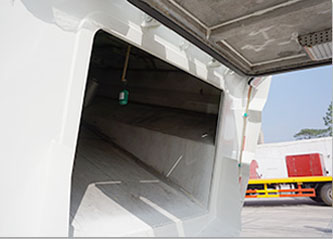

Water tank and garbage tank made in stainless steel. Better anti-corrosion performance and easy maintenance. |
|
|
|
|

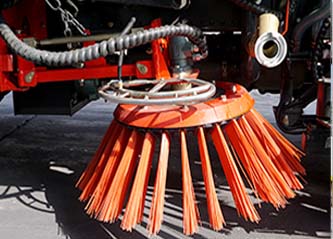

Wear-resisting sweeper brush,oil-less rotating mechanism. |
Italian motor, Schneider switch control,Taiwanese Multifold solenoid valve. |

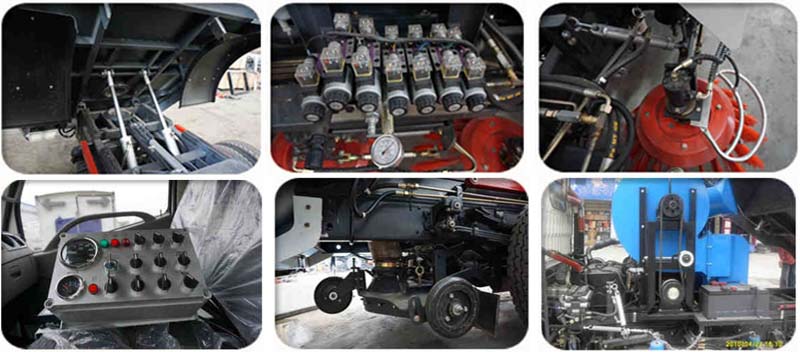

Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Boddy
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Suppy only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
|
Truck Specification |
|||
|
Model |
CL5070XCCFT5 |
||
|
Cab |

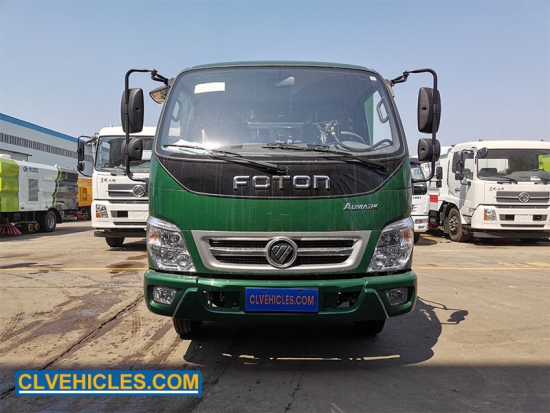

FOTON single row cab, with hydraulic power steering, with A/C |
||
|
Driving Type |
4*2 Left hand driving |
||
|
Max Speed (km/h) |
99 |
||
|
Overall Dimension (mm) |
Appro. 6100*2400*2600 |
||
|
GVW (kg) |
Appro. 7200 |
||
|
Truck Tare Weight (kg) |
Appro. 5400 |
||
|
Wheelbase (mm) |
3360 |
||
|
Approach/Departure Angel (º) |
21/15 |
||
|
Tire |
7.00R16 |
||
|
Clutch |
Type |
Single dry diaphragm spring |
|
|
Specification |
φ250×φ160 |
||
|
F/R Wheelspan |
1530/1485 |
||
|
Gear Box |
Model |
JC5-28 |
|
|
Type |
Manual |
||
|
Forward Speed Gear |
5 |
||
|
Reverse Speed Gear |
1 |
||
|
Bridge |
Front Axle Load-bearing (kg) |
2200 |
|
|
Rear Axle Load-bearing (kg) |
5000 |
||
|
Engine |
Brand |
FOTON |
|
|
Model |
BJ493ZLQV1 |
||
|
Fuel Type |
Diesel fuel |
||
|
Emission Standard |
Europe III |
||
|
Type |
Water-cooled four-stroke, direct injection, turbocharged |
||
|
Nos of Cylinder |
4 |
||
|
Max. Output Power (kw) |
80 |
||
|
Exhaust (ml) |
2771 |
||
|
Max output power (hp) |
109 |
||
|
Braking System |
Service Brake |
Compressed air brake |
|
|
Park Brake |
Spring energy |
||
|
Auxiliary Brake |
Engine exhaust brake |
||
|
Electric System |
12V |
||
|
Upper-Body Specification |
|||
|
Auxiliary Engine |
Number |
1 unit |
|
|
Model |
|||
|
Rated power (hp) |
87 |
||
|
Feature |
It has its own air pump |
||
|
Dust Tank |
Volume |
5CBM |
|
|
Thickness |
3mm |
||
|
Material |
Carbon steel |
||
|
Feature |
The tank gets through oil-washing, polishing, anti- rust paint, ant - corrosion treatment, which makes it durable |
||
|
Draught Fan |
Number |
1 unit |
|
|
Type |
6.0A |
||
|
Feature |
No need maintenance, no noise, large air volume, high efficiency, long service life |
||
|
Stepless Automatic Clutch |
Number |
1 unit |
|
|
Model |
NFCY40-195-108SPA5C |
||
|
Feature |
The automatic clutch can effectively realize the automatic combination and automatic separation between the engine and the fan, reduce the inertia buffer between the fan and the engine, and make the auxiliary engine and the fan more durable |
||
|
Electronic Pump |
Number |
1 unit |
|
|
Model |
NORTH STAR 24V-2271T |
||
|
Feature |
Easy installation, self-suction function, allow dry operation, medium temperature up to 60 degrees, low noise and low voltage to ensure personal safety. |
||
|
Solenoid Electric Valve |
Number |
1 set |
|
|
Model |
4WE6J6X |
||
|
Hydraulic Lifting Cylinder |
Number |
2 pieces |
|
|
Type |
740mm |
||
|
Feature |
High bearing pressure, no pressure relief, no leakage |
||
|
Electromagnetic Pulse Valve |
Number |
4 units |
|
|
Model |
TGUM-140S |
||
|
Feature |
Electromagnetic pulse valve compressed air to produce air gun back blowing filter cylinder to achieve filter cylinder dust removal effect |
||
|
Dust Filter Cylinder |
Number |
8 units |
|
|
Type |
350*240*900mm |
||
|
Feature |
Coated polyester non-woven filter barrels, USES the international advanced technology, wide fold discount gap evenly. End cover on both ends of the dust removal filter cartridge with more than 6 mm thick rust steel plate stamping and into (out of shape not easily) cover and filter material to glue it with special polyurethane foam adhesive joint (make sure the cover and filter material connected closely with no gaps). Both inside and outside support protection frame adopts more than 4 mm stainless steel plate, high strength, good anti-corrosion performance punching their support can prevent the broken cartridge blowing up flat |
||
|
Dust Collection Box |
Number |
1 set |
|
|
The Suction Nozzle Wheel |
4 Nos |
||
|
Width of Main Suction Cup |
2600mm |
||
|
Width of Vice Suction Cups |
600mm |
||
|
Max Working Capacity |
35000 m2/h |
||
|
Suction Granularity |
≤5CM |
||
