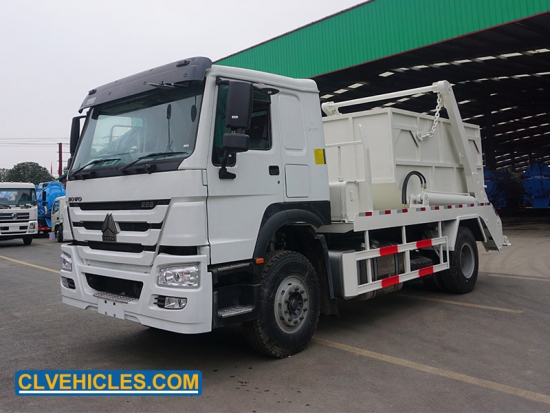

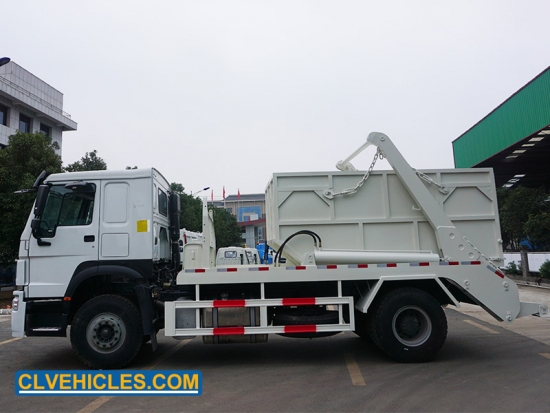

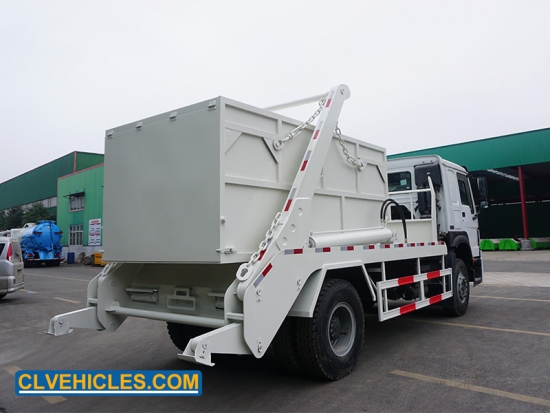

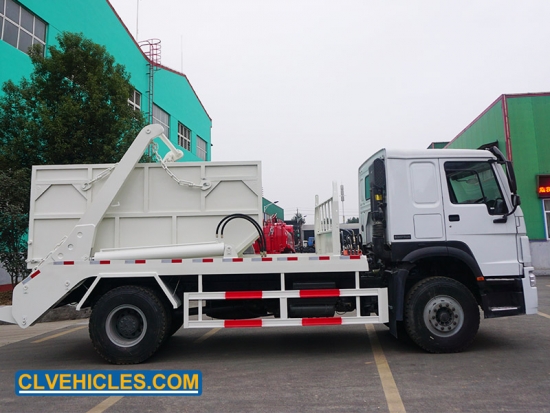

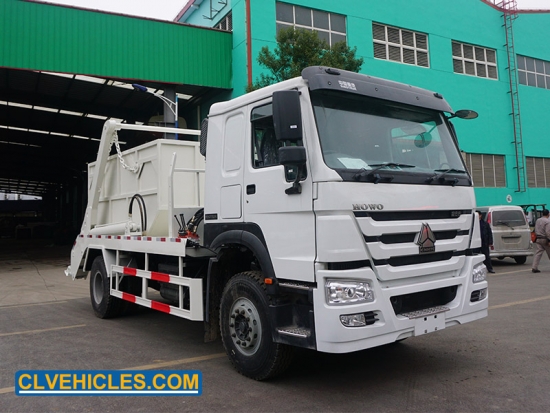

HOWO 336hp 6wheeler Skip Loader Garbage Bin Truck

Sinotruk HOWO big volume swing arm garbage truck,skip loader truck

  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CLW5250BBLJ
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD44700
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

HOWO 336hp 6wheeler Skip Loader Garbage Bin Truck


Although the skip loader is present in a broad scope of construction assignments, it’s primarily linked to the waste handling business. Its flexibility to handle close quarters and confined spaces makes the skip loader the optimal partner for this task at the construction site.

Quick Details



Chassis Brand HOWO
Carriage body volume  16-20CBM
Filling Cycle Time 50-60s/once

Hydraulic Pressure

20Mpa


Applications


The swing arm container garbage truck can be used in urban erea and suburb.The container on the rear of the truck can be put down on the ground to gather garbage at  a fixed location  .when the container gathers full.the truck lift it on the flat bed on the rear of the truck.then dump the garbage in the garbage center.

Competitive Advantages

1, General:Our skip loader Truck with 2ton -15ton capacity ;Euro 2, Euro 3 ,Euro 4 and Euro 5 Emission Standards;


2,  Drive model:4*2,6*4; Brand with Dongfeng, JMC,Qingling , JAC, Foton ,Shacman and etc.

3.  Bin Material :Standard steel (Carbon steel Q235 & Q345, also the Stainless steel can be choose) for garbage tank, against corrosion resistant, rust protection and well-resisting.

4.  Usage :The Skip Refuse truck is multi-functional used for garbage collection, transportation and self-discharging, Easy to operate and maintenance.

5.   Swing system: The swing system use complete sets of equipment, safe and reliable, we have domestic brand and imported brand for optional

6.   Advantage :Adopts one truck match numbers of garbage tank, loop transportation, which can highly improve the work efficiency, also reduce the cost.

Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



Truck Specification

Truck model

CLW5250YSLJ

Cab

Single row cab

Driving Type

6*4 Left hand driving

Max Speed (km/h)

115

Overall dimension(mm)


9350×2500×3200


GVW( kg)

25000

Mass in working order( kg)

16600

Wheelbase(mm)

4700

F/R track base(mm)

1569/1530

F/R overhang(mm)

1068/1997

Approach/Departure Angel

22/25

Tire

10.00-20

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

8-speed

Bridge

Front axle

7T

Rear axle

13T

Enging

Model


WD615 69


Fuel Type

Diesel fuel

Type

Water-cooled four-stroke,, direct injection, turbocharged

Exhaust(ml)

9726

Max output power/rotate speed (hp /rpm )

336/2800

Braking  system

Service Brake

Compressed air brake

Park Brake

Spring energy

Auxiliary brake

engine exhaust brake

Eletric system

24v

Upper-Body  specification

Material of tank

material : Q235,Thickness :3mm (side) 4mm(bottom)

Swing arm operating system

Power take-off, balance valve, oil pipe, fuel tank, oil pump, manual mutil-way reversing valve, balance valve, one-way hydraulic lock, etc.

Especially suitable for

Short distance transportation, sanitation department cleaning, transportation, etc.

Garbage bin

Divided into pit-type swing arm bins, ground-type swing arm bins(trapezoidal bucket, square bucket, sealed bucket)

Swing arm maximum pivot angle

145°

Hoisting time

30s

Unloading time

50s

Controlling way

Manualy and electrical control
