Brand:
CLVEHICLES.COMModel No.:
CL5107JSQG4Minimum Order Quantity:
1 UnitPrice:
USD 22000Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

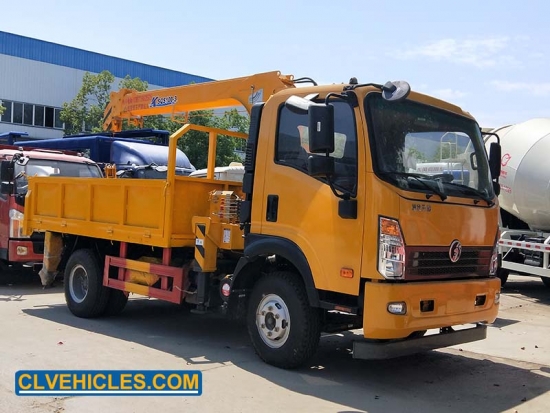

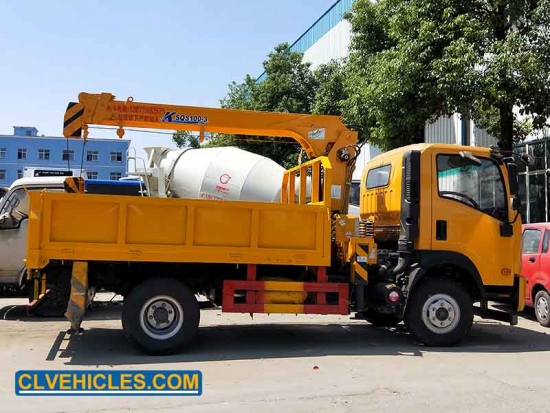

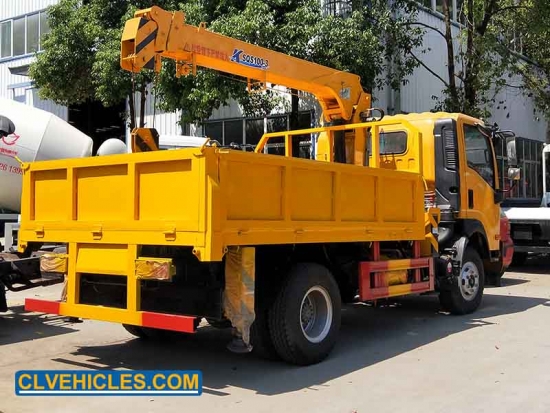

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcHOWO 10ton 120hp Cargo Truck with 4ton Crane
Compared special crane truck with crane, with a high speed, climbing ability characteristics.Enables fast movements, efficiency, energy saving.With a flexible, easy to operate, efficient, safe, and reliable.
Quick Details
|
Chassis Brand |
HOWO |
|
Max Lifting Capacity of Crane |
4000kg |
|
Crane type |
Straight arm type |
|
Truck Loading Capacity |
8000kg |
| Crane working radius | 8m |
Applications
For general cargo lifting and other special things like timber and brick by changing other equipment.
|
|
|
|

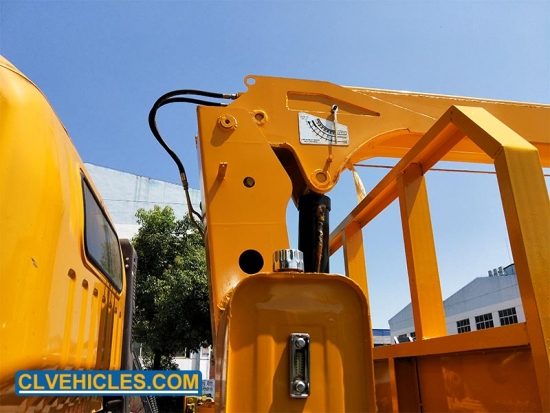

Main boom material is HG70 high strength steel |

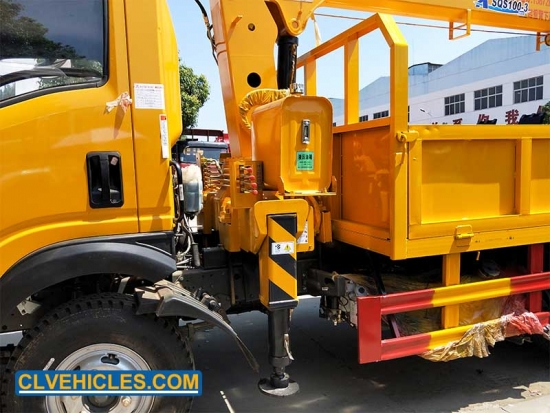

Strengthened hydraulic telescopic horizontal leg |
|
|
|
|
Automatic recovery device for hook.Double speed winch for heavy duty crane. |

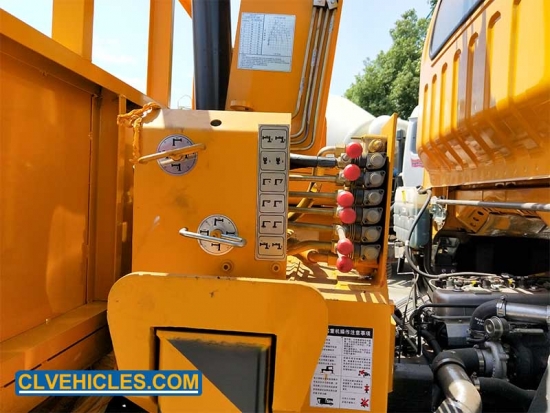

Multiple modes and position of operation are optional. |
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Vehicle Description |
||||||||||
|
Vehicle model |
Crane truck |
Overall dimensions (mm) |
7130×2350×3400 |
|||||||
|
GVW (kg) |
Appro×9900 |
Fact loading capacity(t) |
10 |
|||||||
|
Mass in working order (kg) |
Appro×6295 |
Max.Speed (km/h) |
90 |
|||||||
|
Chassis Description |
||||||||||
|
Chassis Model |
ZZ1087 |
|||||||||
|
Cab |
Standard cabin withRight hand drive |
|||||||||
|
Color |
Optional |
|||||||||
|
Allowable person in cab |
2/3 |
|||||||||
|
Wheel base (mm) |
3800 |
|||||||||
|
Front/Rear track base (mm) |
1503/1604 |
|||||||||
|
Front/Rear overhang (mm) |
1160/2170 |
|||||||||
|
Number of axles |
2 |
|||||||||
|
Axle |
Front axle |
2400 |
||||||||
|
Rear axle |
7200 |
|||||||||
|
Traction system |
4*2 |
|||||||||
|
Operation control system |
Power steering |
|||||||||
|
Braking system |
Full air |
|||||||||
|
Electric system |
24V |
|||||||||
|
Transmission |
5speed |
|||||||||
|
Spring plate |
11/9+7 |
|||||||||
|
Tire specification |
7.50R16 (6+1) |
|||||||||
|
Tire quantity |
6+1 |
|||||||||
|
Engine Description |
||||||||||
|
Engine model |
CY4102BZLQ |
|||||||||
|
Emission standard |
Euro2 |
|||||||||
|
Exhaust/output |
3856ml/88kw |
|||||||||
|
Horse power |
120hp |
|||||||||
|
Up-parts Description |
||||||||||
|
Cargo Dimension (mm) |
4245×2150×550 |
|||||||||
|
Cranemax loading capacity(kg) |
4000 |
|||||||||
|
Cranemax lifting height(m) |
10.6 |
|||||||||
|
Cranemax working Radius (m) |
8.00 |
|||||||||
|
Installation Space (m) |
0.7 |
|||||||||
|
Number of arms |
3 |
|||||||||
|
Radius (m) |
2.5 |
3 |
4 |
5 |
6 |
7 |
||||
|
Capacity (kg) |
4000 |
1380 |
930 |
680 |
530 |
430 |
||||
|
Working Condition: |
1、Altitude: 0-4500m 2、Temperature: -350C~+450C 3、Relative humidity: 80% 4、Wind force: ≤8 degree |
|||||||||
Boom crane truck (also called knuckle crane truck,crane truck ,lorry mounted crane truck ,truck cargo with loader crane, articulated boom crane truck,crane mounted truck , boom crane truck ,truck with crane ,truck mounted crane,etc) is used to lift the cargo,load ,transport and unload heavy stuff.
A crane is a type of machine, generally equipped with a hoist rope, wire ropes or chains, and sheaves, that can be used both to lift and lower materials and to move them horizontally. It is mainly used for lifting heavy things and transporting them to other places.
Cranes are commonly employed in the transport industry for the loading and unloading of freight, in the construction industry for the movement of materials and in the manufacturing industry for the assembling of heavy equipment.
Truck mounted crane, is one of our main products,which is also named hydraulic truck crane, crane, mobile crane, truck mounted crane, lorry truck, lorry-mounted crane, lorry crane, truck with loading crane, truck cargo crane, derrick cargo truck, gantry crane.
Truck with crane is also named truck with loading crane.It widely used in municipal construction,Coal mine engineering ,landscaping , the other construction materials and other equipment hoisting and transportation.
Truck crane with basket is also named hydraulic truck crane, mobile crane, truck mounted crane, lorry-mounted crane, lorry crane, truck with loading crane, truck cargo crane and so on. It is widely used in various loading and unloading, installation and lifting, especially in the field of outdoor lifting, salvage operation and other narrow places such as station, port, warehouse and construction site.
