DONGFENG KINLAND 20 TON Truck With Loading Crane

Truck crane with basket is also named hydraulic truck crane,  mobile crane, truck mounted crane,  lorry-mounted crane, lorry crane, truck with loading crane, truck cargo crane and so on.  It is widely used in various loading and unloading, installation and lifting, especially in the field of outdoor lifting, salvage operation and other narrow places such as station, port, warehouse and construction site.


  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CL5312JSQD
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 81000
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

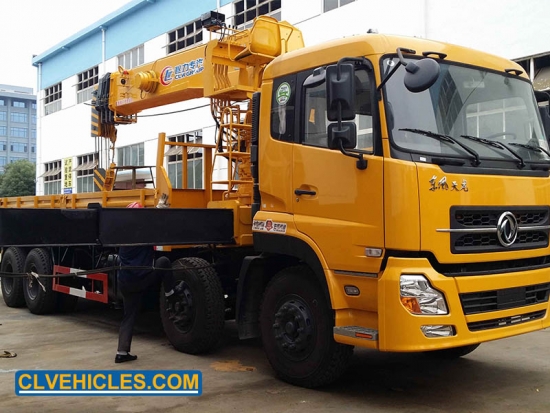

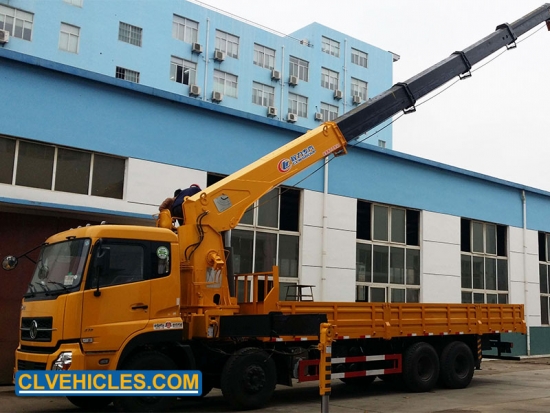

DONGFENG KINLAND 20 TON Truck With Loading Crane


Compared special crane truck with crane, with a high speed, climbing ability characteristics.Enables fast movements, efficiency, energy saving.With a flexible, easy to operate, efficient, safe, and reliable.


Quick Details


Chassis Brand

DONGFENG KINLAND

Max.Lifting Capacity of Crane

20000kgs

Max.Lifting Torque

50 T.m

Max.Lifting Height

17m

Crane working radius 15m


Applications


For general cargo lifting and other special things like timber and brick by changing other equipment.




Competitive Advantages


Main boom material is HG70 high strength steel

Strengthened hydraulic telescopic horizontal leg

Automatic recovery device for hook.Double speed winch for heavy duty crane.

Multiple modes and position of operation are optional.


Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.





Product Parameters



Truck Specification

Chassis model

CL5312JSQD

Cab

KINLAND CABIN with power steering. Electronic flameout,left hand drive

Driving Type

8*4

Max Speed (km/h)

99

Overall dimension(mm)

12000*2490*3950

Mass in working order( kg)

17000

GVW( kg)

31000

Wheelbase(mm)

1850+4350+1350

F/R track base(mm)

2011/1860

F/R overhang(mm)

1525/3350

approach/departure angel

18/11

Tire

315/80R22.5 (12+1)

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

12JSD180T

Bridge

Front axle

7T

Rear axle

13T

Enging

Model

L375 30

Fuel Type

Diesel fuel

Type

Water-cooled four-stroke,, direct injection, turbocharged

Exhaust(ml)

8900

Max output power/rotate speed (hp /rpm )

375/2100

Max torque/rotate speed(N.m/rpm)

1480/1100-1400

Braking  system

Service Brake

Compressed air brake

Park Brake

Spring energy

Eletric system

24v

Upper-Body  specification

Model

SQ20SA3

Match the truck

Above25 tons loading truck

Assembling space (mm)

1400

Mass working weight (kgs)

7500

Max lifting weight (t)

20

Max lifting torque(t.m)

50

Max lifting height (m)

17

Max working radius (m)

15

Cross section form

Pentagon

Number of arms

4

Length(m)

5.52-15.3

Extending speed(m.s)

0.25

Range

1-72

The arm angular velocity (°/s)

2.4

Hook speed (m/min)

5.5

Diameter of wire rope (mm)

18

Length of wire rope (mm)

115

Slewing mechanism

Rotating speed (r/min)

0.5

Rotating range (°)

360

Leg

Type

H

Span(m)

2.32-7.2

Hydraulic system

Pressure (mpa)

24

Capacity(l)

180

Safety device

Overwind alarm

Lifting capacity

Working radius (m)

2.5

3.0

4.5

6.0

7.0

9.0

11.0

14

Rated loading (kgs)

20000

16000

10000

7200

6000

4500

3400

2000
