ISUZU 4x2 Double Cabin 14m Aerial Work Platform Truck


ISUZU Boom Lift Bucket Vehicle, also called man lift truck, is a mechanical device and used for  temporary, flexible access purposes.


  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CLW5050JGKIS14F
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 30000
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

ISUZU 4x2 14 Meters Folding Type Boom Lift Bucket Vehicle



ISUZU 14 Meters Aerial Work Platform Truck is a folding type Aerial Platform Truck. It has three folding arms and provides temporary access for people or equipment to inaccessible areas of 14 meters height. The arm shaft is compact,flexible and large operating range. Four H type hydraulic supporting legs are used for the platform and have large span and good stability, which can be stretch out and draw back both independent.


Quick Details



Chassis Brand

ISUZU

Horsepower

98hp

LHD/RHD

LHD

Type

Folding Type

Working Height

14 meters

Color

As requirements


Applications


ISUZU Double Rows 14 Meters Folding Type Aerial Work Platform Truck is mainly used for municipal engineering, municipal works, streetlight repair and maintenance, garden works, hotel decoration, building engineering work, electric power works, factory, large exhibition hall etc. And it is high efficiency and great performance with good safety.




Competitive Advantages


1.It uses well-known ISUZU double rows chassis with air-conditional, power steering and USB connector radio.


2.It is folding type, which has price advantage compared with telescopic type Aerial Bucket Truck. The working altitude can reach to 18 meters. And the bucket loading capacity is about 200KG with non-slip body.

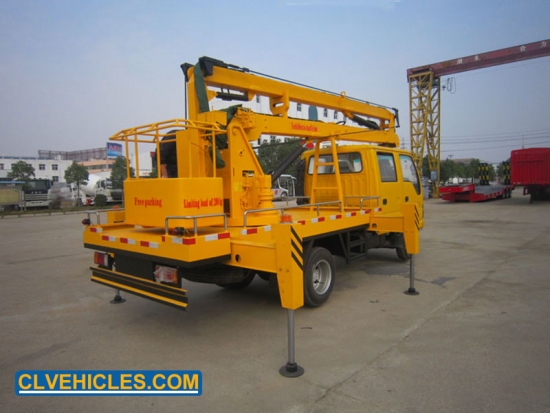

3.Front H and rear H legs, good stability, which can be operated at the same time or independently, and adapt to a variety of working conditions.


4.Manual controlled, alarming when in dangerous work, excellent safety performance.


5.Slewing mechanism adopts adjustable type, which is easy to adjust.

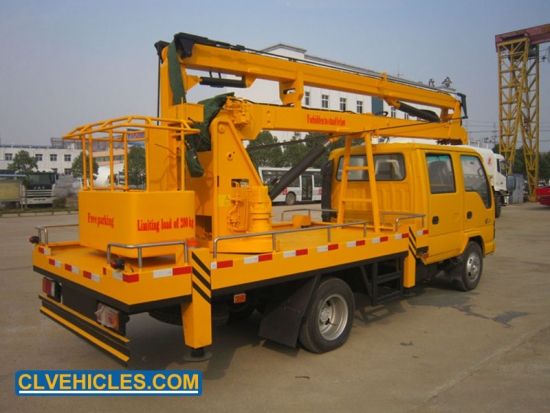

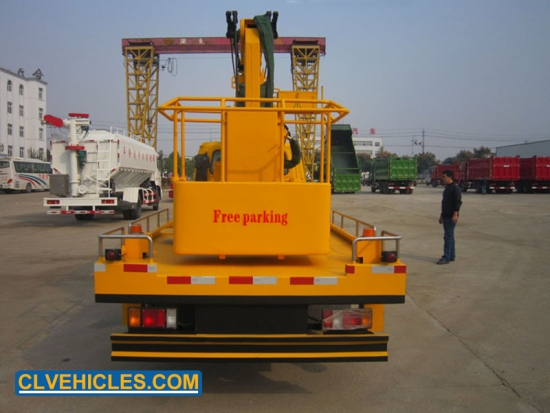

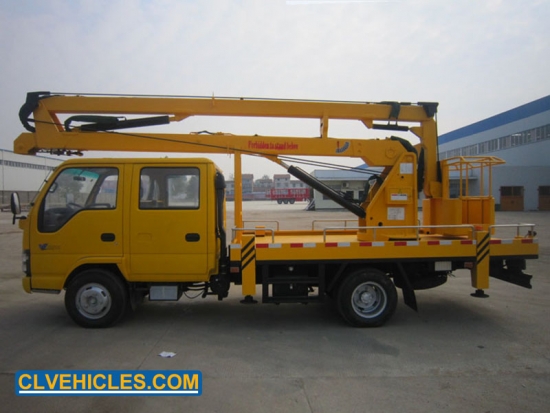

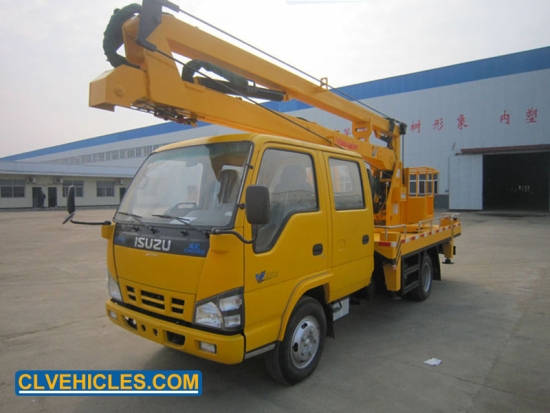

Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



Chassis Specification

Truck model

CLW5050JGKIS14F

Cab

ISUZU100Pdouble row seats cab

Driving Type

4*2 Left hand driving

Max Speed (km/h)

90

Overall dimension (mm)

7400*2000*3000

GVW (kg)

Appro. 5660

Mass in working order( kg)

Appro. 5335

Wheelbase (mm)

3360

F/R track base (mm)

1504/1425

F/R overhang(mm)

1065/2125

Approach/Departure Angel

27/15

Tire

700-15

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

MSB 5-speed

Bridge

Front axle

2.5T

Rear axle

4.8T

Engine

Model

4JB1CN

Fuel Type

Diesel fuel

Emission Standard

Europe 4

Type

Water-cooled four-stroke, supercharged inter-cooling

Exhaust (ml)

2771

Max output power/rotate speed (hp /rpm )

98/3400

Max torque/rotate speed (N.m/rpm)

220/1700

BrakingSystem

Service Brake

Oil brake

Park Brake

Spring energy

Electric system

24v

Special Function

Working height (m)

14

Max working radius (m)

8

Boom type

Threesections folding working boom

Rated loading in the bucket(kg)

200

Bucket size (mm)

1200*600*1100

Rotating speed (r/min)

0-2

Rotationangle

360°

Supporting leg

four sets hydraulic legs

Span of supporting legs

Horizontal

3100mm

longitudinal

2930mm

Boomcontrol mode

1.Bucket control

2.Manual operation

Supporting legcontrol mode

Manual operation

Workingcondition:

1.Altitude: 0-4500m

2.Temperature: -350C~+450C

3.Relative humidity: 80%

4.Wind force: ≤8 degree
