JAC 6 Wheels Mobile Hydraulic High Rise Work Truck Mounted Aerial Lift Work Platform

The JAC Hydraulic Aerial Truck is used to provide temporary access for people or equipment to inaccessible areas, usually at height.



  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CL5050JGKJAC14F
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 27000
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

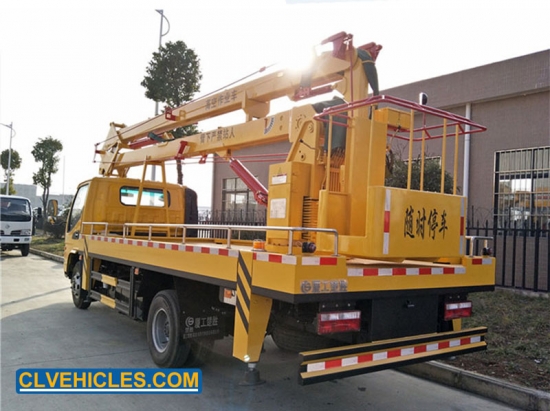

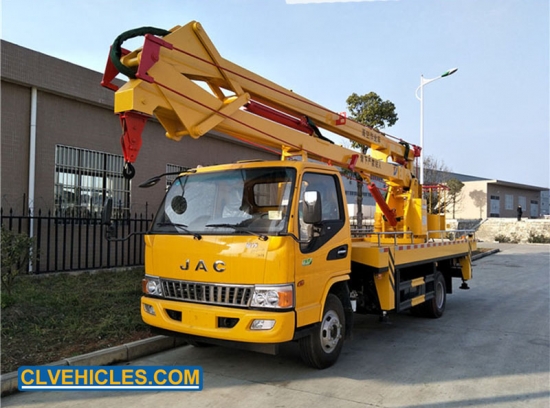

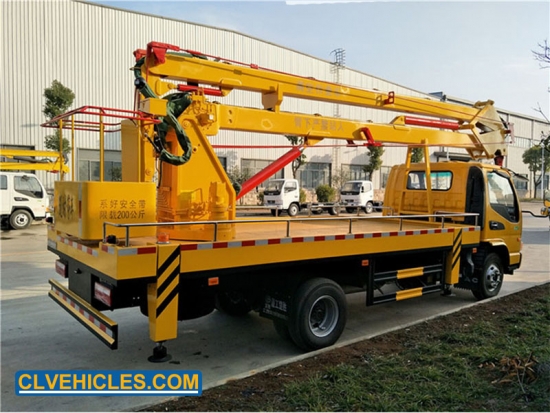

JAC 6 Wheels 12 Meters Folding Type Hydraulic Aerial Truck




JAC Hydraulic Aerial Truck is a folding type Bucket Truck. It has three arms and supports people to work in 12 meters high and the arm shaft is compact,flexible and large operating range. Four H type hydraulic supporting legs are used for the platform and have large span and good stability, which can be stretch out and draw back both independent.



Quick Details



Chassis Brand

JAC

Horsepower

92hp

LHD/RHD

LHD

Type

Folding Type

Working Height

12 meters

Color

As requirements


Applications


The JAC 6 Wheels Hydraulic Aerial Truck is a folding type Bucket Truck. It is mainly used for municipal engineering,municipal works, streetlight repair and maintenance, garden works, hotel decoration, building engineering work, electric power works, factory, large exhibition hall etc. And it is high efficiency and great performance with good safety.




Competitive Advantages


1.It uses JAC single row chassis, which has choices for both LHD and RHD. And the cab has advanced design with fully automatic welding manipulator ABB.


2.It is folding type, which has price advantage compared with telescopic type Bucket Truck. The working altitude can reach to 12 meters . And the bucket loading capacity is about 200KG with non-slip body.


3.Front H and rear H legs, good stability, which can be operated at the same time or independently, and adapt to a variety of working conditions.


4.Computer controlled, automatic limit, alarming when in dangerous work, excellent safety performance.


5.Slewing mechanism adopts adjustable type, which is easy to adjust.




Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters




Chassis Specification

Truck model

CLW5030JGKJAC12F

Cab

JAC single row seats

Driving Type

4*2 Left hand driving

Max Speed (km/h)

90

Overall dimension (mm)

7300*2080*2920

GVW (kg)

Appro. 5490

Mass in working order( kg)

Appro. 5160

Wheelbase (mm)

3360

F/R track base (mm)

1610/1550

F/R overhang(mm)

1065/2125

Approach/Departure Angel

27/15

Tire

6.50R16 10PR

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

WLY6T100 6 forward speed

Bridge

Front axle

1.5T

Rear axle

2.0T

Engine

Brand

JAC

Model

HFC4DA1-1

Fuel Type

Diesel fuel

Emission Standard

Europe II

Type

Water-cooled four-stroke, supercharged inter-cooling

Exhaust (ml)

2771

Max output power/rotate speed (hp /rpm )

92/3600

Max torque/rotate speed (N.m/rpm)

225/1800-2200

BrakingSystem

Service Brake

Air brake

Park Brake

Spring energy

Electric system

12V

Special Function

Working height (m)

14

Max working radius (m)

8

Boom type

Twosections folding working boom

Rated loading in the bucket(kg)

200

Bucket size (mm)

1200*600*1100

Rotating speed (r/min)

0-2

Rotation Angle

360°

Supporting leg

four sets hydraulic legs

Span of supporting legs

Horizontal

3100mm

longitudinal

2930mm

Boom Control mode

Bucket control

Manual operation
