ISUZU 600P 8ton small capacity dump truck

High strength/ high rigidity/ long life block: vehicular cast iron body, similar strength cast steel, similar heat dissipation potential gray iron, strong anti-thermal deformation, high cost, can be adopted in few high end engines in the world due to its core technology.


  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CL3085ZX281
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 26000
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

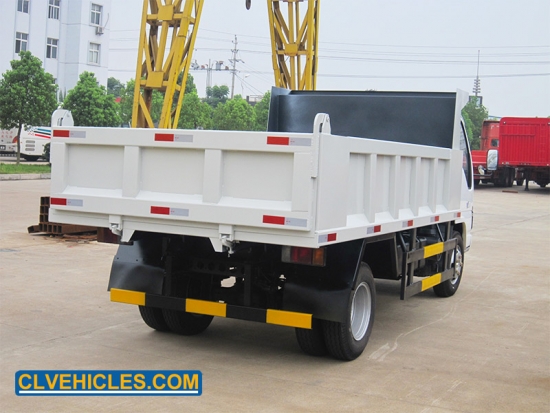

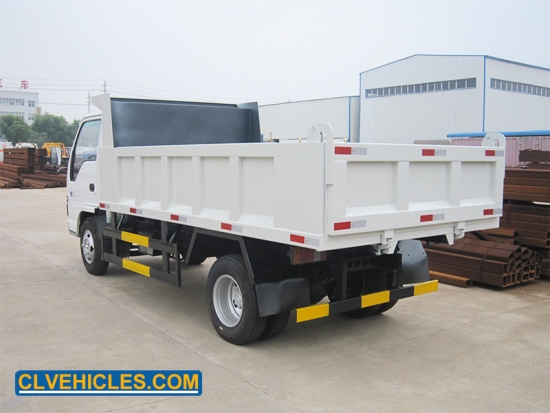

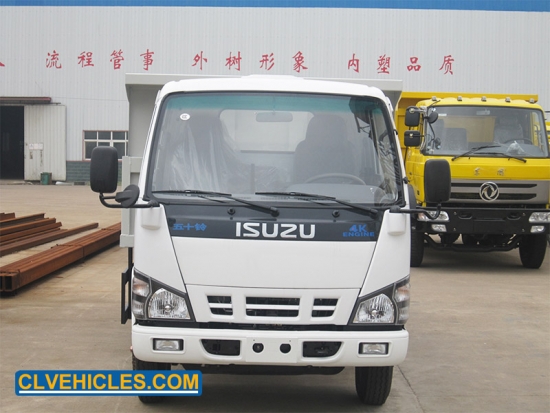

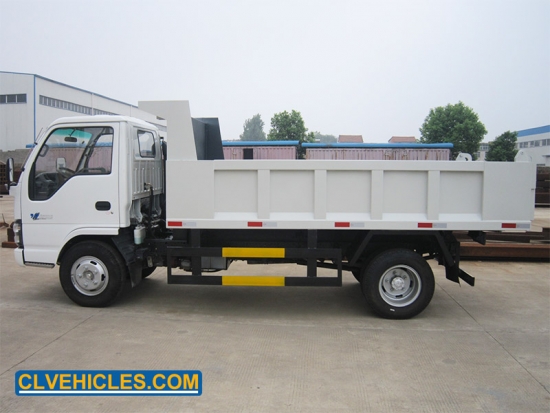

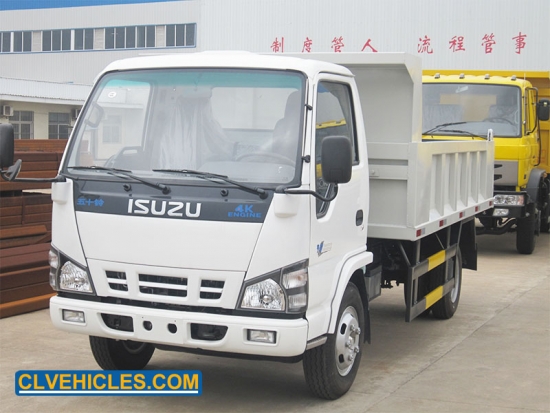

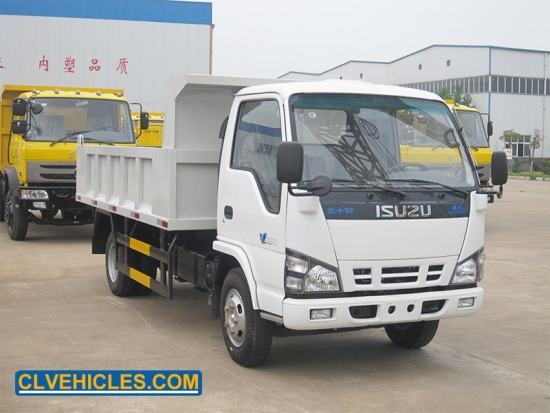

ISUZU 600P 8ton small capacity dump truck


ISUZU dump truck is a new generation reliable, efficient, comfortable product which is integrated with the conception of the European leading design, manufacturing experience, continuous innovation. It has many advantages such as advanced technology, excellent performance, and reliable quality, durable.


Quick Details


Chassis Brand

ISUZU 600P

Payload Capacity

5ton-8ton

Material of Tank

carbon steel

Horsepower

120hp

Application

Construction project, heavy duty transportation


Applications



A transfer dump is a standard dump truck pulling a separate trailer with a movable cargo container, which can also be loaded with construction aggregate — gravel, sand, asphalt, klinkers, snow, wood chips, triple mix, etc.




Competitive Advantages


Unique metal support ring welded structure allowing good cylinder stability and high cylinder expanding resistance.

 High strengthen steel compartment.

New & modern cab with big space and more comfort, all electrical equipment are controlled by ECO, can be left or right side.

Driving axle has big loading capacity, each axle is good stability, high safety factor and ability to work under high level pressure


Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters


Vehicle Description

Vehicle model

Tipper truck

Overall dimensions (mm)

4880×1885×2300

GVW (kg)

Appro×6000

Fact loading capacity(kg)

5000

Mass in working order (kg)

Appro×2500

Max. Speed (km/h)

90

Chassis Description

Chassis Model

QL1070

Cab

Single row non-longhead cab can turn over

Color

Optional

Allowable person in cab

2

Wheel base (mm)

3360

Front/Rear track base (mm)

1260/1260

Front/Rear overhang (mm)

795/1065

Number of axles

2

Axle

Front axle

2500

Rear axle

4800

Traction system

4×2

Operation control system

Power steering

Braking system

Oil brake

Electric system

24V

Transmission

5-speed

Spring plate

5/4

Tire specification

7.00R16

Tire quantity

6 6+1

Engine Description

Engine model

4KH1-TCG40

Emission standard

Euro4

Exhaust/output

2999ml/88kw

Horse power

120hp

6 Up-parts Description

Max capacity(kg)

5000

Dump box dimension (L*W*H)(mm)

4000×1860×400

Dump box material

Carbon Steel

Dump box thickness (mm) bottom/side

4/3

Hydraulic cylinder

Mid-Double Cylinder

Dump box color

Optional

Working Condition:

1、Altitude: 0-4500m

2、Temperature: -350C~+450C

3、Relative humidity: 80%

4、Wind force: ≤8 degree
