Equipped with electronic control and full hydraulic operation, it offers smooth and safe movement. The system includes double balance valves on cylinders for enhanced safety, and the turntable provides 360-degree continuous rotation for maximum maneuverability.
Brand:
CLVEHICLES.COMModel No.:
CLW5042XLCBDPMinimum Order Quantity:
1 UnitPrice:
USD 22100Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc

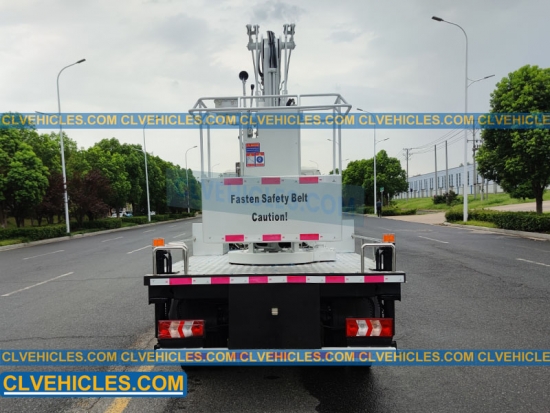

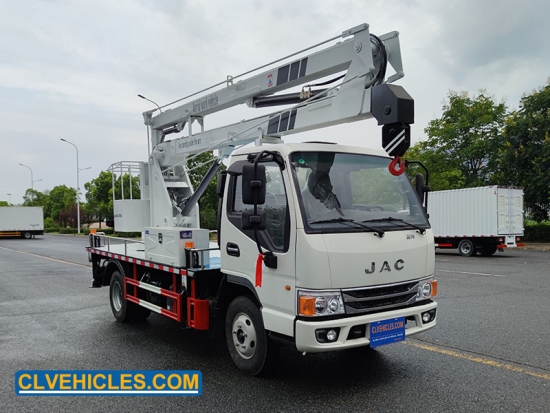

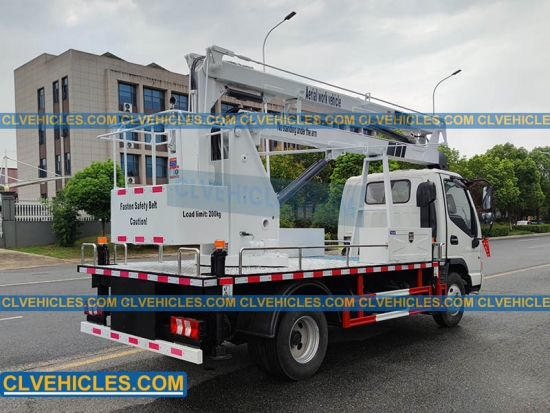

JAC 115hp 13 Meters Aerial Work Platform Truck

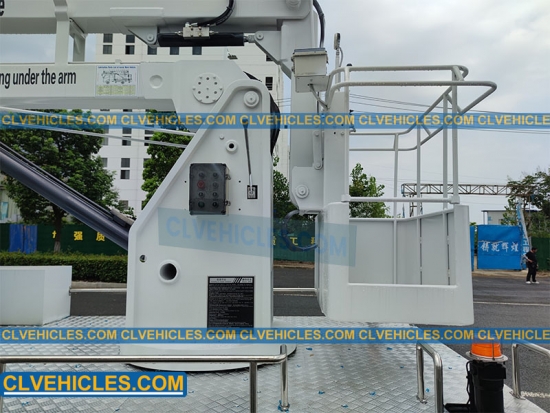

The JAC 115hp 13 Meters Aerial Work Platform Truck is a versatile and reliable solution for high-altitude operations. Powered by a 115hp engine, it ensures stable performance for maintenance, construction, and utility tasks. The truck features a 3-section folding boom with a maximum working height of 13 meters, allowing flexible reach and precise positioning.

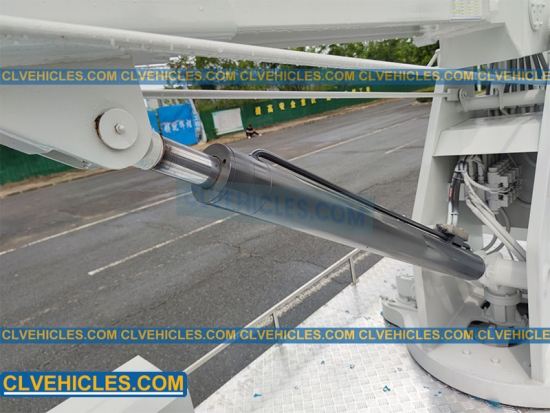

Equipped with electronic control and full hydraulic operation, it offers smooth and safe movement. The system includes double balance valves on cylinders for enhanced safety, and the turntable provides 360-degree continuous rotation for maximum maneuverability. A winch is also installed for added functionality. Ideal for urban infrastructure, street lighting, and tree trimming, this aerial work platform combines efficiency, safety, and durability in one compact design.
Quick Details
|
Chassis Brand |
JAC |
|
Horsepower |
115hp |
|
LHD/RHD |
LHD |
|
Type |
Folding Type |
|
Working Height |
13 meters |
| Color |
As requirements |
Applications
Bucket Truck is mainly used for municipal engineering,municipal works, streetlight repair and maintenance, garden works, hotel decoration, building engineering work, electric power works, factory, large exhibition hall etc. And it is high efficiency and great performance with good safety.
Competitive Advantages
1.It uses SINOTRUK chassis, which has choices for both LHD and RHD. And the cab has advanced design with fully automatic welding manipulator ABB.
2.It is folding type, which has price advantage compared with telescopic type Bucket Truck. The working altitude can reach to 14 meters . And the bucket loading capacity is about 200KG with non-slip body.
3.Front H and rear H legs, good stability, which can be operated at the same time or independently, and adapt to a variety of working conditions.
4.Computer controlled, automatic limit, alarming when in dangerous work, excellent safety performance.
5.Slewing mechanism adopts adjustable type, which is easy to adjust.
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Chassis Specification |
||||
|
Truck model |
CLW5048JGKIS12 |
|||
|
Cab |
ISUZU100Pdouble rows of seats cab, with air-conditional andUSB connector radio. |
|||
|
Driving Type |
4*2 Left hand driving |
|||
|
Max Speed (km/h) |
95 |
|||
|
Overall dimension (mm) |
Appro. 6400*1980*3100 |
|||
|
GVW (kg) |
Appro. 5800 |
|||
|
Mass in working order( kg) |
Appro. 5485 |
|||
|
Wheelbase (mm) |
3360 |
|||
|
Tire |
700-15 |
|||
|
Clutch |
Single-plate dry diaphragm spring clutch |
|||
|
Steering |
Hydraulic steering with power assistance |
|||
|
Gear box |
MSB 5-speed |
|||
|
Bridge |
Front axle |
2.5T |
||
|
Rear axle |
4.8T |
|||
|
Engine |
Model |
4JB1CN |
||
|
Fuel Type |
Diesel fuel |
|||
|
Emission Standard |
Europe IV |
|||
|
Type |
Water-cooled four-stroke, supercharged inter-cooling |
|||
|
Exhaust (ml) |
2771 |
|||
|
Max output power/rotate speed (hp /rpm ) |
98/3400 |
|||
|
Max torque/rotate speed (N.m/rpm) |
220/1700 |
|||
|
BrakingSystem |
Service Brake |
Oil brake |
||
|
Park Brake |
Spring energy |
|||
|
Electric system |
24v |
|||
|
Special Function |
||||
|
Working height (m) |
12 |
|||
|
Max working radius (m) |
6 |
|||
|
Boom type |
Two sections folding working boom |
|||
|
Rated loading in the bucket(kg) |
200 |
|||
|
Bucket size (mm) |
1300*1000*1000 |
|||
|
Rotating speed (r/min) |
0-2 |
|||
|
Rotationangle |
360° |
|||
|
Supporting leg |
four sets hydraulic legs |
|||
|
Span of supporting legs |
Horizontal |
3500mm |
||
|
longitudinal |
4000mm |
|||
|
Boomcontrol mode |
1.Bucket control 2.Manual operation |
|||
|
Supporting legs |
Four hydraulic supporting legs with manual operation |
|||
Widely used in municipal, electric power, street lamp, advertising, communication, photography, landscape, shipbuilding, transportation, wharf, airport port, emergency rescue, large industrial and mining enterprises and other industries of the installation and maintenance and climbing operations.
The aerial truck is used to provide temporary access for people or equipment to inaccessible areas, usually at height.
ISUZU Aerial Work Platform Truck, also called man lift truck, is a mechanical device and used for temporary, flexible access purposes.
It is wireless Aerial Platform Truck. The vehicle has three operation ways : platform operation, operating on the ground, and remote control operation, which is safe, reliable and high efficiency.
It is wireless Aerial Platform Truck. The vehicle has three operation ways : platform operation, operating on the ground, and remote control operation, which is safe, reliable and high efficiency.
It is 4500mm wheelbase Bucket Booming Truck. The vehicle provides people to work in 22 meters aerial platform bucket.
