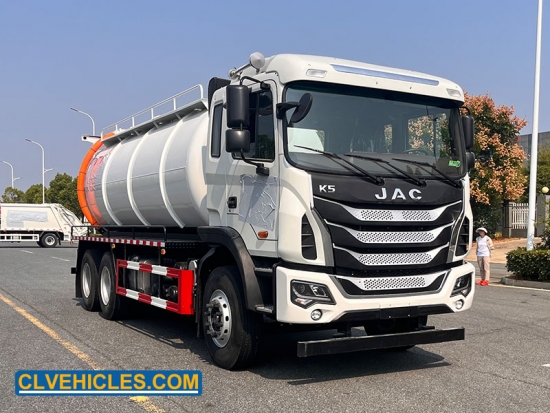

JAC 17CBM 10 wheeler 290HP Vacuum Sewage Suction Truck

JAC 17CBM 10 wheeler 290HP Vacuum Sewage Suction Truck

The JAC 17CBM 10-Wheeler 290HP Vacuum Sewage Suction Truck is a high-capacity, heavy-duty solution for efficient wastewater collection and sewer cleaning. Built on a robust JAC 6x4 chassis with left-hand drive and powered by a 290hp CA6DLD-29E6 engine, it delivers strong performance and reliability. The truck features a 17,000-liter sewage tank made of 8mm thick carbon stainless steel, ensuring durability and corrosion resistance, and is equipped with a 2BE-204 vacuum pump for powerful suction of sludge and solid waste. Designed for municipal sanitation and industrial applications, this medium-volume sewer cleaning truck offers excellent efficiency, large capacity, and dependable operation in demanding environments.

Quick Details

Applications

These powerful and efficient vacuum tank truck are designed to vacuum up and recover a wide range of different materials, from liquids, solids, thick sludge , all while leaving the surface below safe and clean.
Vacuum tanker is a tank truck that has a pump and a tank. The pump is designed to pneumatically suck liquids, sludges, slurries, or the like from a location (often underground) into the tank of the truck. The objective is to enable transport of the liquid material via road to another location. Vacuum trucks transport the collected material to a treatment or disposal site, for example a sewage treatment plant.

Competitive Advantages

1, The vacuum pump and hydraulic system are driven by the engine power through the power take-off(PTO).

2, The suction truck is equipped with a level inspection window and a self-flowing port, a hand washing device, an anti-overflow valve, a suction pipe of 8 meters, a hydraulic opening of the rear door, and a SK-15 water circulation vacuum pump. The suction truck has a large suction stroke and suction. Besides, the tank has a lifting function.

3. The inside of the tank is made of epoxy resin with a thickness of 120 microns (three-pass process), which not only has anti-corrosion effect, but also has anti-seepage and plugging effects.

4, The outer part of the tank is sprayed with iron red alkyd antirust paint, which has good adhesion and strong anti-rust ability.

5, Italy or Spain vacuum pumps ，Stainless steel， Anti-rust coating inside tank if necessary.

Product Details

 1. All-Wheel Drive (AWD) Capability

•High Ground Clearance: The elevated ground clearance ensures that the truck can navigate through obstacles and maintain smooth operation in challenging conditions.

2. Dual Functionality: Suction and High-Pressure Washing

•High-Pressure Washing: Equipped with a high-pressure water pump, the truck can deliver water at up to 200 bar, making it ideal for cleaning sewers, streets, and other surfaces. The adjustable nozzles allow for precise control over water flow, from fine misting to high-pressure spraying.

3. Large Capacity Tank

•Durable Tank Construction: The water tank is constructed from high-quality, corrosion-resistant materials, ensuring longevity and reliability in various environments.

4. Powerful Engine

•Reliable Performance: The robust engine ensures consistent and reliable performance, even under heavy loads and demanding conditions.

Customer Services

Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings

After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck According to your request, choose good chassis and refit it to truck. Upper Body Supply only upper body without chassis. According to your chassis drawing, design function parts. Customization Communicate with engineer,making design drawings and produce customized products. Spare Parts Supply all kinds of spare parts on chassis and upper body,replace main parts on trucks as tank and box.

Product Parameters
