This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
Featuring full hydraulic operation, it includes a high-pressure hydraulic filter, two-way balance valves, and special hydraulic lines suitable for plateau conditions. A PLC control system ensures precise operation, while a built-in sewage tank prevents leakage during transport.
Brand:
CLVEHICLES.COMModel No.:
CLW5045ZZZ6SLMinimum Order Quantity:
1 UnitPrice:
USD 21500Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcJAC 8000L Compactor Garbage Waste Compression Truck

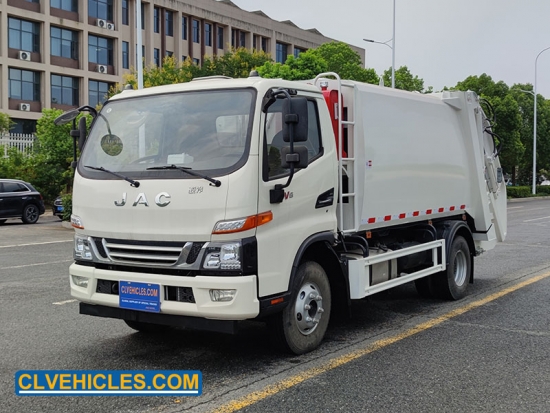

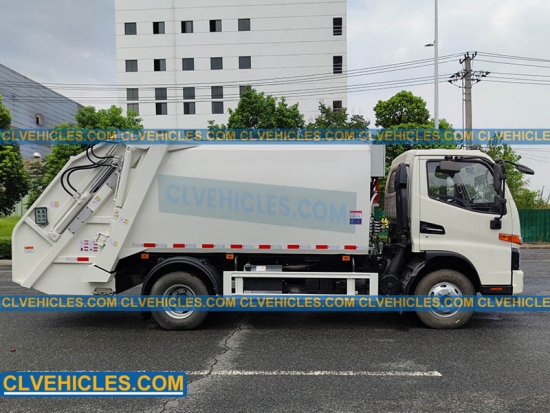

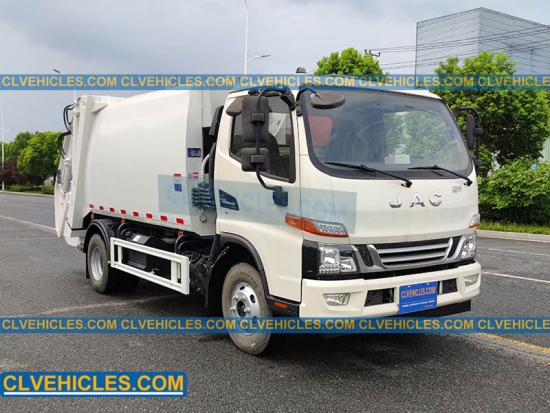

The JAC 8000L Compactor Garbage Waste Compression Truck is an efficient urban waste collection vehicle designed for reliable daily operation. Built on a JAC 4x2 chassis with a 115hp Q23-115E60 engine, it offers strong performance and fuel efficiency. The 8CBM compactor body is constructed with durable Q345 steel (4mm side and floor) for long-term durability.
Featuring full hydraulic operation, it includes a high-pressure hydraulic filter, two-way balance valves, and special hydraulic lines suitable for plateau conditions. A PLC control system ensures precise operation, while a built-in sewage tank prevents leakage during transport. Ideal for municipal sanitation, this truck delivers excellent compaction efficiency, environmental protection, and low maintenance for urban waste management needs.
Quick Details
| Chassis Brand | JAC |
| Volume of Garbage Tank | 8000L |
| Filling Cycle Time | 50-60s/once |
|
Hydraulic Pressure |
16Mpa |
Applications
The garbage compactor truck (garbage compacting truck) is used to collect, transport and clearing up wastes, advoiding the secondary pollution. Features of the garbage dump truck, one kind of new environmental truck, are easy, effective, and enviromental.
Garbage compactor truck is widely used in sanitation organization, municipal administration, mining area, property area, residential area, and many other places where garbage is centralized.
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Truck Specification |
||||
|
Cab |
Single row cab |
|||
|
Driving Type |
4*2 Left hand driving |
|||
|
Max Speed (km/h) |
115 |
|||
|
Overall dimension（mm） |
6865×1870×2200 |
|||
|
GVW（ kg） |
7000 |
|||
|
Mass in working order（ kg） |
4460 |
|||
|
Wheelbase（mm） |
3365 |
|||
|
F/R track base（mm） |
1569/1530 |
|||
|
F/R overhang（mm） |
1068/1997 |
|||
|
Approach/Departure Angel |
22/25 |
|||
|
Tire |
7.50R16 |
|||
|
Clutch |
Single-plate dry diaphragm spring clutch |
|||
|
Steering |
Hydraulic steering with power assistance |
|||
|
Gear box |
5-speed |
|||
|
Bridge |
Front axle |
3.2T |
||
|
Rear axle |
7.2T |
|||
|
Enging |
Model |
D30TCIF2 |
||
|
Fuel Type |
Diesel fuel |
|||
|
Type |
Water-cooled four-stroke,, direct injection, turbocharged |
|||
|
Exhaust（ml） |
2977 |
|||
|
Max output power/rotate speed (hp /rpm ) |
163/2800 |
|||
|
Braking system |
Service Brake |
Compressed air brake |
||
|
Park Brake |
Spring energy |
|||
|
Auxiliary brake |
engine exhaust brake |
|||
|
Eletric system |
24v |
|||
|
Upper-Body specification |
||||
|
Material of tank |
material : Q235，Thickness :4(mm) side /4(mm) rear |
|||
|
dirty tank volume |
8m³ |
|||
|
filler volume |
500L |
|||
|
filing time(s) |
8~10s |
|||
|
filling cycle time(s) |
50~60s/once |
|||
|
Discharge type |
Dumping |
|||
|
Time for dumping |
30-40S |
|||
|
Hydraulic pressure |
16mpa |
|||
|
Controlling way |
Manualy and electrical control |
|||
|
Hydraulic pump |
532 model |
1 set | ||
|
Multi-way valve |
DL-15B-6 |
1 set | ||
|
Flap cylinder |
80/45-410*180 |
2 set | ||
|
Lifting cylinder |
80/45-900*580 |
2 set | ||
|
Scraper cylinder |
80/45-700*415 |
2 set | ||
|
Skateboard cylinder |
90/50-980*670 |
2 set | ||
|
Push plate cylinder |
YSTB-1180*2420 |
1 set | ||
|
The electromagnetic valve |
UZCT-115/24V |
2 set | ||
Compression standard: high-quality carbon steel box of WISCO, strengthen the base plate with support, two-way compressed, easy to clean sewage box open mode, filler for overall concentric shaft structure.
Compression garbage collection truck adopts domestic advanced design concept, with the characteristics of uniform force, stable structure and reliable performance.
Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.
Compactor garbage truck is the new type of sanitation vehicle that for collects and transfers the garbage, avoid secondary pollution.
The compactor garbage truck adopts PLC mechine Electro-hydraulic integration, control system. Through the car filler device and other special equipment to achieve garbage into, strong filling.
Garbage Compactor Hydraulic system is equipped with dual pumps and dual circuits (popular in Europe) to improve the energy efficiency.The materials of upper parts fundamentally guarantee the performance and service life.
