JINBEI HAISE 4wheels High Quality Transport First Ad Ambulance

The ambulances ensure safe driving and are equipped with the intimate protection of double airbags that are rare in commercial vehicles.


  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CLW5033XJHL-D3S1BH
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 15,500 FOB Shanghai
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

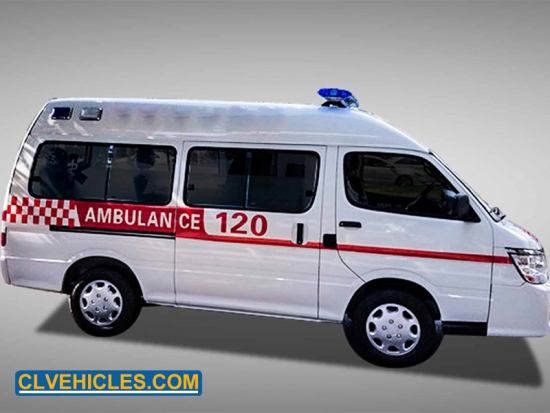

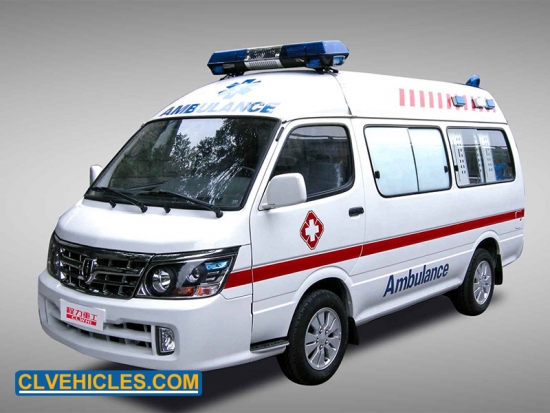

JINBEI HAISE transit petrol ambulance car


JINBEI HAISE ambulance adopts the enhanced body structure of the load-bearing boron steel, high-strength galvanized sheet, effectively absorbs the impact brought by the impact, achieves higher yield strength, streamlined appearance, and can effectively guide ambient airflow, reduced air resistance when driving and fuel consumption help to improve vehicle stability and engine cooling conditions. The interior of the body has good ventilation.


Quick Details



Size of ambulance
5070×1690×2405
A/C
Include
Chassis brand
JINEBEI HAISE
Horsepower
100hp(Euro 5)
Outside
Provide free logo design,both sides doors  pasted with cross mark
Oxygen supply system

One 10-liter oxygen cylinders

One directly connected oxygen cylinder with oxygen pressure reducing valve

First aid
Automatic loading stretcher, sliding infusion stand with 2 sets of infusion bottle hooks, fire extinguisher

Applications


Ambulance designed and equipped for the treatment, monitoring and transportation of critically ill patients. Ambulance equipped with first aid resuscitation equipment and essential medicines that can rescue critically ill or injured persons on site or during transportation.

Transfer type: transporter ambulance is the most common ambulance that can be used to transport patients with relatively stable condition to hospital. Only some simple medical treatments such as infusion, oxygen inhalation, hemostasis, bandaging and so on are allowed in transit.

Guardianship type: guardianship ambulance refers to the possession of first aid recovery equipment and necessary drugs, capable of rescuing critically ill and injured people at the scene or in transit.

ambulance car


Competitive Advantage



1. The wide space of the medical emergency ambulance in the top of the center axis of the whole line, together with the humanized configuration such as the front and rear stereo air conditioning, creates a more comfortable driving experience for you.


2. High speed for transportation.


3. Ambulance equipped with complete medical equipment.


4. King of cost performance.


Product Details






Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



Chassis Specification

Truck model

CLW5033XJHL-D3S1BH

Cab

JINBEI HAISE CABIN

Driving Type

4*2 Left hand driving

Max Speed (km/h)

130

Overall dimension(mm)

5070×1690×2405

Ambulance Van dimension (mm)

2800×1600×1780

GVW(kg)

2900

Mass in working order(kg)

1780

Wheelbase(mm)

2590

Approach/Departure Angel

14/12

Tire

195/70R15C

Clutch

Single-plate dry diaphragm spring clutch

Steering

Hydraulic steering with power assistance

Gear box

5-Speed gear box

Suspension

Front

Front independent suspension

Rear

Rear suspension leaf spring

Engine

Model

4G19(Euro 5)

Fuel Type

Petrol

Type

In-line four-cylinder four-stroke water-cooled naturally aspirated 8-valve side camshaft

Exhaust(ml)

1997

Max output power/ rotating speed(hp/rpm)

100/4600

Max Torque/rotating speed(nm/rpm)

178/3200

Braking system

Service Brake

Air brake and dish brake

Park Brake

Spring energy

Electric system

24v

Upper-Body specification

Basic configuration

Medical warehouse air conditioning and heating

Circuits and medical appliances

Alarm and warning system

Long Row Standard Police Lights

100 watt siren and handheld control

power supply system

500 watt power inverter

220v power port

control system

Medical warehouse seesaw control switch

Oxygen supply system

one10-liter oxygen cylinders, special shock-absorbing clamps

One directly connected oxygen cylinder with oxygen pressure reducing valve

humidification bottles

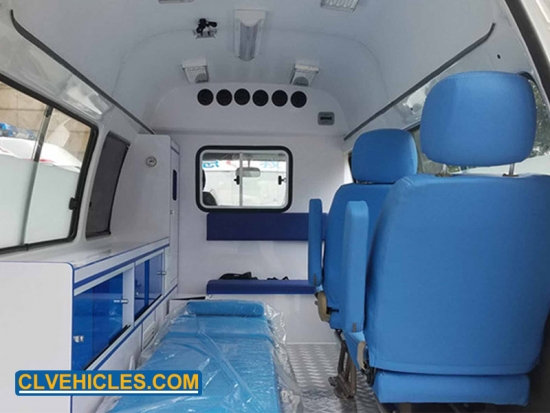

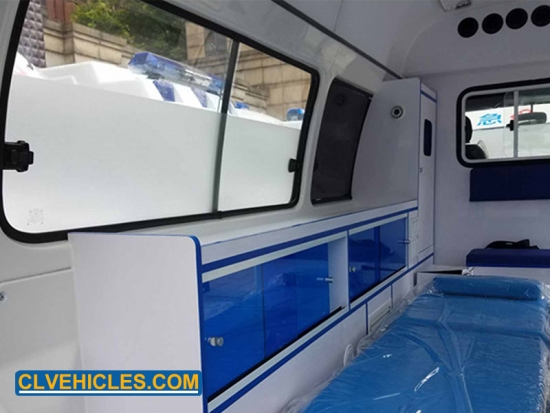

Medical warehouse interior

Original car interior,

partition wall,

push-pull observation window on the partition wall,

pill cabinet behind the partition wall,

fixed oxygen cylinder beside the pill cabinet,

long seat belt and seat belt pre-buried, medical floor leather

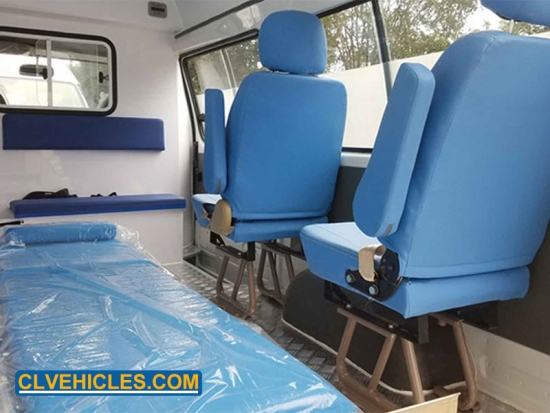

Seat system

2 seat long soft seat on the right,

one forward seat on the right

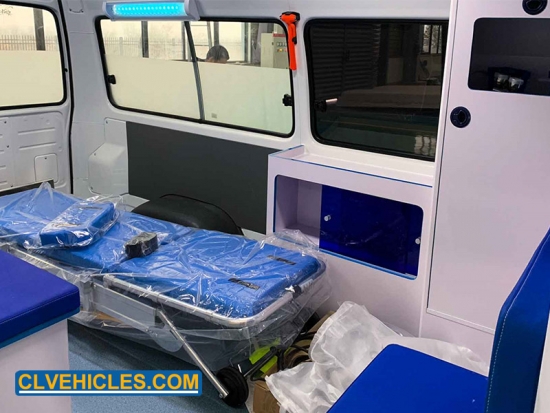

First aid

Automatic loading stretcher,

sliding infusion stand with 2 sets of infusion bottle hooks,

fire extinguisher

Exterior

Black solar film on the left side of the medical warehouse, semi-transparent frosted film on the right and rear sides, cross signs on the left and right doors
