LPG storage tank, the nozzle of pressure gauge and thermometer is flange type, there are underground tank and horizontal tank available.
Brand:
CLVEHICLES.COMModel No.:
CL20190599Minimum Order Quantity:
1 UnitPrice:
USD30600Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc50CBM LPG Propane Tank 50000L LPG Gas Storage Tank For Sale
Liquefied petroleum gas (LPG) storage tanks include compressed gas storage tanks or liquefied gas storage tanks, etc. The LPG storage tanks can be divided into fixed volume storage tanks and movable volume storage tanks according to the volume change of the containers. Large fixed volume LPG storage tanks are made into spherical shape, while small ones are made into cylindrical shape.The movable volume storage tank is also known as the low pressure gas storage tank, commonly known as the gas cabinet. Its geometric volume can be changed, and it is sealed tightly without air leakage. It has the function of balancing the air pressure and regulating the air supply, and the pressure generally does not exceed 60MPa.
Quick Details
| Material of tank | Carbon steel Q345R |
|
Propane tank capacity |
100000 liter |
|
Design temperature |
50℃ |
|
Design pressure |
1.77Mpa |
|
Leak test pressure |
1.77Mpa |
|
Hydraulic test pressure |
2.3Mpa |
Applications
LPG storage tank is widely used in the gas industry, hospitals, metal smelting,filling stations and liquefaction plants and other large gas users, is to achieve the best central air supply products.
|
|
|
|
Our LPG tanker trailer is made of Q345R steel which is specialized for pressure vessel 100% X-ray inspection |
Emergency shut off valve fore safety |
|
|
|
|
Double side for discharge and loading ,double tool box and valve box |
LPG dispenser optional with automatic fault detection and overload protection |

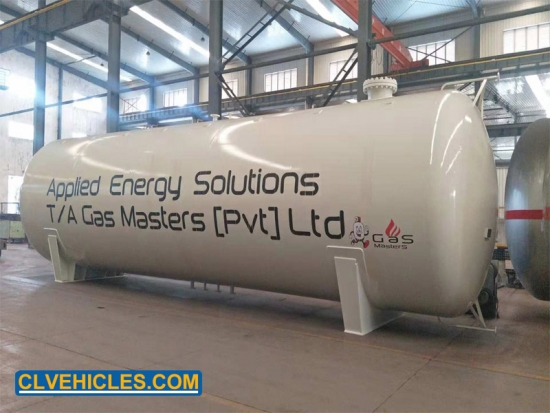

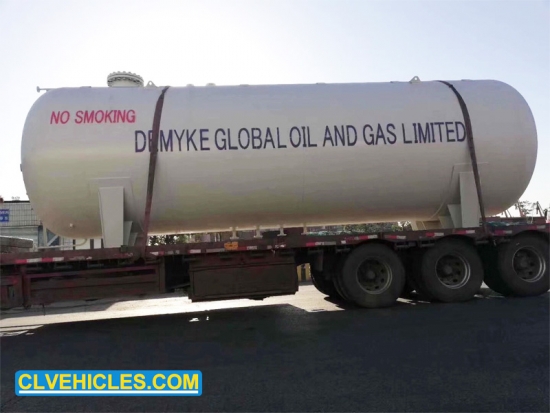

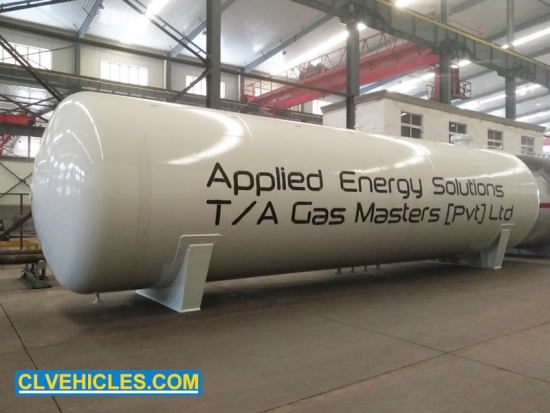

Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Parameter of100cbm50tonsLPG Storage Tank |
||||||
|
ITEM |
PARAMETER |
ITEM |
PARAMETER |
|||
|
Volume |
100M3 50Ton |
Thickness of Shell |
16mm |
|||
|
Tank Material |
Carbon SteelQ345R |
Thickness of End plate |
18mm |
|||
|
Overall Size |
13866*3132*3722mm |
Tank Net Weight |
20410kg |
|||
|
Tank Diameter |
3100mm |
Loading Capacity |
39900kg |
|||
|
Design Pressure |
1.77Mpa |
Gas Density |
500~590kg/M3 |
|||
|
Hydraulic Test Pressure |
2.22Mpa |
Corrosion Allowance |
1mm |
|||
|
Design Temperature |
-20℃~50℃ |
Heat Treatment |
Bulk |
|||
|
Vapor Outlet |
DN80 |
Gas Outlet |
DN80 |
|||
|
Designed Life time |
15 years |
|
|
|||
|
Listfor Accessories like follows |
||||||
|
Model |
Item |
Qty |
Junction surface |
|||
|
J41N-2.5-50 |
Stop Valve DN50 |
6 |
RF |
|||
|
J41N-2.5-25 |
Stop Valve DN25 |
2 |
RF |
|||
|
J41N-2.5-80 |
Stop Valve DN80 |
1 |
RF |
|||
|
J24W-320-DN6 |
J24W Needle Valve M20*1.5 |
1 |
|
|||
|
HG21584-95 |
Magnetic plate level Gauge UZFAL-2.5RF-3040-0.5 |
1 |
RF |
|||
|
A42F-25-100 |
Safety Valve DN80 |
1 |
RF |
|||
|
Y-100T |
Pressure Gauge M20*1.5 1.5degree 0~4Mpa |
1 |
|
|||
|
WTQ-280 |
Thermometer M33*2 2.5 degree |
1 |
-40℃~60℃ |
|||
Tank shaped use the advanced welding technology, end socket arc butt welding, and the once-forming of composite steel-plastic technology. Equipped with active and passive safety devices to meet an emergency and can load and unload the material in long distance and completely close condition.
The lpg storage tank is made of special material Q345R. As a professional lpg storage tank manufacturer in China, we have the aptitude to design and manufacture A2 type of pressure vessel,the manufacturing processing of lpg storage tank is complex and strict. All the lpg gas tanks must do nondestructive examination, air tight test, hydrostatic test and any other inspections.
The lpg storage tank is also called LPG gas tank for sale, lpg tank, lpg gas tank, lpg gas storage tank,bulk lpg storage tanks, etc. The lpg storage tank is belong to pressure vessel.It mainly used to store up liquid petrolum gas, propane.
CLVEHICLES has the design and fabrication capability of household storage tank and stationary storage tank, including above-ground storage tank, underground storage tank, horizontal storage tank, and vertical storage tank etc., which is customized according to the customers' requirement.
Our factory is a professional LPG tank manufacturer in China, our products fully passed ISO9001-2000 international quality system and 3C authentication.We have the biggest LPG trailer in the world, the valid volume is 58.5cbm, low transport costs, more profit.
LPG storage tank is a professional product for storing liquefied petroleum gas (LPG). It is a special equipment, a type of pressure vessel, Q345R material.
