DONGFENG 4x2 Light-duty 25m Concrete Pump Truck

The one button stabilization technology quickly dampens any boom movement resulting from repositioning the boom. This allows precise positioning of the end hose.

Brand:
CLVEHICLES.COM
Model No.:
CLWHNTBC25-3M
Minimum Order Quantity:
1 Unit
Price:
USD 97,100 FOB Shanghai
Payment Terms:
T/T, L/C, Western Union
Delivery Time:
25~35 days after we get the deposit
Shipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc

Contact Now

Overview
Parameters

Dongfeng light-duty 25m concrete pump truck-mounted concrete pump

It is highly reliable and durable with seven technical highlights. More advanced boom structure technology, More efficient rock valve pumping technology, Steadier stabilizer structure technology, Steadier reversing buffering technology, more reliable fully-hydraulic reversing technology, Ultra-low pressure loss hydraulic system technology, safer and smarter electrical control system.

Quick Details

Chassis brand	Dongfeng
Dimension of vehicle	9910x2300x3535mm
Gross weight of vehicle	15900kg
Placeing boom at Max. height/depth/radius	25.2/21.6/10.5m
Ratating angle of each arm	90°/180°/360°
Max. Concrete outlet pressure	10.5/8.5Mpa
Conveying cylinder inner diameter/stroke	Φ200x1450mm
Feeding height	1450mm
Concrete distribution valve form	S tube

Applications

The concrete pump truck is a modern construction machinery that integrates the transportation of finished concrete and the pouring process, to continuously, uniformly and promptly convey the premixed concrete to the form-work.

The application of pump trucks and the superiority of the pumping process make the pump trucks widely used in the construction of large concrete structures such as:
1) high-rise and super-high-rise buildings;
2) underground and tunnel projects;
3) port docks and dam projects;
4) roads and bridges and culvert projects.

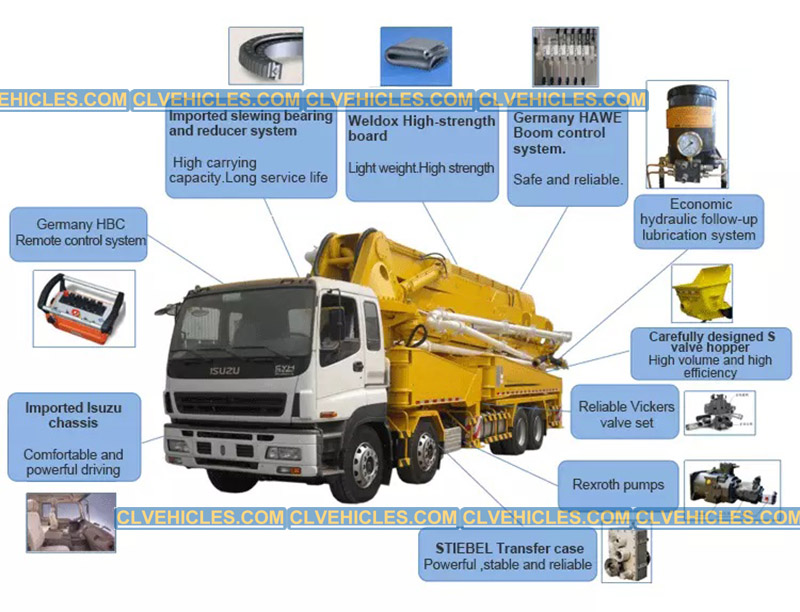

concrete pump truck

Competitive Advantage

A. The continuous working pumping system blocks the segregation of concrete, hence the slump of the concrete will not be amplified, which visibly guarantees the quality of the construction operation.

B. The concrete pump truck concurrently solves the horizontal and vertical transportation also, pouring problems of concrete with high mechanization required few labor. The construction organization is simple yet suitable for structural materials thanks to high compressive strength it occupies.

C. The concrete pump truck casting operation requires continuous operation, with high construction efficiency and fast operation progress. Additionally, the similarity of expansion coefficient of concrete and steel bar resulted in intensive bonding strength contributing to reinforced concrete with a wider application range.

D. The concrete pump truck posses strong adaptability to the construction work surface with wide range of operations, the pipeline can be laid to places that are difficult to reach by other equipment. The concrete pump truck can fill and cast the concrete in place under a certain pressure, and also can be used in series to increase the output distance required during construction.

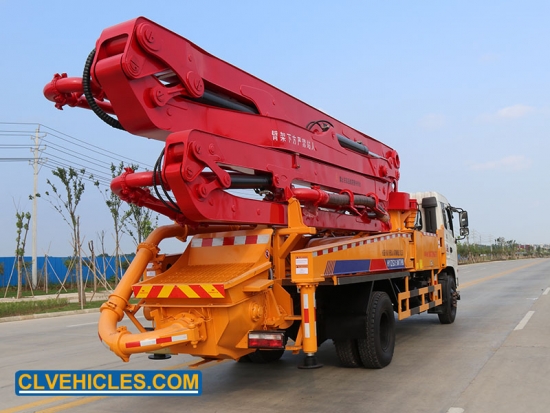

concrete pump truck

Product Details

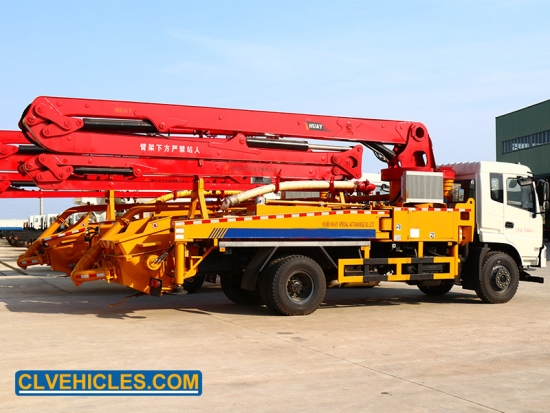

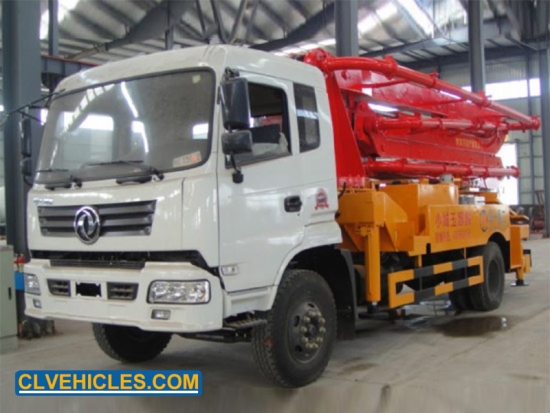

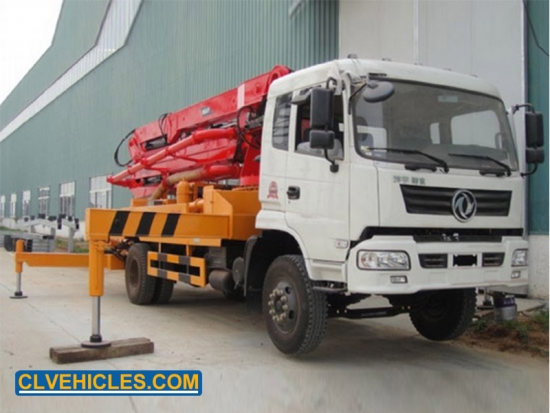

concrete pump truck

Customer Services

Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings

After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.

Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.

Customization
Communicate with engineer,making design drawings and produce customized products.

Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.

Product Parameters

Preview		Type			Concrete Pump Truck
		Model			CLWHNTBC25-3M
		Origin			China
		Drive			4×2
		Boom Height/Radius/Depth (Max.)			25.2/21.6/10.5m
		Gross vehicle weight			15,900kg
		Dimension			9910×2300×3535mm
PARAMETER
A	Vehicle
1.	Chassis		Brand			DONGFENG		-
			Class			Light-duty		-
			Wheel			Left hand		-
			Steer			Power-assisted		-
			Cabin			2 Passengers		-
			Tyre			9.00R20 16PR
			Wheelbase			4700		mm
			Speed			85		km/h
2.	Engine		Brand			Cummins		-
			Manufacturer			Dongfeng		-
			Model			ISB180 40		-
			Fuel			Diesel		-
			Type			Water cooling		-
			Intake			Turbocharged		-
			Form			Electronic control		-
			Cylinder (arrangement)			6 (In-line)		-
			Displacement (standard)			5900 (EURO IV)		ml
			Theoretical output			180/132		hp/kw
			Developed torque			630		N·m
			Rated Speed			2500		rpm
			Bore×stroke			102×120		mm
B	Bodywork
3.	Placing boom		Distribution valve			S-type		-
			Folding form			M-type		-
			Number of boom			3		-
			Rotating angle of each arm			90/180/360		°
			Rotating angle of Turntable			±90		°
			Boom height/radius/depth (Max.)			25.2/21.6/10.5		m
			Conveyor concrete pipe inner diameter			125		mm
			Conveyor cylinder inner diameter×stroke			Φ200×1450		mm
			End hose length			3		m
			Feeding height			1450		mm
			Aggregate size (Max.)			40		mm
			Hopper capacity			650		L
4.	Pumping system		Theoretical Value	Pressure limit		High	Low	-
				Pumping pressure		10.5	8.5	mpa
				Pumping frequency		18	26	min-1
5.	Hydraulic drive		Lubrication methodology			Centralized		-
			Cooling methodology			Air-cooled		-
			Cleaning methodology			Water flush (Air/plunger pump)		-
			Hydraulic system structure			Open loop		-
			Hydraulic system pressure			31.5		mpa
			Hydraulic oil tank			400		L
			Main oil pump displacement			140		ml/r
