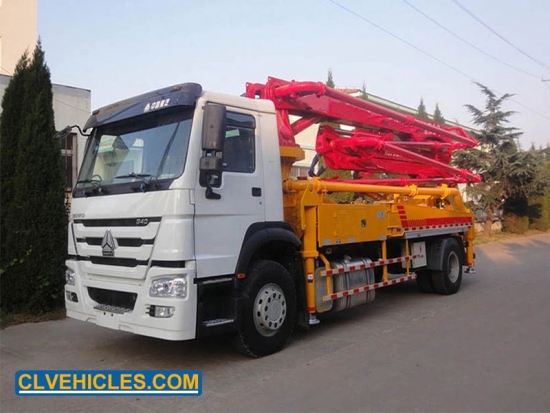

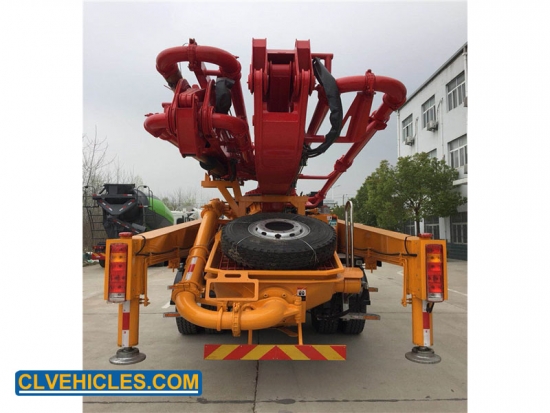

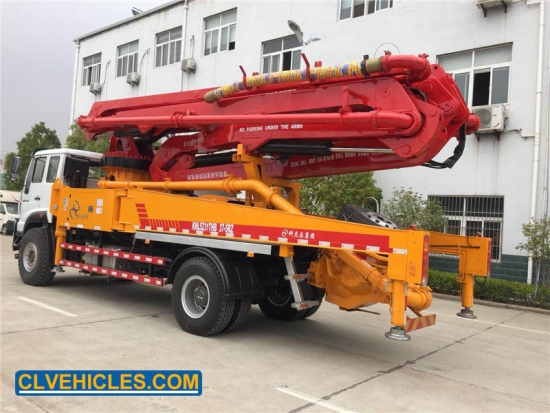

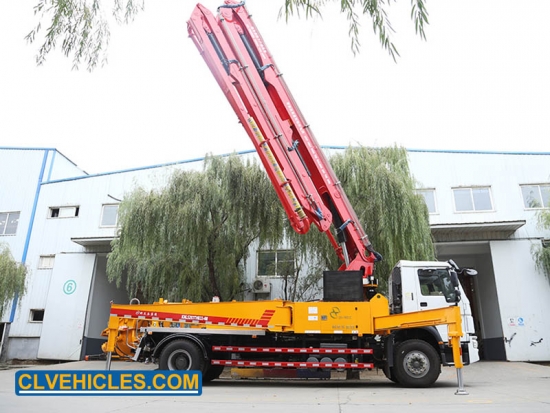

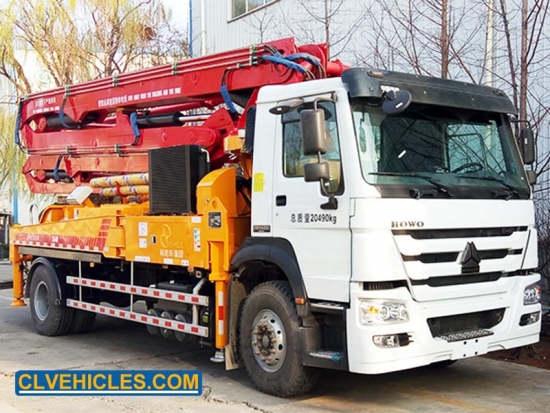

HOWO heavy-duty 35m concrete pump truck / 6x4 Sinotruck 35m truck-mounted concrete pump
HOWO 35M truck-mounted concrete pump has 35m vertical reach with the height limit programmed to prevent boom contact
with an obstruction or overhead hazard. The 35m concrete pump provides the
users reliable pumping performance along with the highly wear resistant parts
including delivery pipe, discharge port, transition bushing, concrete piston,
wear plate, cutting ring and delivery cylinder that improve the pumping
efficiency and reduce time.
Quick Details
12/7Mpa
Chassis brand
HOWO (Sinotruk)
Dimension of vehicle
10650x2300x3850mm
Gross weight of vehicle
24900kg
Placeing boom at Max. height/depth/radius
35.3/19/30.4m
Ratating angle of each arm
90°/180°/235°/180°/180°
Max. Concrete outlet pressure
Conveying cylinder inner diameter/stroke
Φ230x1650mm
Feeding height
1450mm
Concrete distribution valve form
S tube
Applications
The concrete pump truck is a modern construction machinery that integrates the transportation of finished concrete and the pouring process, to continuously, uniformly and promptly convey the premixed concrete to the form-work.
The application of pump trucks and the superiority of the pumping process make the pump trucks widely used in the construction of large concrete structures such as:
1) high-rise and super-high-rise buildings;
2) underground and tunnel projects;
3) port docks and dam projects;
4) roads and bridges and culvert projects.
Competitive Advantage
A. The continuous working pumping system blocks the segregation of concrete, hence the slump of the concrete will not be amplified, which visibly guarantees the quality of the construction operation.
B. The concrete pump truck concurrently solves the horizontal and vertical transportation also, pouring problems of concrete with high mechanization required few labor. The construction organization is simple yet suitable for structural materials thanks to high compressive strength it occupies.
C. The concrete pump truck casting operation requires continuous operation, with high construction efficiency and fast operation progress. Additionally, the similarity of expansion coefficient of concrete and steel bar resulted in intensive bonding strength contributing to reinforcement.
D. the expansion coefficient of the concrete that similar to the steel bar resulted in intensive bonding strength and then made into reinforced concrete with a wider application range.
E. The concrete pump truck posses strong adaptability to the construction work surface with wide range of operations, the pipeline can be laid to places that are difficult to reach by other equipment. The concrete pump truck can fill and cast the concrete in place under a certain pressure, and also can be used in series to increase the output distance required during construction.
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Truck Specification |
|||
|
Model |
CLW5200THB |
- |
|
|
Cab |
HOWO HW76 half row with a/c |
- |
|
|
Driving Type |
4*2 left hand driving |
- |
|
|
Max. Speed |
99 |
Km/h |
|
|
Overall dimension |
10800*2496*3820 |
mm |
|
|
GVW |
20490 |
Kg |
|
|
Mass in working order |
20360 |
Kg |
|
|
Wheelbase |
5600 |
mm |
|
|
Tire |
12R22.5 |
- |
|
|
Clutch |
Single-plate dry diaphragm spring clutch |
- |
|
|
Steering |
Hydraulic steering with power assistance |
- |
|
|
Gear box |
(HW19710) 10 font speed +2 rear speed |
- |
|
|
Electric system |
24 |
V |
|
|
Track base |
Front |
2022 |
mm |
|
Rear |
1830 |
||
|
Overhand |
Front |
1500 |
mm |
|
Rear |
2785 |
||
|
Angel |
Approach |
16 |
° |
|
Departure |
14 |
||
|
Braking system |
Service Brake |
Air brake |
- |
|
Park Brake |
Spring energy |
||
|
Bridge |
Front axle |
HF7 |
- |
|
Rear axle |
ST16 |
||
|
Engine |
Model |
WD615.69 |
- |
|
Fuel |
Diesel |
- |
|
|
Type |
Water-cooling |
- |
|
|
Form |
Dire injection |
- |
|
|
Intake |
Turbocharged |
- |
|
|
Cylinder (arrangement) |
6 (In line) |
- |
|
|
Exhaust (Standard) |
9726 (Euro II) |
ml |
|
|
Max. Output power |
336/247 |
hp/kw |
|
|
Max. Rotate speed |
2200 |
rpm |
|
|
Max. Torque |
1350 |
N·m |
|
|
Max. Torque speed |
1100-1600 |
rpm |
|
The boom can be rapidly and accurately repositioned by coordinating the movement the first and second sections. Strong power system reduced the rate of occurring faults.
The one button stabilization technology quickly dampens any boom movement resulting from repositioning the boom. This allows precise positioning of the end hose.
The concrete pump truck is a specially designed product among the middle and short arm pump truck, fill in the blank of truck-mounted concrete boom bump with short and medium jib structure.
Effectively mitigate the boom jittering during the pumping process, with amplitude of vibration decreasing by 50%, and the terminal hose is running steadily.
The elements of electrical controlling system is adopted Japan and Gemany's original parts. The excellent assembly quality fully guaranteed the function of electrical controlling system.
It is suitable for housing, roads, canals, dams, tunnels, mines, railways, electricity, bridges, ports and other concrete delivery, with high efficiency, low cost, economical and practical.
