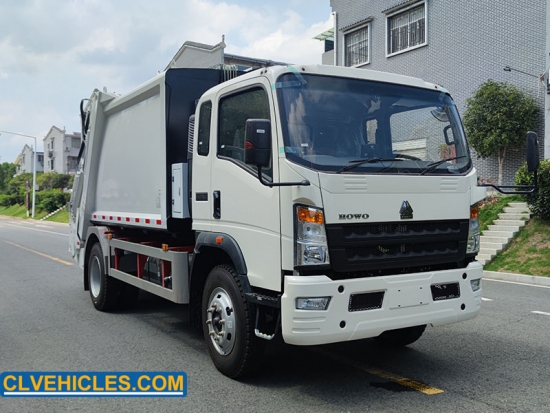

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcHOWO 4x2 RHD 10CBM Waste Trash Compactor Truck
The HOWO 4x2 RHD 10CBM Waste Trash Compactor Truck is designed for efficient waste collection and transportation. Featuring a 10 cubic meter compactor body, it compresses garbage to maximize capacity and reduce trips. Built on a durable 4x2 chassis with right-hand drive (RHD), it offers reliable performance in urban and rural environments. With strong compaction force and smooth hydraulic system, it enhances productivity while reducing operational costs. A practical solution for modern, clean city sanitation needs.
Quick Details
| Chassis Brand | HOWO |
| Volume of Garbage Tank | 10CBM |
| Filling Cycle Time | 50-60s/once |
|
Hydraulic Pressure |
16Mpa |
Applications
The garbage compactor truck (garbage compacting truck) is used to collect, transport and clearing up wastes, advoiding the secondary pollution. Features of the garbage dump truck, one kind of new environmental truck, are easy, effective, and enviromental.
Garbage compactor truck is widely used in sanitation organization, municipal administration, mining area, property area, residential area, and many other places where garbage is centralized.
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Truck Specification |
|
||
|
Truck model |
CLW5110ZYSZ2 |
||
|
Cab |
HOWO 2080 single row cab ,forward control type , all welded steel cab of tilt type, mechanical cab tilting, rear mechanical cab suspension , adjustable driver seat,Air Conditioner ,manual window、manual lock |
||
|
Driving Type |
4*2 RIGHt hand driving |
||
|
Max Speed (km/h) |
99 |
||
|
Overall dimension（mm） |
7595×2150×2200 |
||
|
GVW（kg） |
11000 |
||
|
Mass in working order（kg） |
6500 |
||
|
Wheelbase（mm） |
4500 |
||
|
F/R track base（mm） |
1610/1505 |
||
|
F/R overhang（mm） |
1155/1632 |
||
|
Approach/Departure Angel |
18/16 |
||
|
Tire |
8.25R20 (6+1) |
||
|
Clutch |
Single-plate dry diaphragm spring clutch |
||
|
Steering |
Hydraulic steering with power assistance |
||
|
Gear box |
HW90510C210-speed front+2-speed reverse |
||
|
Bridge |
Front axle |
3T |
|
|
Rear axle |
8T |
||
|
EnginE |
Model |
YC4E160-33 |
|
|
Fuel Type |
Diesel fuel |
||
|
Type |
Water-cooled four-stroke,, direct injection, turbocharged |
||
|
Exhaust（ml） |
4257 |
||
|
Max output power/rotate speed (hp /rpm ) |
160/2600 |
||
|
Max torque/rotate speed(N.m/rpm) |
500/1600 |
||
|
Braking system |
Service Brake |
Compressed air brake |
|
|
Park Brake |
Spring energy |
||
|
Auxiliary brake |
engine exhaust brake |
||
|
Eletric system |
24v |
||
Compression standard: high-quality carbon steel box of WISCO, strengthen the base plate with support, two-way compressed, easy to clean sewage box open mode, filler for overall concentric shaft structure.
Compression garbage collection truck adopts domestic advanced design concept, with the characteristics of uniform force, stable structure and reliable performance.
Operation way: PLC control system; loading and discharging way: rear loading wastes bins mechanism; compacting way: Bi-directional compression; wastes compacting density≥0.8T/m³; one working circle time for loading and discharging ≤30s; max compressing force≥150KN; max passing force≥180KN.
Compactor garbage truck is the new type of sanitation vehicle that for collects and transfers the garbage, avoid secondary pollution.
The compactor garbage truck adopts PLC mechine Electro-hydraulic integration, control system. Through the car filler device and other special equipment to achieve garbage into, strong filling.
Garbage Compactor Hydraulic system is equipped with dual pumps and dual circuits (popular in Europe) to improve the energy efficiency.The materials of upper parts fundamentally guarantee the performance and service life.
