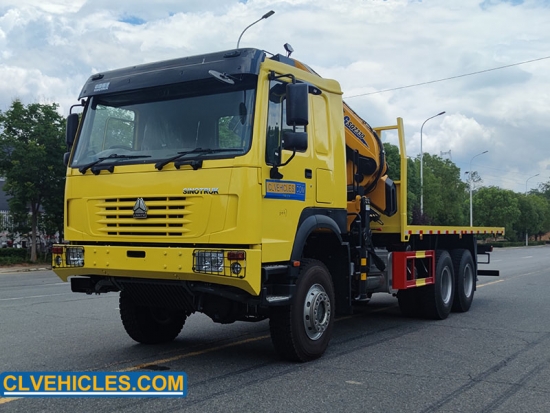

The HOWO 6X6 371hp 6.3m Flatbed Cargo Truck with 16-ton XCMG Crane is a powerful and versatile solution for heavy-duty transportation and lifting operations. Built on a rugged 6x6 all-terrain chassis, it delivers exceptional traction and stability in challenging environments.
Brand:
CLVEHICLES.COMModel No.:
CLW5250JSQASZMinimum Order Quantity:
1 UnitPrice:
USD 90800Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcHOWO 6X6 371hp Flatbed Cargo Truck With 16ton XCMG Crane
The truck is powered by a 371hp diesel engine, ensuring strong performance and reliability.It features a 6.3-meter flatbed for ample cargo space and is equipped with a high-quality 16-ton XCMG hydraulic crane, enabling efficient loading, unloading, and on-site lifting tasks. Ideal for construction, logistics, and infrastructure projects, this integrated truck-crane combination offers superior mobility, durability, and operational efficiency in demanding applications.
Quick Details
|
Chassis Brand |
HOWO |
|
Max.Lifting Capacity of Crane |
16000kgs |
|
Max.Lifting Torque |
333kN.m |
|
Max.Lifting Height |
16.1m |
| Crane working radius | 14.1m |
Applications
For general cargo lifting and other special things like timber and brick by changing other equipment.
|
|
|
|
Main boom material is HG70 high strength steel |
Strengthened hydraulic telescopic horizontal leg |
|
|
|
|
Automatic recovery device for hook.Double speed winch for heavy duty crane. |
Multiple modes and position of operation are optional. |
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
TECHNICAL PARAMETER |
|||
|
I. Chassis |
|||
|
Basis |
Model |
CLW5250JSQASZ |
|
|
Driving |
6×6 Right-hand drive (RHD) |
||
|
Chassis |
HOWO 76 single row cab with sleeper and full air conditioning,electric window,driver air seat
|
||
|
Wheelbase |
4600+1350 mm |
||
|
Max. Speed |
90 km/h |
||
|
Dimension |
10600×2600×3730 mm |
||
|
Curb weight |
14200 kg |
||
|
Tire |
Front |
12.00R20 |
|
|
Rear |
12.00R20 |
||
|
Axle |
Front |
STR |
|
|
Rear |
ST16*2 |
||
|
Transmission |
Gearbox |
HW19710,10-Speed with 2 Reverse(Manual) |
|
|
Steering gear |
Recirculating ball-type steering |
||
|
Brake |
Type |
Compressed air brake |
|
|
Auxiliary |
Engine exhaust brake available. |
||
|
Engine |
Type |
4 stroke, direct injection, water cooling,turbocharged |
|
|
Model |
WD615.47 |
||
|
Max. Power |
273 kw (371 hp) |
||
|
Bore×Stroke |
126×130 mm |
||
|
Torque |
1500N.m |
||
|
No. of cylinder |
6 (in-line) |
||
|
Emission rating |
EURO-II |
||
|
Fuel tank |
Capacity |
400l |
|
|
Steering |
Model |
ZF8098 steering box, whole circulation in ball type, hydraulic boosting. |
|
|
II. Upper-body (super structure) |
|||
|
XCMG Crane |
Model |
GSQZ330.5 |
|
|
Max lifting weight |
16000kg |
||
|
Max working radius |
14.1m |
||
|
Max lifting height |
16.1m |
||
|
Max lifting moment |
333kN.m |
||
|
Slewing angle |
400 degree rotate |
||
|
Outriggers
|
Type |
H-type |
|
|
Number |
2 sets in front 2 sets at rear |
||
|
Spam |
2342-7782mm |
||
|
Max working pressure |
31Mpa |
||
|
Oil tank capacity |
200L |
||
|
Dead weight |
4945kg |
||
|
Install space |
1400mm |
||
|
Safety device |
Overwind alarm |
||
|
Flatbed |
Size |
6300x2300mm |
|
|
Other |
With 12 sets twist lock |
||
Crane truck is grouped together as a means of transport.By the boom, lifting torque, frame, legs and other parts.Crane left and right operation can be both positive and negative 360-degree rotation, can also be full rotation.
Boom crane truck (also called knuckle crane truck,crane truck ,lorry mounted crane truck ,truck cargo with loader crane, articulated boom crane truck,crane mounted truck , boom crane truck ,truck with crane ,truck mounted crane,etc) is used to lift the cargo,load ,transport and unload heavy stuff.
A crane is a type of machine, generally equipped with a hoist rope, wire ropes or chains, and sheaves, that can be used both to lift and lower materials and to move them horizontally. It is mainly used for lifting heavy things and transporting them to other places.
Cranes are commonly employed in the transport industry for the loading and unloading of freight, in the construction industry for the movement of materials and in the manufacturing industry for the assembling of heavy equipment.
Truck mounted crane, is one of our main products,which is also named hydraulic truck crane, crane, mobile crane, truck mounted crane, lorry truck, lorry-mounted crane, lorry crane, truck with loading crane, truck cargo crane, derrick cargo truck, gantry crane.
Truck with crane is also named truck with loading crane.It widely used in municipal construction,Coal mine engineering ,landscaping , the other construction materials and other equipment hoisting and transportation.
