ISUZU 700P Box Truck with 4ton Telescopic Crane

More efficient,multiple hydraulic cylinders form a jointed boom connection mechanism, faster to get work done. Narrow working environment ,More suitable for the factory warehouse & other relatively narrow working environment


  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CL5110JSQQ1
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 37200
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

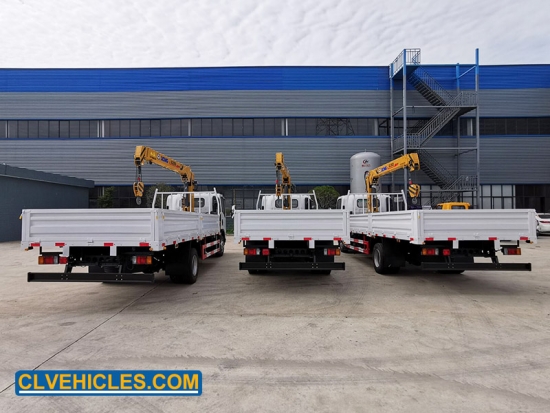

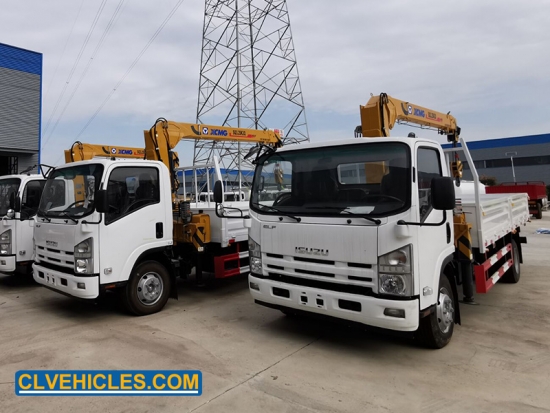

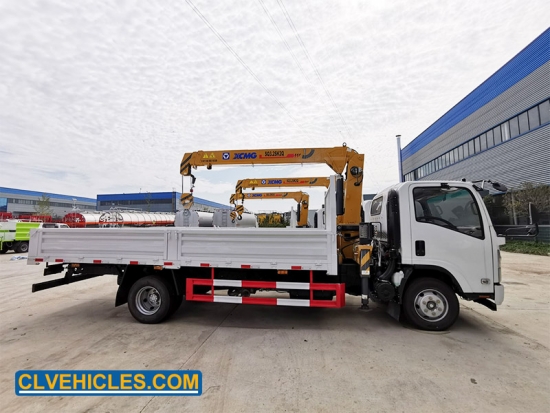

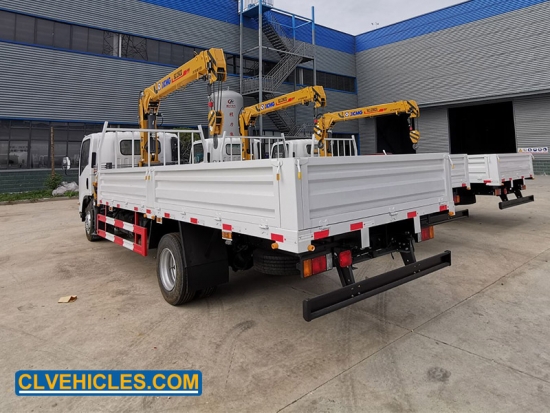

ISUZU 700P 4x2 190hp Euro5 LHD Box Truck with 4ton Telescopic Crane


Truck-mounted lifting truck, crane truck, is a kind of equipment for lifting, turning and lifting goods through hydraulic lifting and telescopic system, which is usually assembled on trucks. The lifting weights are 3 tons, 5 tons, 8 tons, 12 tons and more.


Quick Details


Chassis Brand

ISUZU 700P

Max.Lifting Capacity of Crane

4000 kg

Max.Lifting Torque

10 T.m

Max.Lifting Height

9.5m

Crane working radius 7.6m


Applications


For general cargo lifting and other special things like timber and brick by changing other equipment.




Competitive Advantages


Main boom material is HG70 high strength steel

Strengthened hydraulic telescopic horizontal leg

Automatic recovery device for hook.Double speed winch for heavy duty crane.

Multiple modes and position of operation are optional.


Product Details





Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.





Product Parameters


Vehicle Description

Vehicle model

Crane truck

Overall dimensions (mm)

6900×2200×3035

GVW (kg)

Appro×11000

Fact loading capacity(t)

8

Curb weight (kg)

Appro×5150

Max. Speed (km/h)

90

Chassis Description

Chassis Brand

ISUZU

Cab

Single row cab with A/C

Color

Optional

Allowable person in cab

2-3

Wheel base (mm)

3815

Front/Rear track base (mm)

1680/1650

Front/Rear overhang (mm)

1015/2400

Number of axles

2

Axle

Front axle

4000

Rear axle

7000

Traction system

4×2

Operation control system

Power steering

Braking system

Air brake

Transmission

6-speed MLD

Tire specification

8.25-16

Tire quantity

6+1

Engine Description

Engine manufacture

ISUZU Engines

Engine model

4HK1-TCG51

Emission standard

Euro 5

Exhaust/output

5190ml/139kw

Horse power

190hp

Up-parts Description

Cargo box

Material

Carbon Steel

Dimension (mm)

3200×2100×550

Thickness of bottom / side (mm)

3.5 / 1

Crane

Brand

CLW

Model

SQ4SA2

Max. loading capacity(kg)

4000

Max. lifting torque (t.m)

10

Max. lifting height(m)

9.5

Max. working radius (m)

7.6

Installation space (m)

0.85

Number of arms

3

Length of boom (m)

3.5-7.82

Outrigger

Type

H

Horizontal Breadth (mm)

1.85-5.1

Hook & wire-rope

Speed of hook lifting (m/min)

9

Diameter (mm)

8

Length (m)

45

Slewing gear

Speed (r/min)

2

Angel

±360°
