IVECO High Quality Diesel Basic Life Support Ambulance Vehicle

This ambulance is suitable for hospitals to transfer patients or for emergency medical treatment.


  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CL5040XJHNJ5
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 29,200 FOB Shanghai
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

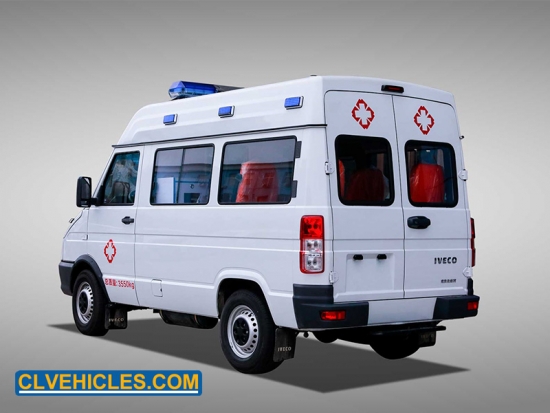

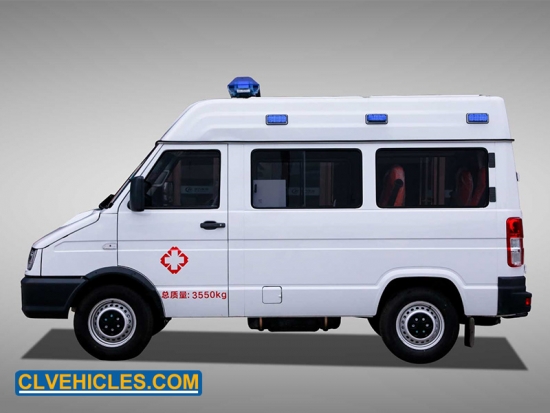

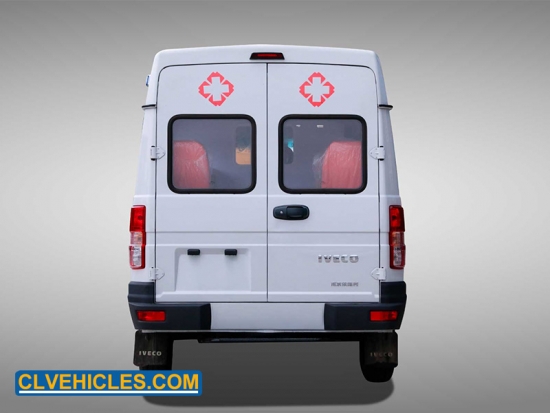

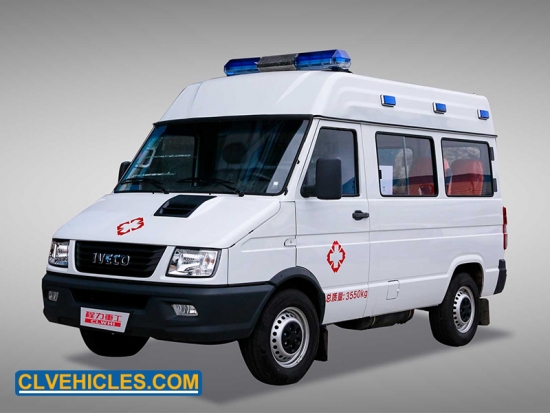

IVECO ward-type 2.5T diesel basic lift support ambulance car


IVECO ward-type ambulance adopts the design style of "simplicity + generosity", relying on the excellent performance of power, handling and safety of the Vito series models. The high-strength body design enables the roof, side walls, interior and underside of the vehicle to be adaptive to a variety of complex road conditions.


Quick Details



Size of ambulance
4850×2000×2640
A/C
Include
Chassis brand
IVECO
Horsepower
122hp(Euro 5)
Outside
Provide free logo design,both sides doors  pasted with cross mark
Oxygen supply system

One 10-liter oxygen cylinders

One directly connected oxygen cylinder with oxygen pressure reducing valve

Upholstery ABS composite material, high-duty,anti-microbial
First aid
Automatic loading stretcher, sliding infusion stand with 2 sets of infusion bottle hooks, fire extinguisher

Applications


Ambulance designed and equipped for the treatment, monitoring and transportation of critically ill patients. Ambulance equipped with first aid resuscitation equipment and essential medicines that can rescue critically ill or injured persons on site or during transportation.

Transfer type: transporter ambulance is the most common ambulance that can be used to transport patients with relatively stable condition to hospital. Only some simple medical treatments such as infusion, oxygen inhalation, hemostasis, bandaging and so on are allowed in transit.

Guardianship type: guardianship ambulance refers to the possession of first aid recovery equipment and necessary drugs, capable of rescuing critically ill and injured people at the scene or in transit.

emergency ambulance

Competitive Advantage


1. The wide space of the medical emergency ambulance in the top of the center axis of the whole line, together with the humanized configuration such as the front and rear stereo air conditioning, creates a more comfortable driving experience for you.


2.  2.5T large diesel exhaust, high speed for transportation.


3. Use SOFIM engine, oil exhaust only 8L/100km.


4. Gearbox use FPT 5-speed, min turning diameter decrease 0.8 to 9.9m.


5. Install satellite positioning and vehicle video surveillance to fully meet the requirements of the new first aid regulations.


6. Ambulance equipped with complete medical equipment with economic price.


7. Chassis is well-known IVECO brand.


Product Details






Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



Chassis Specification



Truck model

CLW5040XJHNJ5



Cab

IVECO CABIN



Driving Type

4*2 Left hand driving



Max Speed (km/h)

125



Overall dimension(mm)

4850×2000×2640



Ambulance Van dimension (mm)

3100×1700×1850



GVW(kg)

3550



Mass in working order(kg)

2480



Wheelbase(mm)

2800



Approach/Departure Angel

21/14.5



Tire

215/75R16LT



Clutch

Single-plate dry diaphragm spring clutch



Steering

Hydraulic steering with power assistance



Gear box

FPT 5-Speed gear box



Suspension

Front

Front independent torsion bar spring



Rear

Rear Hotchkiss suspension leaf spring



Engine

Model

SOFIM8140.47Z5



Fuel Type

Diesel



Type

2.5T In-line four cylinder supercharged cold cylinder direct injection



Exhaust(ml)

2499



Max output power/ rotating speed(hp/rpm)

122/3600



Max Torque/rotating speed(nm/rpm)

285/1800



Braking system

Service Brake

Air brake and dish brake



Park Brake

Spring energy



Eletric system

24v



Upper-Body specification



basic configuration

Medical warehouse air conditioning and heating

Circuits and medical appliances

Alarm and warning system

Long Row Standard Police Lights Or Various popular special-shaped police lights

100 watt siren and handheld control

Power supply system

Original vehicle power supply system

External power supply system

AC circuit protection system

Available for usb / 12v / 220v uninterruptible power supply

1000w Sine wave inverter system

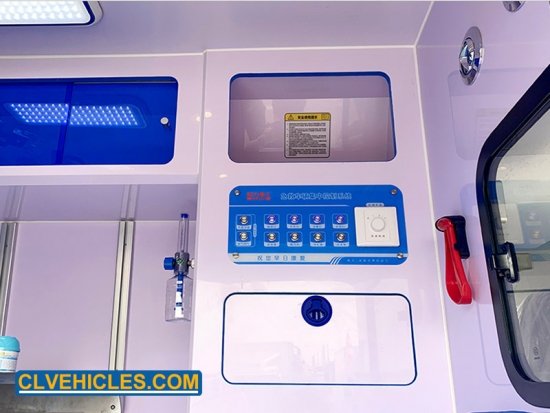

control system

Micro-circuit centralized control system

Cockpit emergency start system

Integrated switch control

 LCD display equipment

Oxygen supply system

two 10-liter oxygen cylinders, special shock-absorbing clamps

oxygen pressure reducing valves,

humidification bottles

hidden oxygen pipes, international oxygen ports

Ventilation system

Two-way ventilation fan

Disinfection system

Mosaic UV anti-virus lamp

Light system

Medical special led light

 Rear spotlight

Car left and right side lights

Intercom system

Front and rear window intercom, one-way control

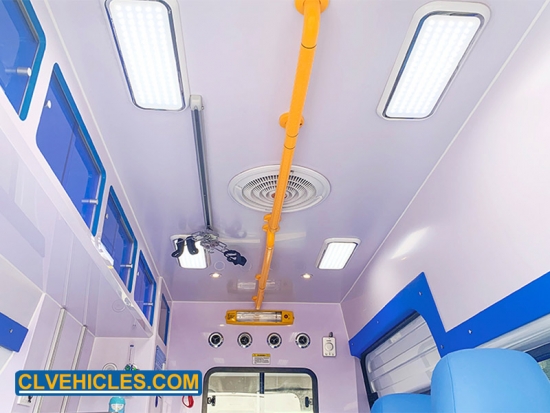

Medical warehouse interior

The interior adopts abs conforming material or overall mold forming process. The surface is smooth, antibacterial, high hardness, and the floor is easy to clean.

partition wall,

push-pull observation window on the partition wall,

pill cabinet behind the partition wall,

fixed oxygen cylinder beside the pill cabinet,

long seat belt and seat belt pre-buried,

Seat system

3 seat long soft seat on the right

Folding reverse independent seat with three-point safety belt

First aid

Automatic loading stretcher,

sliding infusion stand with 2 sets of infusion bottle hooks,

fire extinguisher

Exterior

Black solar film on the left side of the medical warehouse, semi-transparent frosted film on the right and rear sides, cross signs on the left and right doors
