Brand:
CLVEHICLES.COMModel No.:
XCA100Minimum Order Quantity:
1 UnitPayment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc

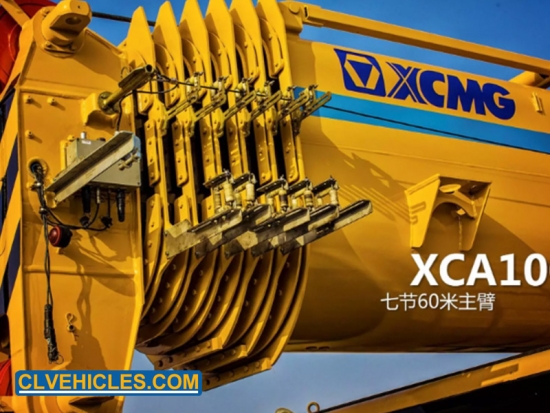

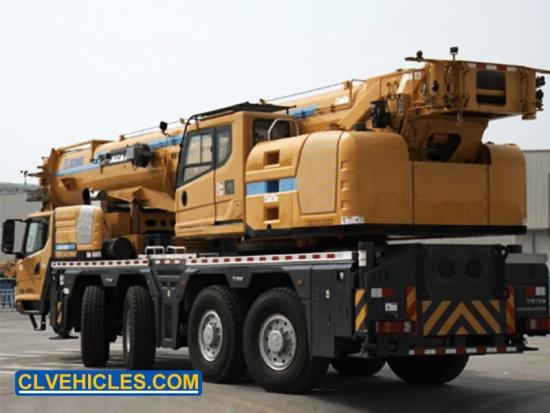

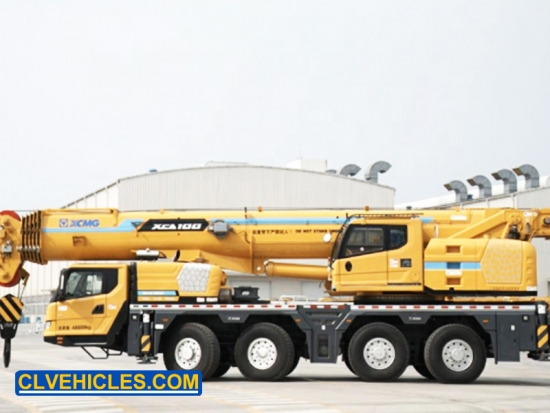

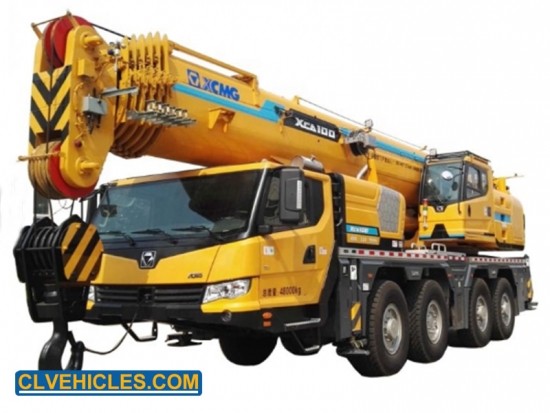

XCA100 Telescopic Boom All Terrain Crane/ 100 ton all terrain crane used mobile crane
Quick Details
|
Axle Load (Kg) |
12000*4 |
|
Upper engine model
|
BF6M1013EC
|
|
Rated engine power kw/(r/min)
|
174/2300 |
|
Rated engine torque N.m/(r/min)
|
854/1400
|
|
Lower engine model
|
ISME 420 30 |
|
Rated engine power kw/(r/min)
|
306/1900 |
Applications
1. The lifting capacity takes the lead in the industry with strong power, the 4-axle extreme 100-ton all terrain crane with high intelligent level.
2. Closed hydraulic system for lifting and slewing system, equipped with large-displacement pump, lifting speed with heavy load highly. Mature double-variable mechanism with fine control tactic, matching perfectly stably.
3. Automatically recommend the most proper working conditions. Searching and setting work condition simply.
4. With first launched multi-mode drive technology in the industry, real-time intelligent control for various working conditions is realized so that the crane has optimized travel state and crane safety and reliability are improved.
5. Axle load monitoring technology: Proper gear (the highest gear engaged) and axle driving mode are matched automatically by axle load monitoring technology, which provides protection for crane safety in traveling.
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Category |
Item |
Unit |
Parameter |
||
|
Dimension |
Overall length |
mm |
13180 |
||
|
Overall width |
mm |
2750 |
|||
|
Overall height |
mm |
4000 |
|||
|
Axle base |
mm |
1600+2475+1650 |
|||
|
Wheel base |
mm |
2340 |
|||
|
Weight |
Total mass in driving state |
kg |
48000 |
||
|
Axle load |
Axle 1 |
kg |
12000 |
||
|
Axle 2 |
kg |
12000 |
|||
|
Axle 3 |
kg |
12000 |
|||
|
Axle 4 |
kg |
12000 |
|||
|
Power |
Lower engine model |
-- |
ISME 420 30 |
ISM11E4 440 |
|
|
Rated engine power |
kw/(r/min) |
306/1900 |
318/1900 |
||
|
Rated engine torque |
N.m/(r/min) |
2010/1200 |
2080/1200 |
||
|
Upper engine model |
-- |
BF6M1013EC |
|||
|
Rated engine power |
kw/(r/min) |
174/2300 |
|||
|
Rated engine torque |
N.m/(r/min) |
854/1400 |
|||
|
Driving |
Maximum driving speed |
km/h |
80 |
||
|
Turning diameter |
Minimum turning diameter |
m |
18 |
||
|
Minimum boom head turning diameter |
m |
22.7 |
|||
|
Minimum ground clearance |
mm |
280 |
|||
|
Approach angle/ Departure angle |
° |
17/16.5 |
|||
|
Braking distance (vehicle speed is 30km/h) |
m |
≤10 |
|||
|
Maximum gradeability |
% |
60 |
|||
|
Fuel consumption per hundred kilometers |
L |
60 (Xi'an Cummins) |
|||
