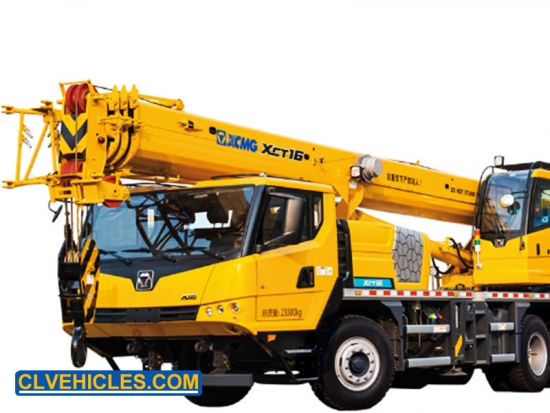

XCT16 New 40.6m Boom 16 ton Truck Crane
XCT16 has four 12-section cross-section of the new main boom, the main arm length of 32m, jib length of 8.15m, are leading the industry's highest level; lifting machine industry, the highest standard with the fifth leg, to achieve 360 ° operation.
Quick Details
| Engine model | Weichai |
|
Rated power / speed |
60kw /2300RPM |
|
Max. rated total lifting capacity
|
16T |
|
Basic boom |
10.5m |
|
Max. main boom
|
32.5m |
|
Max.main boom+jib
|
40.6m |
Applications

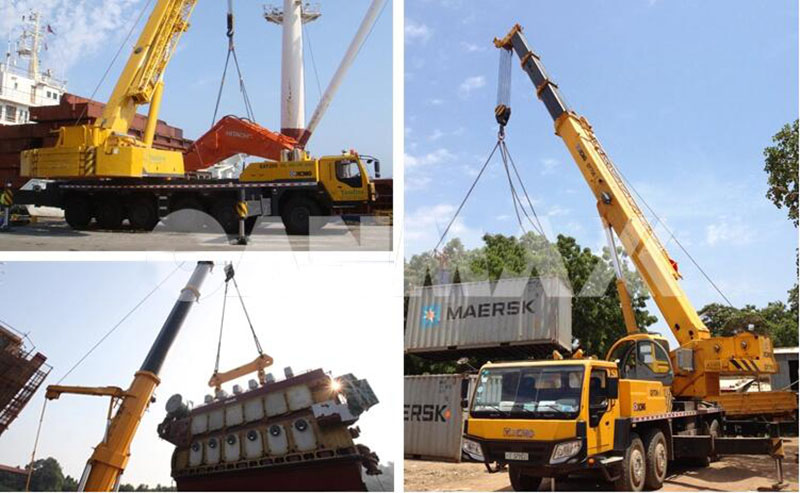

XCT16 Truck Crane is widely suitable for construction site, urban renewal, traffic transportation, port, bridge, oil field, mine field and other complex working environment.
1. 3-axle self-made special chassis, 4-section dodecaphonic cross section of boom,built-in double independent winch and power system with low speed and large torque, this crane has industry-leading lifting height, lifting capacity and working efficiency
2. New energy-saving hydraulic system, mature engine system of Shanghai Diesel Engine and Weichai Engine, all covering walking surface and XC MG man-machine interactive system with the level of car provides more options for customers and bring more comfortable driving and operation experience
3. 360 ° operation
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Dimension |
Overall length |
mm |
11960 |
|
Overall width |
mm |
2500 |
|
|
Overall height |
mm |
3330 |
|
|
Weight |
Total weight in travel |
kg |
23300 |
|
Engine |
model |
|
SC7H260Q4/SC7H245Q4/WP6.245.E40 |
|
rated power |
kW/(r/min) |
192/2300 180/2300 180/2300 |
|
|
rated torque |
N.m/(r/min) |
1000/1200~1600 960/1200~1600 900/1100~1700 |
|
|
Travel |
Max. travel speed |
km/h |
85 |
|
Min. turning diameter |
m |
20 |
|
|
Min. ground clearance |
mm |
261 |
|
|
Approach angle |
° |
12/19 |
|
|
Departure angle |
° |
14 |
|
|
Max. grade ability |
% |
48 |
|
|
Fuel consumption for 100km |
L |
28 |
|
|
Main performance |
Max. rated total lifting capacity |
t |
16 |
|
Min. rated working radius |
m |
3 |
|
|
Turning radius at turntable tail |
m |
3.18 |
|
|
Max. lifting torque |
kN.m |
730 |
|
|
Base boom |
m |
10.5 |
|
|
Max.main boom |
m |
32.5 |
|
|
Max.main boom+jib |
m |
40.6 |
|
|
Working speed |
Boom lifting time |
s |
35 |
|
Boom full extension time |
s |
50 |
|
|
Max. swing speed |
r/min |
3 |
|
|
Max. speed of aux. winch (single rope) |
m/min |
130 |
