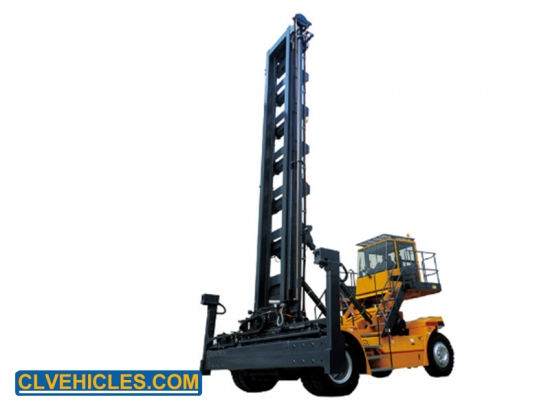

8Ton XCMG XCH80 Empty Container Stacker

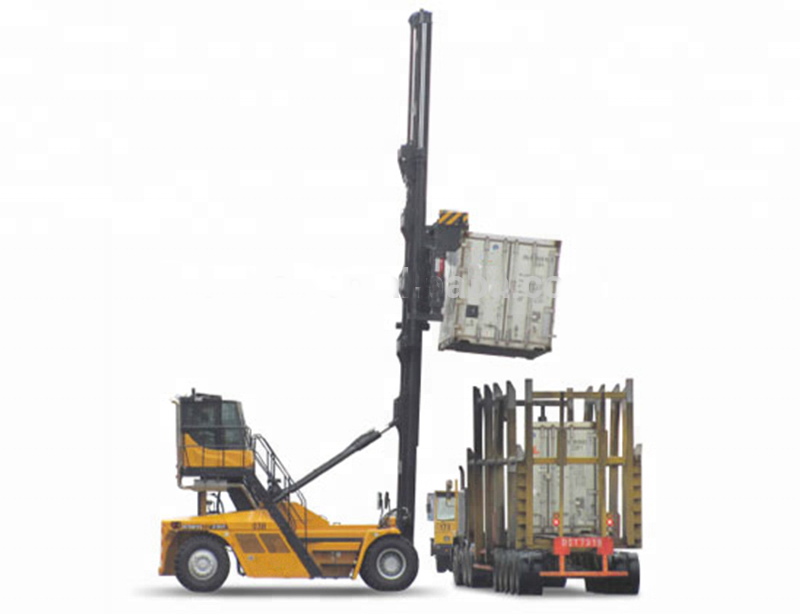

XCH80 8Ton Empty Container Stacker is a special equipment for empty container handling and stacking, with a maximum lifting capacity of 8t and a stacking capacity of 7 layers. The product is flexible and highly efficient, and is widely used in ports, storage yards and other places.
Quick Details
|
Maximum gross weight rating(t)
|
8 |
|
Maximum lifting height(mm) |
18819 |
|
Maximum lifting speed (no load/full load) (m/min)
|
650/550 |
|
Maximum descending speed (no load/full load) (m/min)
|
600/500
|
|
Ability to lift(layers) |
7 |
Applications
Special equipment for handling and stacking empty containers, The products are flexible, efficient and widely used in ports, storage yards and other places
1.Flexible and efficient operation
The machine has compact structure, small external size, turning radius of only 6m, good site adaptability, efficient transition.
Proprietary flow sharing and distribution control, door frame micro - control and other technologies, fast operation, micro - mobility, high efficiency.
2.Safe and reliable, easy to use
Many technologies, such as driver emplacement detection control, padlock bypass loop control, automatic speed limit, and graded braking control, have greatly improved the product's operational safety performance.
The original imported engine, gearbox, drive axle and other industry top configuration, professional matching optimization and systematic evaluation test, 1200 hours of handling, stacking strengthening test, effectively ensure the reliability of the product.
Economic and environmental protection, cost saving
Extreme design concept, professional optimization and matching technology, light weight of the whole machine, high system efficiency, effective use cost saving;
Patented door frame energy recovery system (optional), saving about 30% fuel consumption.
3.It is comfortable to drive and ride and convenient to use
Panoramic driver's cab, high-power air conditioning, exquisite human-computer interaction interface, high-definition reversing image, adjustable steering wheel and seat, people-oriented detail design, comfortable driving.
Professional industrial modeling design and man-machine engineering simulation analysis, humanized climbing, maintenance channels and control parts layout, the perfect combination of functionality and aesthetics, the machine beautiful generous modeling, easy to use.
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
project |
Unit |
Parameters |
|
Parameters of the item |
- |
XCH80 Empty container stackers |
|
Size parameters |
|
|
|
Over the whole machine |
(mm) |
6522 |
|
The whole machine full width |
(mm) |
4148 |
|
The whole machine all high |
(mm) |
10874 |
|
The wheelbase |
(mm) |
4300 |
|
Wheel base |
(mm) |
3286/2360（Front /Rear） |
|
The weight parameter |
|
|
|
Vehicle ready mass |
(kg) |
35405 |
|
Light axle weight |
(kg) |
23765/11640（Front /Rear） |
|
Dynamic parameters |
|
|
|
Engine type |
- |
Cummins QSB6.7 |
|
Engine rating |
(kw) |
164 |
|
Engine rated torque |
(N.m) |
949 |
|
Engine discharge |
- |
U.S.EPA Tier 3EU StageⅢ |
|
Driving parameters |
|
|
|
driving |
|
|
|
Top speed |
(km/h) |
· 27/27（No load/full load） |
|
turn |
|
|
|
Minimum turning diameter |
(m) |
12 |
|
Maximum climb |
- |
0.3 |
|
Minimum ground clearance |
(mm) |
300 |
|
Close to the corner |
(°) |
28 |
|
Angle of departure |
(°) |
39 |
|
Braking distance |
(m) |
7 |
|
Job performance parameter |
|
|
|
Maximum gross weight rating |
(t) |
8 |
|
Maximum lifting height |
(mm) |
18819 |
|
Maximum lifting speed (no load/full load) |
(m/min) |
650/550 |
|
Maximum descending speed (no load/full load) |
(m/min) |
600/500 |
|
Ability to lift |
(layers) |
7 |
