Brand:
CLVEHICLES.COMModel No.:
SC200/200CMinimum Order Quantity:
1 UnitPayment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc

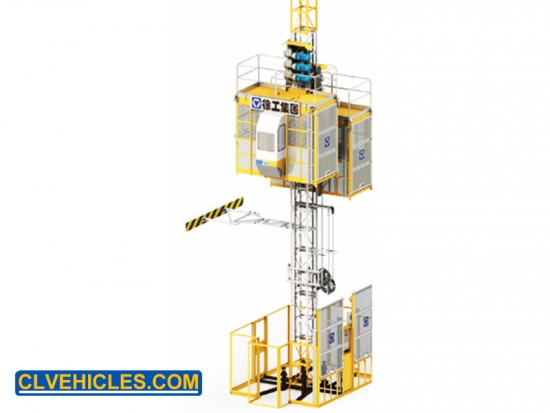

XCMG SC200/200C Material Hoist Lift
SC200/200 construction hoist showed double cage, balanced weight, rated load capacity of every cage for 2000kg gear and rack construction elevator.
The drive mechanism of its adopts two / three mechatronics drive form, which make between pinion and rack with same pressure and more stability and reliable safety than other hoisting mechanism as well as set up safety switch for overload and restricted speed in the circuit.
Every cage have equipped with safety devices to guard against falling and you don't need to set another machinery room or well hole and easy to removal and mounting, transportation flexible, especially it can enhance work efficiency and reduce worker labor intensity.
Quick Details
Rated load of single cage |
2000KG |

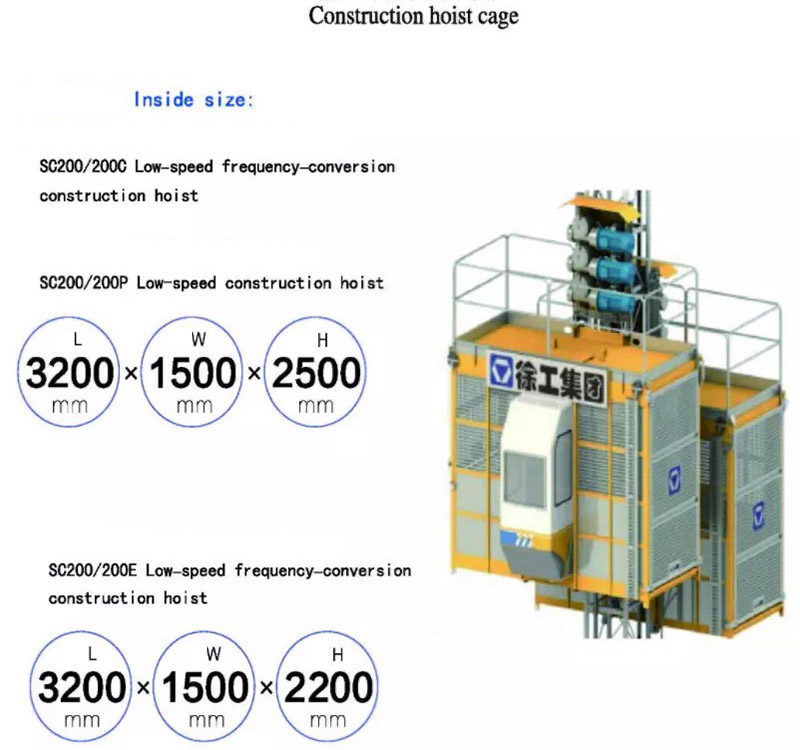

Hanging cage size (length width height)
|
3200× 1500× 2500 (mm)
|
Guide rail frame size
|
650× 650× 1508 (mm) |
The transmission mechanism
|
2×2×15KW
|
Frequency converter power
|
2 ×45KW |
Operating speed
0-36m/min
|
|
Applications

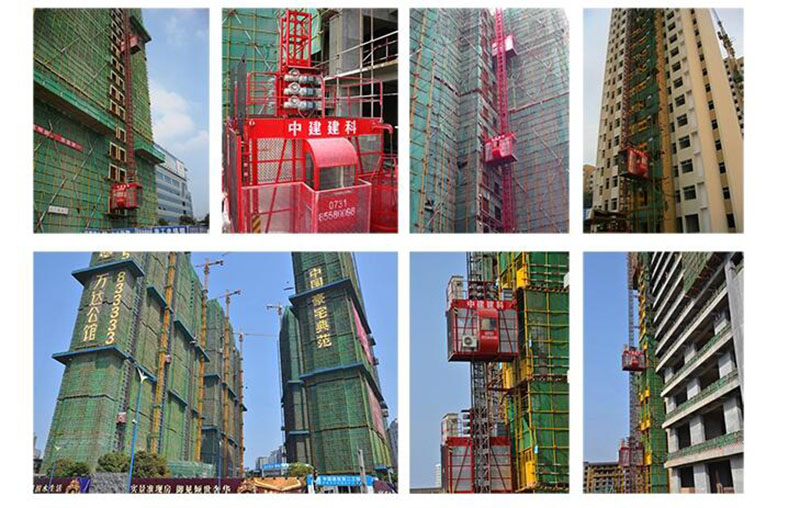

This product absorbs advanced technology at home and abroad, is novel in design, simple in operation and convenient to dismantle and repair. Its safety design and configuration is fully in conformity with national standards. It is mainly suitable for bridge, chimney, building and other high-rise building builders and cargo transportation, and can also be used in warehouses, wharf and other places where vertical transportation needs to be used.
1.Rack and pinion transmission;
2.Dual motor drive;
3.Low speed, power/frequency conversion dual control system;
4. Electrical control system :
PLC control;
Power/frequency conversion dual control system, in the case of frequency conversion failure, a key switch to power frequency, to ensure normal operation, do not affect customer use;
5.Steel structure:
Guide rail frame, attached wall and mainstream manufacturers in the industry can be interchangeable butt, universal;
The hanging cage coaming is made of t3 perforated aluminum plate, which is firm and reliable.
Q345B steel is used for the main structural parts under stress, with high bearing capacity, safe and reliable;
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
XCMG SC200/200C |
- |
SC200/200C(Low frequency) |
Rated loading capacity |
(Kg) |
2×2000 |
Transmission power |
(Kw) |
2×2×15 |
Frequency converter power |
(Kw) |
2×45 |
Hoisting speed |
(m/min) |
0-36 |
Maximum adhesion height |
(m) |
500 |
The dimensions of the hanging cage( length x width x height) |
(m) |
3.2×1.5×2.5 |
