3 Axle Bulk Cement Transportation Semi Trailer

Bulk Cement Semi Trailers are for cement, dry powder’ s transport and storage. Because of the professional design, mature producing technology, and the strong sense of responsibility, our trailers are popular with our customers.

  • Brand:

    CLVEHICLES.COM
  • Model No.:

    CL9403GFL
  • Minimum Order Quantity:

    1 Unit
  • Price:

    USD 29880
  • Payment Terms:

    T/T, L/C, Western Union
  • Delivery Time:

    25~35 days after we get the deposit
  • Shipping:

    Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc
  • Overview
  • Parameters

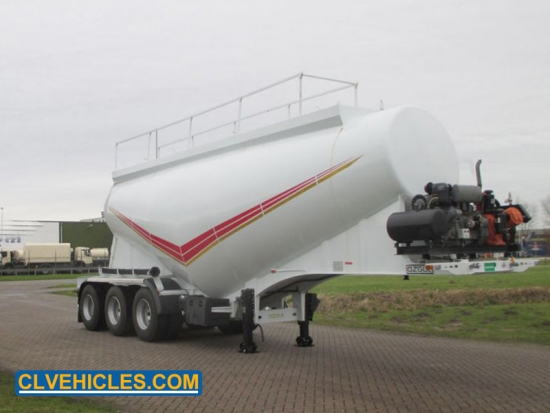

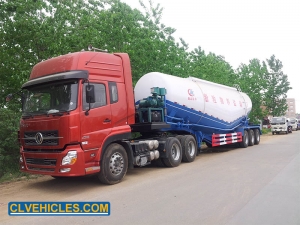

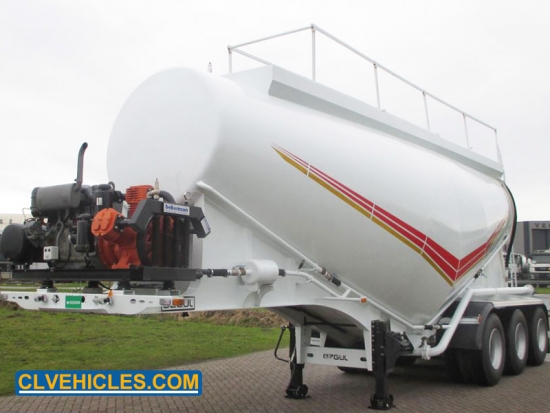

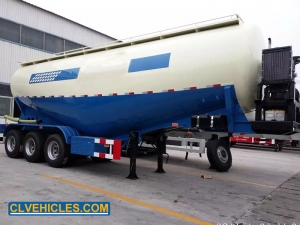

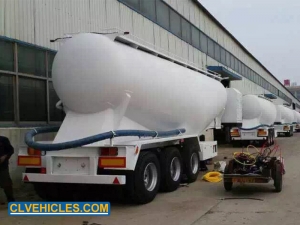

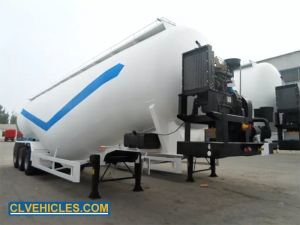

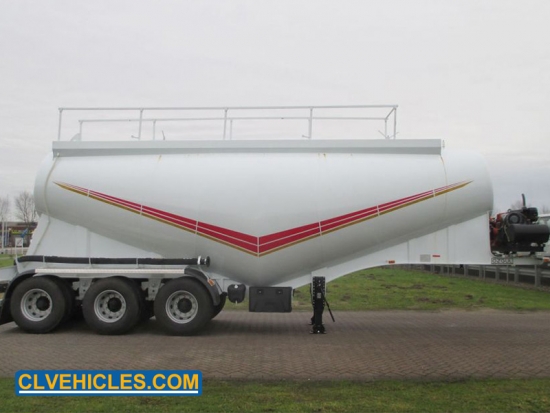

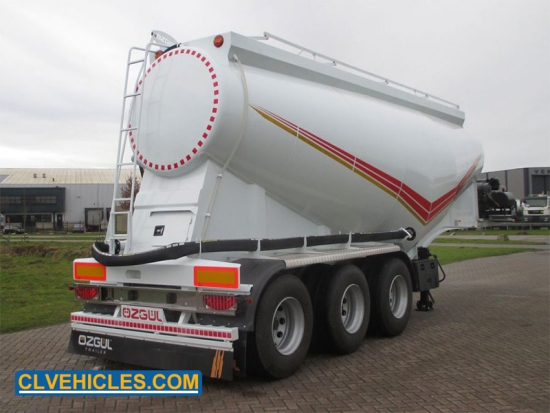

3 Axle Bulk Cement Transportation Semi Trailer


Powder material transport semi-trailer is for large quantities of dust materials (bulk cement) transport of special vehicles,It is suitable for the transportation and air pressure unloading of fly ash, cement, limestone, ore powder and other particles whose particle diameter is not more than 0.1 mm.


Quick Details



Semi-trailer type Bulk Cement semi-trailer
Length 12100mm
Loading capacity 45CBM

Axle

FUWA


Applications


This cement tank bulk semi trailer available for transporting bulk cement,fly ash, Toner dust and all kinds of bulk powder goods in a short or long distance or work as a bulk cement container for a while.


CLVEHICLES.COM Semi-trailer


Competitive Advantages

1>High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.

2>The most skilled workers make welding of this flatbed trailer more frequent and strong.

3>Two pieces spare tire carriers, water tank, fuel tank etc, are optional accessories which build modern transportation.

4>We have standard side wall semi trailer which is with 3 axles and 50 tons loading capacity and 600mm height side wall. Meanwhile, we can have your trailer customized with options.



Product Details


 Semi-trailer


Customer Services


Pre sale service

--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings


After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support

Truck

According to your request, choose good chassis and refit it to truck.


Upper Body
Supply only upper body without chassis. According to your chassis drawing,

design function parts.


Customization
Communicate with engineer,making design drawings and produce customized products.


Spare Parts
Supply all kinds of spare parts on chassis and upper body,replace main parts

on trucks as tank and box.




Product Parameters



Product

Bulk Cement semi-trailer

Tare Weight

About 10350kg

Dimension
(The exact size depends on final design)

Length:12100 mm(outside dimension)

Width: 2500 mm(outside dimension)

Height: 3950mm(outside dimension)

Loading Capacity

35000L

Tank Assembly

Front/Rear end plate

Material

Carbon steel

Thickness

6mm

Tank Body

Material

Carbon steel

Thickness

5mm

Manhole Cover

Diameter

diameter 500mm

Material

Carbon steel

Number

4 pcs

Discharging Valve

Diameter

3or 4 inch

Number

1 PCS 6M RUBBER HOSE

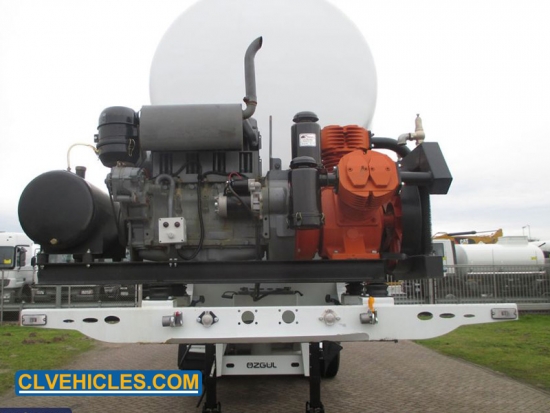

Diesel engine

WEICHAI,Tianhe 4100/4102 or other brand

Discharging Pipe

Diameter

3 inch

Compressor

BOHAI 10m³/12 m³or other brand

Cat Walk

with, Standard type

Running mechanism

Main beam

Material

Q235 carbon steel

Plate

upper plate is 14mm, middle plate is 8mm,

Down plate is16mm

Height

500mm

Side  beam

Material

Q235 carbon steel

Thickness

16mm or 18mm channelsteel

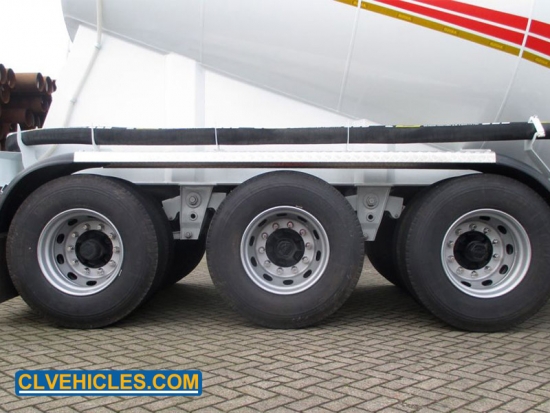

Axle

Brand

FUWA

Type

13T

Number

3 pcs

Rim

Type

9.0-22.5

Number

13pcs

Tyre

Brand

Triangle brand

Type

12R22.5

Number

13pcs

Suspension

American type mechanical suspension for 3 axle

Spring leaf

Leaf width

90mm

Leaf thickness

13mm

Layer/set

10 Layer

King pin

Brand

JOST brand

Type

Bolts type

Diameter

2.0 inch

Brake system

Air tank

45L air tanks

Brake chamber

6 double Spring brake chamber

ABS

Without

Landing gear

Brand

JOST brand

Type

JOST C200T

Accessories

Spare tyre carrier

2 set

Light

LED light

Voltage

24V

Receptacle

7 ways (7 wire harness) and quick change type

Tool box

One piece, 1m×0.5m×0.5m (equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)

Painting

Complete Chassis sand blasting to clean rust, 1 coat ofanti corrosive prime, 2 coats of final paint
