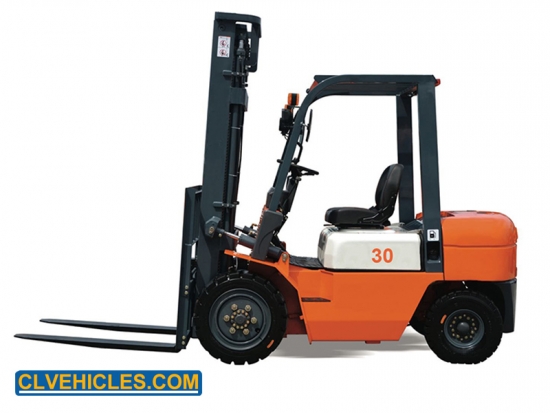

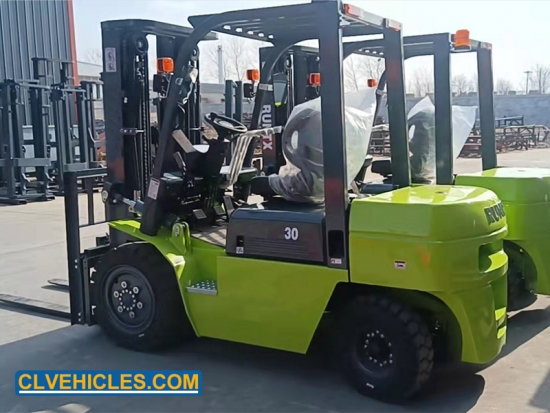

CLW C Series 3 tons Diesel Counterbalance Forklift
As lifting and transporting machineries, C Series 2-5T Diesel / Gasoline / LPG IC Counterbalanced Forklift Trucks are widely used for loading, unloading and transporting the packaged goods in factories, warehouses, stations, wharves, ports and so on. With other attachments of fork lift trucks., they can be used for the handling of the bulk goods and unpackaged goods.
Quick Details
| Rated lifting weight | 3000kg |
|
Load center distance |
500mm |
|
Engine |
C490BPG |
|
Length with fork |
3770mm |
|
Max. lifting height |
3000mm |
|
Engine power |
40kw |
1. Simple, flexible, light weight and small turning radius make the truck suitable use in extremely narrow aisle.
2. Strong structure and open layout make the maintenance easy.
3. Same hydraulic pump with the hand pallet, simple and reliable.
4. Integrated handle integrates key and meter make the operation easy and confortable.
5. Wide view mast, make a broader perspective.
6. Strong mast ensure safety and efficiency handling.
7. Suspension adjustable seat, make driver more comfortable, reduce fatigue during long operation.
8. Fuses, relays and other electric elements are integrated into a control box, which makes the maintenance and inspection work more convenient.
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Model |
CLCPCD30 |
|
Power |
Diesel |
|
Rated lifting weight (kg) |
3000 |
|
Load center distance (mm) |
500 |
|
Tire size (front) |
28x9-15-14PR |
|
Tire size (rear) |
6.50-10-10PR |
|
Length with fork (mm) |
3770 |
|
Length without fork (mm) |
2700 |
|
Width (mm) |
1220 |
|
Overhead guard height (mm) |
2122 |
|
Wheelbase (mm) |
1800 |
|
Front/rear of overhang (mm) |
485/515 |
|
Front/rear wheelbase (mm) |
1210/1240 |
|
Minimum ground clearance (mm) |
150 |
|
Standard lifting height without load (mm) |
3000 |
|
Adjustment range of fork (mm) |
1060/250 |
|
Minimum turning radius (outside) (mm) |
2470 |
|
Mast tilt (F/R) |
6°/12° |
|
Fork length (mm) |
1070 |
|
Maximum hoisting speed unload/full load (mm/s) |
500/450 |
|
Maximum operating speed unload/full load (Km/h) |
19.5/18 |
|
Grade ability (%) |
≤20 |
|
Maximum traction (full load/unload) (kN) |
20/16 |
|
Operating weight (kg) |
4250 |
|
Engine brand |
XINCHAI |
|
Engine model |
C490BPG |
|
Cylinder number |
4 |
|
Displacement (L) |
2.27 |
|
Rated power/speed (kw/rpm) |
40/2650 |
|
Rated torque/speed (Nm/rpm) |
156/1700-1900 |
|
Emission standard |
Euro II |
|
Gearbox gearshift number (F/R) |
1-1 power shift |
