ISUZU GIGA VC61 460hp 10wheeler Euro5 Tractor Head
Tractor truck head VC61 GIGA heavy trucks isuzu engine with great price
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
On snow or muddy roads, the traction
control system can ensure smooth acceleration performance and prevent the
vehicle from transverse movement or tail flick due to the slippage of the
driving wheels.
Brand:
CLVEHICLES.COMModel No.:
CL20200416Minimum Order Quantity:
1 UnitPrice:
USD 42,800 FOB ShanghaiPayment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

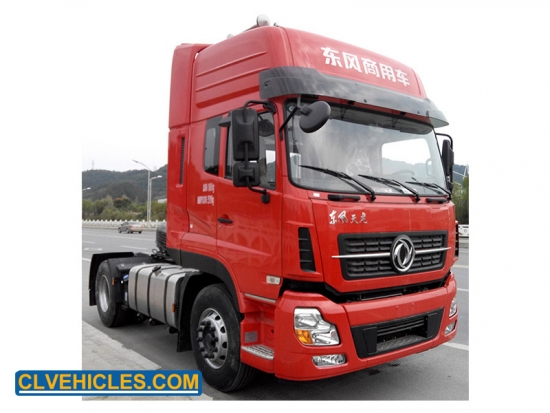

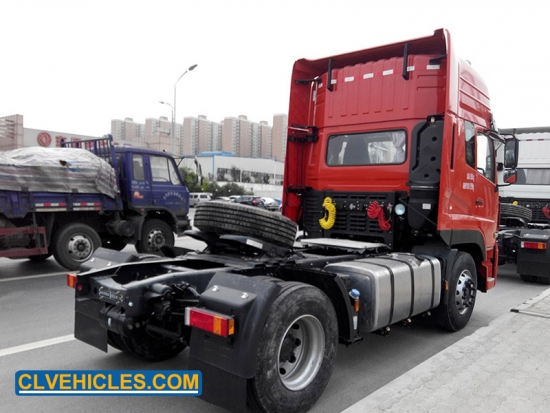

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcDFAC(Dongfeng) 4X2 375HP Light Duty 30Tons Prime Mover Tractor
DFAC DONGFENG tractor meets the application needs of the load environment with heavy loads and multiple operating conditions. Taking high efficiency as the development orientation and using multiple matching layout schemes and increased power transmission speed ratio range, the product has excellent performance and is highly effective, reliable, safe and economical.
Quick Details
| Condition | NEW |
| Driving Wheels | 4x2 |
|
Emission Standard |
EURO II |
|
Chassis Brand |
DONGFENG(DFAC) |
| Transmission TypeManual | Manual |
|
Fuel Type |
Diesel |
|
Engine |
L375 20 |
Applications
A tractor is a general large truck or semi-trailer
that is towed by a tool between the front and the car. That is, the front of
the car can be pulled out of the original car and pulled out of other cars. The
car can also be pulled away from the original head by other fronts. . The front
of the car with the driving ability is called the tractor, and the car without
the traction drive capability is called the trailer. The trailer is towed by
the tractor. There are two ways to connect the tractor to the trailer: the
first is that the front half of the trailer is placed on the traction saddle
above the rear section of the tractor, and the bridge behind the tractor is
subjected to a part of the weight of the trailer, which is half-hook; The front
end of the trailer is connected to the rear end of the tractor. The tractor
only provides the forward pulling force and drags the trailer to go, but does
not bear the downward weight of the trailer. This is the full hanging.
Competitive Advantage
1. Anti-skid: prevent the idling of the driving wheel when the vehicle is running on the slippery road, such as snow, so that the vehicle can start and accelerate smoothly. Especially in snow or muddy roads, traction control system can ensure smooth acceleration performance, to prevent the vehicle due to the driving wheel slip and roll sideways or tail.
2. flexible: in the traction of the car so that the car train has a good mobility flexibility.
3. Reliable work: ensure that the traction truck and trailer are connected reliably, conveniently and quickly.
4. stable: traction can be smoothly transferred to the trailer, impact load has a certain buffer effect.
Production line
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Chassis Dimensions(mm) |
|
|||
|
Overall chassis length |
5960 |
|||
|
Cab width |
2500 |
|||
|
Cab height (unladen) |
3700 |
|||
|
Wheel base |
3400 |
|||
|
Front overhang |
1480 |
|||
|
Rear overhang |
1080 |
|||
|
Speed(km/h) |
||||
|
Max.Speed |
100 |
|||
|
vehicle weights(kg) |
||||
|
Curb weight |
7450 |
|||
|
G.V.W |
18000 |
|||
|
Engine |
Type |
L375 20 |
||
|
Emission level |
Euro Ⅱ |
|||
|
Maximum power |
276kw (375hp) at 2200 rpm |
|||
|
Maximum torque |
1480Nm at 1400rpm |
|||
|
Number of cylinders |
6 |
|||
|
Displacement (lit) |
8.9 |
|||
|
System |
Water cooled,turbocharged,after cooled ,mechanical-pump,exhaust brake, cold start. |
|||
|
Clutch |
Plate's diameter |
¢430mm SACHS Hydraulic control with air booster, pulling |
||
|
Gear box |
Type |
12JS180T DD |
||
|
Number of gears |
12forward gears& 2reverse |
|||
|
Brake System |
Full air brake system, split pneumatic circuit；parking spring brake acting on rear axles ,exhaust brake. |
|||
|
Axle |
Front |
Elliot type, I beam section |
||
|
Load capacity(ton) |
7 |
|||
|
Rear |
Single reduction , ratio 4.11 |
|||
|
Load capacity(ton) |
13 |
|||
|
Tyres |
12.00R20 |
|||
|
Suspension |
Spring Suspension |
|||
|
Battery |
Voltage (V) |
24 |
||
|
Battery capacity (A.h) |
165X2 |
|||
|
Capacity |
400lit ; Steel fuel tank，with lockable cap |
|||
|
Cab |
Sleeper cab,forward control type,high roof, all welded steel cab , electric hydraulic cab tilting, front and rear mechanical cab suspension , adjustable mechanical driver’s seat, eletricl windows, manual lock. air conditioning system. |
|||
Tractor truck head VC61 GIGA heavy trucks isuzu engine with great price
12 forward gears and two reverse gears. Max output torque 2,000 Nm. Rear auxiliary transmission introduces the planetary gear train with even loads.
The short-stroke synchronizer ensures smooth and convenient gearshift. The integrated gearshift mechanism plus the precise control achieves smooth gear shifting.
The truck is equipped with ZF or Fast transmission. Proofed for many different road conditions and applications.
With crawler gear, better grade ability due to higher 1st gear ratio, adaptable for off-road operations. Optimized ratio steps and bigger ratio spread provides less fuel and more power.
The Dongfeng KX provides efficient, fast and clean logistics solutions for demanding customers.
