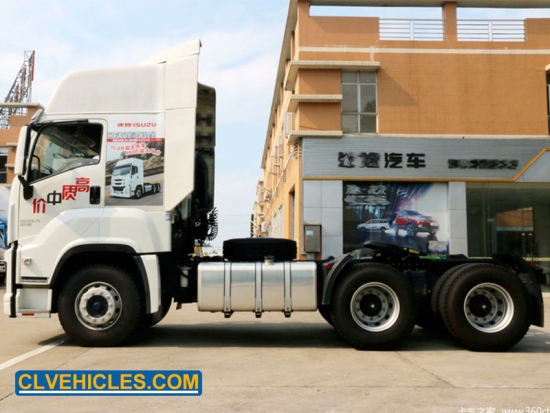

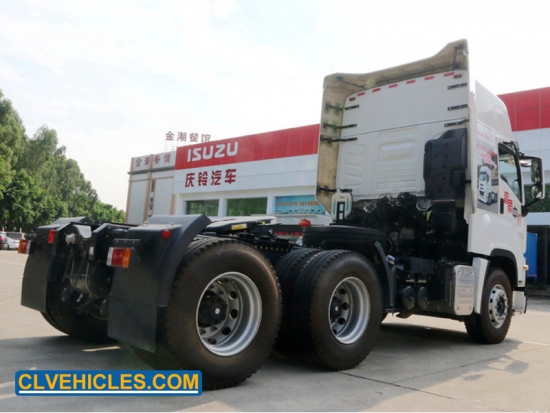

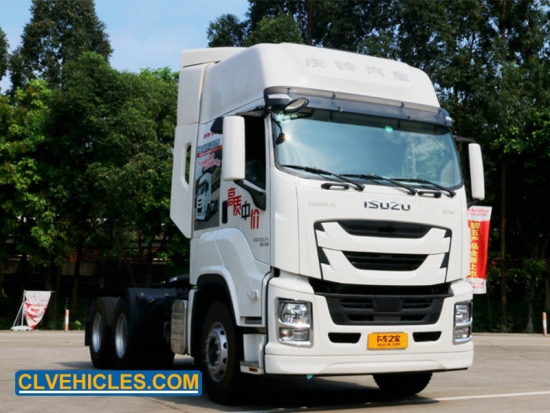

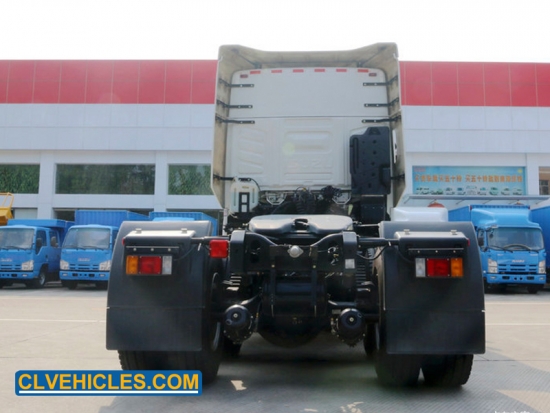

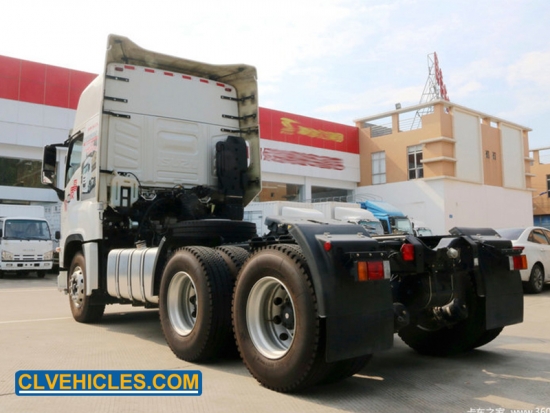

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcISUZU GIGA VC61 460hp 10wheeler Euro5 Tractor Head
A tractor unit (prime mover or traction unit) is a characteristically heavy-duty towing engine that provides motive power for hauling a towed or trailered load. These fall into two categories: heavy and medium duty military and commercial rear-wheel drive "semi tractors" used for hauling semi-trailers, and very heavy-duty typically off-road-capable, often 6×6, military and commercial tractor units, including ballast tractors.
Quick Details
| Chassis Brand | ISUZU |
| Type | 6x4 |
| Engine Power | 460hp |
|
Towing Capacity |
40000kg |
Applications
A tractor is a general large truck or semi-trailer
that is towed by a tool between the front and the car. That is, the front of
the car can be pulled out of the original car and pulled out of other cars. The
car can also be pulled away from the original head by other fronts. . The front
of the car with the driving ability is called the tractor, and the car without
the traction drive capability is called the trailer. The trailer is towed by
the tractor. There are two ways to connect the tractor to the trailer: the

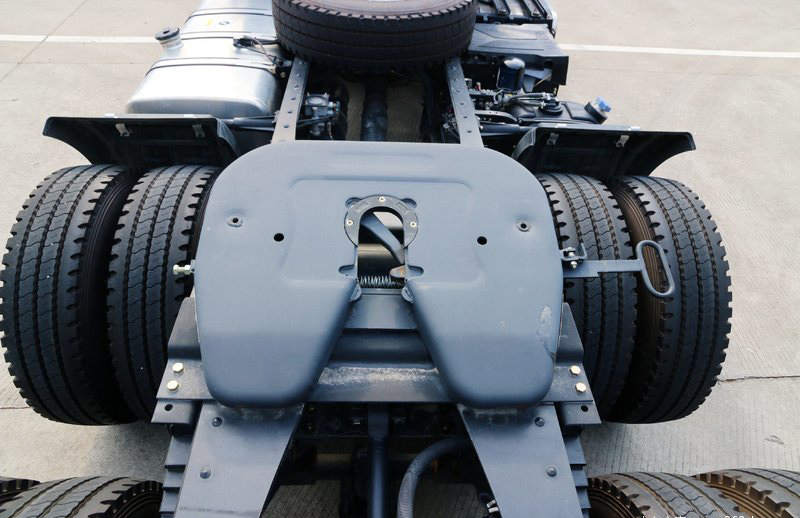

first is that the front half of the trailer is placed on the traction saddle
above the rear section of the tractor, and the bridge behind the tractor is
subjected to a part of the weight of the trailer, which is half-hook; The front
end of the trailer is connected to the rear end of the tractor. The tractor
only provides the forward pulling force and drags the trailer to go, but does
not bear the downward weight of the trailer. This is the full hanging.
Product Details
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Truck Specification |
||
|
Chassis Brand |
ISUZU |
|
|

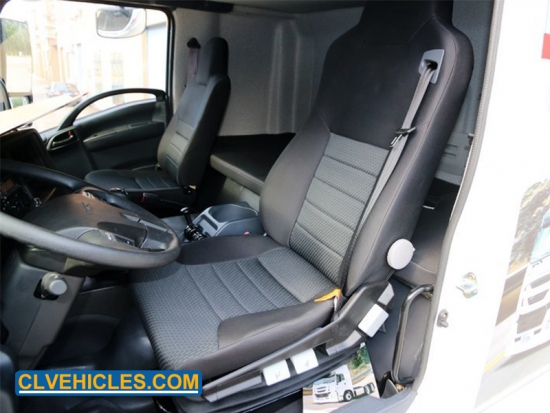

Cab |
One and half row cab, with power steering. Electronic flameout |
|
|
Driving Type |
6*4 |
|
|
Max Speed (km/h) |
98 |
|
|
Overall dimension（mm） |
6895x2540x3970 |
|
|
Mass in working order（kg） |
9280 |
|
|
GVW（kg） |
25000 |
|
|
Wheelbase（mm） |
3385+1370 |
|
|
F/R track base（mm） |
2065/1855 |
|
|
F/R overhang（mm） |
1525/825 |
|
|
Approach/Departure Angel |
20/66 |
|
|
Tire |
315/80R22.5 16PR |
|
|
Clutch |
Single-plate dry diaphragm spring clutch |
|
|
Steering |
Hydraulic steering with power assistance |
|
|
Gear box |
16S2230TO (16 front gear+2 rear gear) |
|
|
Bridge |
Front axle |
7500 |
|
Rear axle |
13000/13000 |
|
|
Engine |
Model |
6WG1-TCG51 |
|
Horse power |
460hp |
|
|
Displacement |
15681ml |
|
|
Braking system |
Service Brake |

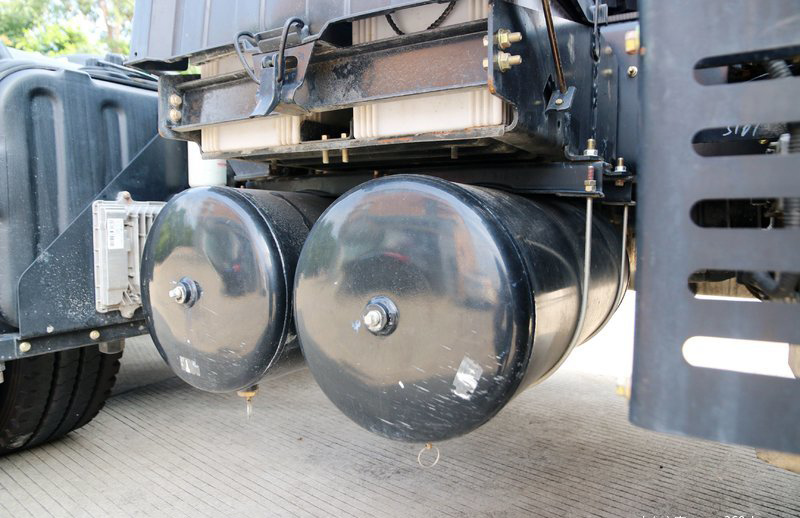

Compressed air brake |
|
Park Brake |
Spring energy |
|
|
Electric system |
24v |
|
12 forward gears and two reverse gears. Max output torque 2,000 Nm. Rear auxiliary transmission introduces the planetary gear train with even loads.
The short-stroke synchronizer ensures smooth and convenient gearshift. The integrated gearshift mechanism plus the precise control achieves smooth gear shifting.
On snow or muddy roads, the traction control system can ensure smooth acceleration performance and prevent the vehicle from transverse movement or tail flick due to the slippage of the driving wheels.
The truck is equipped with ZF or Fast transmission. Proofed for many different road conditions and applications.
With crawler gear, better grade ability due to higher 1st gear ratio, adaptable for off-road operations. Optimized ratio steps and bigger ratio spread provides less fuel and more power.
