C series 3.5 ton Diesel Forklift, 500mm load center, with Chinese Xinchai 495 engine, with automatic transmission, power shift.
Brand:
CLVEHICLES.COMModel No.:
CPCD35Minimum Order Quantity:
1 UnitPrice:
USD 13000Payment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:
Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etc

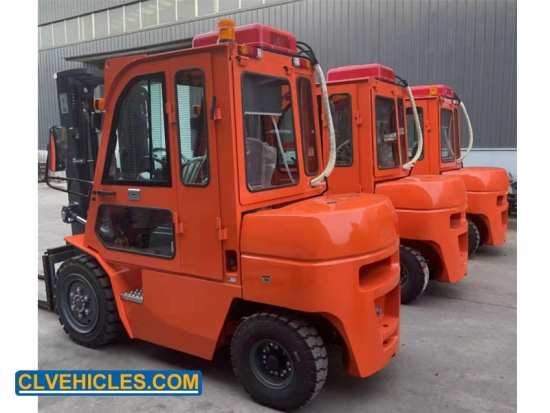

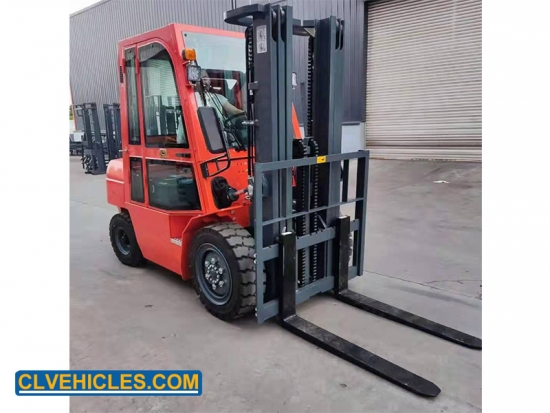

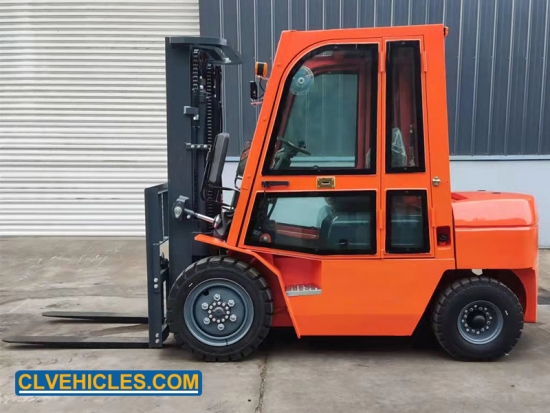

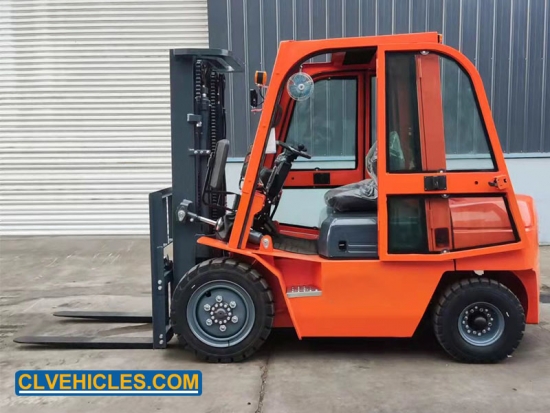

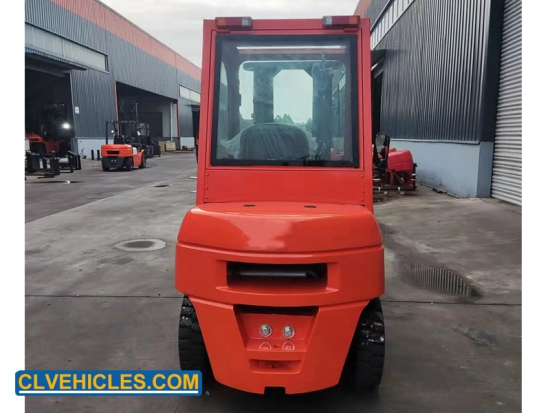

CLW C series 3.5Ton Closed Cabin Diesel Forklift
CLW Diesel Forklift provide you with multiple choice as per your real need,we have different reliable engines for choice. All these engine have been tested that they can be trusted through all kinds of tough working condition and get recognition from millions of client across the worldwide. These engines are specifically designed for the forklift use,with low fuel consumption,less noise and vibration,all these features improve the whole performance of the forklift.
Quick Details
| Rated lifting weight | 3500kg |
|
Load center distance |
500mm |
|
Engine |
A495BPG-13 |
|
Length with fork |
3770mm |
|
Max. lifting height |
4500mm |
|
Engine power |
42kw |
1, One-piece designed of suspension frame.
2, New water tank & cooling system.
3, Larger operation space.Optimized steering wheel, operating handle and pedals.
4, High-efficiency hydraulic system, lower fuel consumption.
5, Enhanced wide view mast improves the work efficiency and operating safety.
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
Model |
CLCPCD35 |
|
Power |
Diesel |
|
Rated lifting weight (kg) |
3500 |
|
Load center distance (mm) |
500 |
|
Tire size (front) |
28x9-15-14PR |
|
Tire size (rear) |
6.50-10-10PR |
|
Length with fork (mm) |
3770 |
|
Length without fork (mm) |
2700 |
|
Width (mm) |
1220 |
|
Overhead guard height (mm) |
2122 |
|
Wheelbase (mm) |
1800 |
|
Front/rear of overhang (mm) |
485/515 |
|
Front/rear wheelbase (mm) |
1210/1240 |
|
Minimum ground clearance (mm) |
150 |
|
Max. lifting height (mm) |
4500 |
|
Adjustment range of fork (mm) |
1060/250 |
|
Minimum turning radius (outside) (mm) |
2573 |
|
Mast tilt (F/R) |
6°/12° |
|
Fork length (mm) |
1070 |
|
Maximum hoisting speed unload/full load (mm/s) |
500/450 |
|
Maximum operating speed unload/full load (Km/h) |
19.5/18 |
|
Grade ability (%) |
≤20 |
|
Maximum traction (full load/unload) (kN) |
20/16 |
|
Operating weight (kg) |
4605 |
|
Engine brand |
XINCHAI |
|
Engine model |
A495BPG-13 |
|
Cylinder number |
4 |
|
Displacement (L) |
2.98 |
|
Rated power/speed (kw/rpm) |
42/2650 |
|
Rated torque/speed (Nm/rpm) |
174/1800-2000 |
|
Operator’s workplace |
With closed cabin and two doors |
