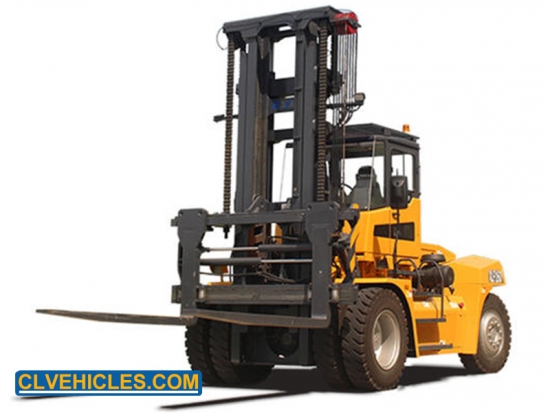

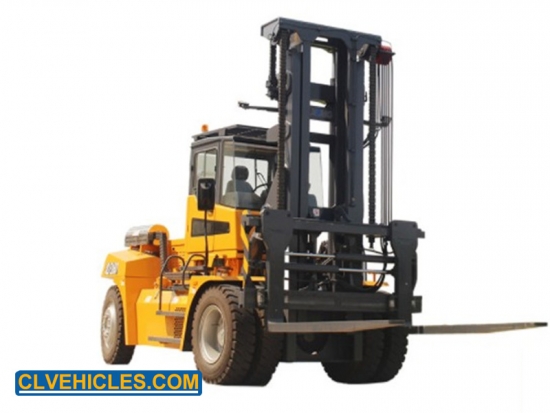

16Tons XCMG XLF160 Coiunter Balanced Fork Lift Truck
XLF160 Coiunter Balanced Fork Lift Truck is a special equipment for material handling and stacking, with a maximum lifting capacity of 16t and a maximum lifting height of 5m. Flexible and efficient operation, can be widely used in storage, logistics and other fields.
Quick Details
| Min. turning diameter | 5.1m |
|
Max. gross weight rating |
16ton |
|
Max. lifting height |
5m |
|
Wheelbase |
3750mm |
|
Engine Type |
QSB6.7 |
|
Engine power |
142kw |
1.Flexible and efficient operation
The machine has compact structure, small size, turning radius of only 5.1m, good site adaptability.
Proprietary flow sharing, fork one-key positioning (optional), micro control and other core technologies, fast operation, good micro movement, high efficiency.
2.Safe and reliable, easy to use
Drawing on years of experience in crane research and development, the control system of industrial products is improved and upgraded to maximize the realization of active protection.
The industry's top configuration, professional matching optimization and systematic evaluation test, effectively ensure the reliability of the product.
3.Economic and environmental protection, cost saving
Drawing lessons from years of wheel crane machine optimization and lightweight design technology, the machine light weight, low fuel consumption.
Proprietary door frame can recover technology and save 20% fuel consumption (optional).
People-oriented, comfortable driving
Professional modeling design and man-machine engineering simulation analysis, reasonable arrangement of various climbing, access and control parts position, to achieve a perfect combination of functionality and aesthetics, the machine beautiful and generous modeling, easy to use.
Panoramic driver's cab, high-power air conditioning, high-definition reversing image (optional), people-oriented detail design, comfortable driving.
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
|
project |
Unit |
Parameters |
|
Parameters of the item |
|
XLF160 Coiunter Balanced Fork Lift Truck |
|
Size parameters |
|
|
|
Over the whole machine |
(mm) |
7995 |
|
The whole machine full width |
(mm) |
2590 |
|
The whole machine all high |
(mm) |
4190 |
|
The wheelbase |
(mm) |
3750 |
|
Wheel base |
(mm) |
1857/2011（Front/Rear） |
|
The weight parameter |
|
|
|
Vehicle ready mass |
(kg) |
21890 |
|
Light axle weight |
(kg) |
11540/10350 |
|
Dynamic parameters |
|
|
|
Engine type |
|
Cummins QSB6.7 |
|
Engine rating |
(kw) |
142 |
|
Engine rated torque |
(N.m) |
930 |
|
Engine discharge |
|
U.S.EPA Tier 3EU Stage |
|
Driving parameters |
|
|
|
driving |
|
|
|
Top speed |
(km/h) |
32/30（No load/full load） |
|
turn |
|
|
|
Minimum turning diameter |
(m) |
10.2 |
|
Maximum climb |
|
0.23 |
|
Minimum ground clearance |
(mm) |
260 |
|
Close to the corner |
(°) |
- |
|
Angle of departure |
(°) |
- |
|
Braking distance |
(m) |
6.3 |
|
Job performance parameter |
|
|
|
Maximum gross weight rating |
(t) |
16 |
|
Maximum lifting height |
(mm) |
5000 |
|
Maximum lifting speed (no load/full load) |
(m/min) |
450/400 |
|
Maximum descending speed (no load/full load) |
(m/min) |
400/400 |
|
Ability to lift |
(层) |
- |
With strong power and rich attachments, skid steer loader can better adapt to the operations in narrow space and is an ideal tool for road construction, municipal maintenance.
Guide rail frame, attached wall and mainstream manufacturers in the industry can be interchangeable butt, universal.
New energy-saving hydraulic system, lower operation fuel consumption, better fretting property and more perfect control experience
The maximum lifting capacity is 8t, and the stacking capacity is 7 layers
The maximum lifting capacity is 45t, and the stacking capacity is 5 layers.
XCT16 has four 12-section cross-section of the new main boom, the main arm length of 32m, jib length of 8.15m.
