ISUZU GIGA VC61 460hp 10wheeler Euro5 Tractor Head
Tractor truck head VC61 GIGA heavy trucks isuzu engine with great price
This wrecker has the functions of lifting, pulling, lifting, etc. It is convenient, quick, good-looking, safe and reliable. This truck wrecker is widely used in highways, public security traffic police, airports, terminals, auto repair industry and highway companies, etc.
Wrecker truck equipped with lifting winch device and wheel bracket which can lift, towing, back load and transport.Widely used in road, police traffic, airports, docks, auto repair company, industry and highway departments, timely, fast clean-up accident, failure, illegal and other vehicles.
Road wrecker is used for safety salvage of vehicles subject to city road, suburb way, highway, airport and bridge road. It is suitable for medium and small-sized cargos, cars and other special vehicles, which are allowed within the technical parameters of this kind
The tow wrecker is called the road wrecker, also known as road rescue vehicle. It has many functions such as lifting, pulling and lifting traction.
The INT series is out integrated line of tow trucks commonly called wreckers. We have a wide range of products with 6 different models ranging for the small 3 ton to the massive 60 ton with a 3 stage boom.
Reliable cold start performance with intake preheating, even at -35°C low temperature status.
Brand:
CLVEHICLES.COMModel No.:
CL20200450Minimum Order Quantity:
1 UnitPrice:
USD 39,939 FOB ShanghaiPayment Terms:
T/T, L/C, Western UnionDelivery Time:
25~35 days after we get the depositShipping:

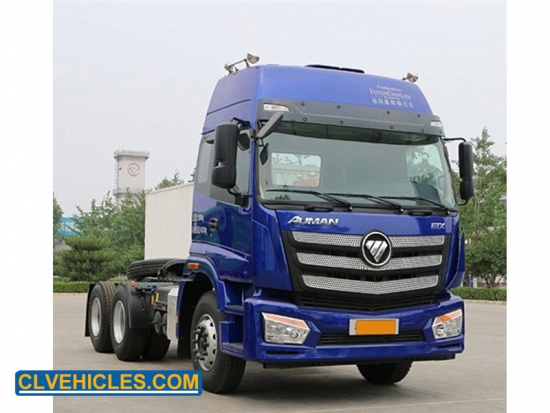

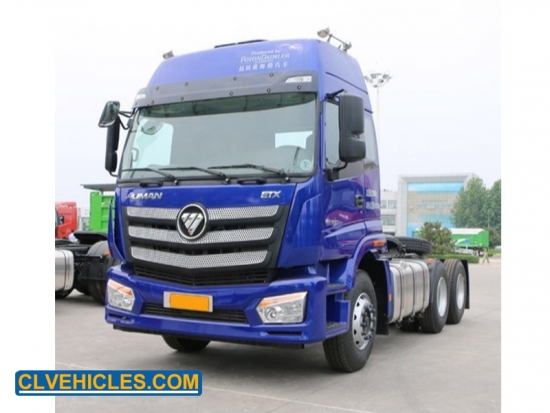

Ro-Ro/Bulk cargo/Container shipment / SKD / CKD / etcFOTON AUMAN 6X4 380HP Heavy Duty Tow Tractor Truck Head For Sale

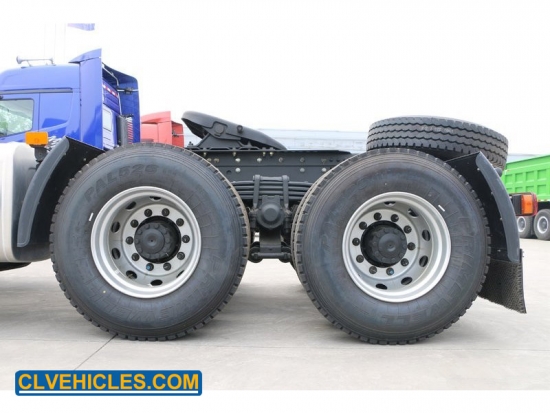

Rear axle provides high torque output and a
wide ratio range. Integrated main reducer housing, secure light weight, high
strength and good sealing performance. Patented lubrication pump technology for
middle axle and oil lubrication on main components, will efficiently prevent
burn-out of bearings.
Quick Details
Condition | NEW |
Driving Wheels | 6x4 |
Emission Standard |
EURO III |
Chassis Brand |
FOTON |
Transmission TypeManual | Manual |
Fuel Type |
Diesel |
Engine |
WP10 380.E32 |
Applications
A tractor is a
general large truck or semi-trailer that is towed by a tool between the front
and the car. That is, the front of the car can be pulled out of the original
car and pulled out of other cars. The car can also be pulled away from the
original head by other fronts. . The front of the car with the driving ability
is called the tractor, and the car without the traction drive capability is
called the trailer. The trailer is towed by the tractor. There are two ways to
connect the tractor to the trailer: the first is that the front half of the
trailer is placed on the traction saddle above the rear section of the tractor,
and the bridge behind the tractor is subjected to a part of the weight of the
trailer, which is half-hook; The front end of the trailer is connected to the
rear end of the tractor. The tractor only provides the forward pulling force
and drags the trailer to go, but does not bear the downward weight of the
trailer. This is the full hanging.
Competitive Advantage
1. Anti-skid: prevent the idling of the driving wheel when the vehicle is running on the slippery road, such as snow, so that the vehicle can start and accelerate smoothly. Especially in snow or muddy roads, traction control system can ensure smooth acceleration performance, to prevent the vehicle due to the driving wheel slip and roll sideways or tail.
2. Flexible: in the traction of the car so that the car train has a good mobility flexibility.
3. Reliable work: ensure that the traction truck and trailer are connected reliably, conveniently and quickly.
4. Stable: traction can be smoothly transferred to the trailer, impact load has a certain buffer effect.
Production line
Customer Services
Pre sale service
--- Technical communication with engineer
--- Factory and workshop visit
--- Making design drawings
After Sale Service
--- Overseas installation & commissioning
--- Overseas and spare parts support
--- Technical and spare parts support
Truck
According to your request, choose good chassis and refit it to truck.
Upper Body
design function parts.
Customization
Spare Parts
on trucks as tank and box.
Supply only upper body without chassis. According to your chassis drawing,
Communicate with engineer,making design drawings and produce customized products.
Supply all kinds of spare parts on chassis and upper body,replace main parts
Product Parameters
Truck model |
ETX Tractor Truck |
||
Cab |
High proof cab with two sleeper, power window, with air conditioning |
||
Driving Type |
6*4 Left hand driving or right hand driving |
||
Max Speed (km/h) |
95 |
||
Overall dimension(mm) |
6907*2495*3690 |
||
GVW(kg) |
25000 |
||
Mass in working order(kg) |
8800 |
||
Wheelbase(mm) |
3300+1350 |
||
F/R track base(mm) |
2040/1850 |
||
F/R overhang(mm) |
1485/790 |
||
Approach/Departure Angel |
27/45 |
||
Tire |
12R22.5 (10+1) |
||
Clutch |
∮430 diaphragm spring clutch |
||
Steering |
AM75L, Hydraulic steering with power assistance |
||
Gear box |
12JSD180TA, ( 12-speed front gear+ 2-speed reverse gear) |
||
Bridge |
Front axle |
6500kgs |
|
Rear axle |
13,000kgs |
||
Engine |
Model |
WP10.380E32 |
|
Fuel Type |
Diesel |
||
Type |
In-line, Six-cylinder, Four-stroke, Water-cooled, Direct Injection, Turbocharged |
||
Exhaust(ml) |
9726 |
||
Max output power/rotate speed (hp /rpm ) |
380HP/2200rpm |
||
Max torque/rotate speed(N.m/rpm) |
1460Nm @ 1200-1600rpm |
||
Braking system |
Service Brake |
dual circuit compressed air brake |
|
Park Brake |
spring energy, compressed air operating on rear wheels |
||
Auxiliary brake |
engine exhaust brake |
||
Electric system |
Operating voltage: 24 V, negative grounded; Starter: 24 V, 5.4 Kw, Alternator: 3-phrase, 28 V, 1000 W; Batteries: 2 x 12 V, 165 Ah; |
||
Standard equipment |
400L Fuel Tank / Traction base :90# / 50# |
